RT28VG017C

2.8" TFT LCD module with 480x640 resolution for standard supply or customized display assemblies.

Format 2.8" TFT LCD module

Form Portrait rectangle

Resolution 480x640

Interface RGB

Touch No

Compare catalog

RT28VG017C display module

Core specification

Engineering snapshot.

Model: RT28VG017C
Screen size: 2.8"
Display form: Portrait rectangle
Resolution: 480x640
Display mode: Transmissive TFT
Interface: RGB
Brightness: 230cd/㎡
Touch: No
Temperature: -10℃~60℃
Viewing direction: All o'clock
Outline dimension: 50.00(H)×69.20(V)×2.35(T)mm
Active area: 43.20(H)×57.60(V)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 1000
Backlight: 4LEDS
Pixel pitch: 480(RGB)×640
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 31pins
Logic voltage: 2.5V~3.3V
Power: 280mW

Product views

Front and back module views.

RT28VG017C Front view

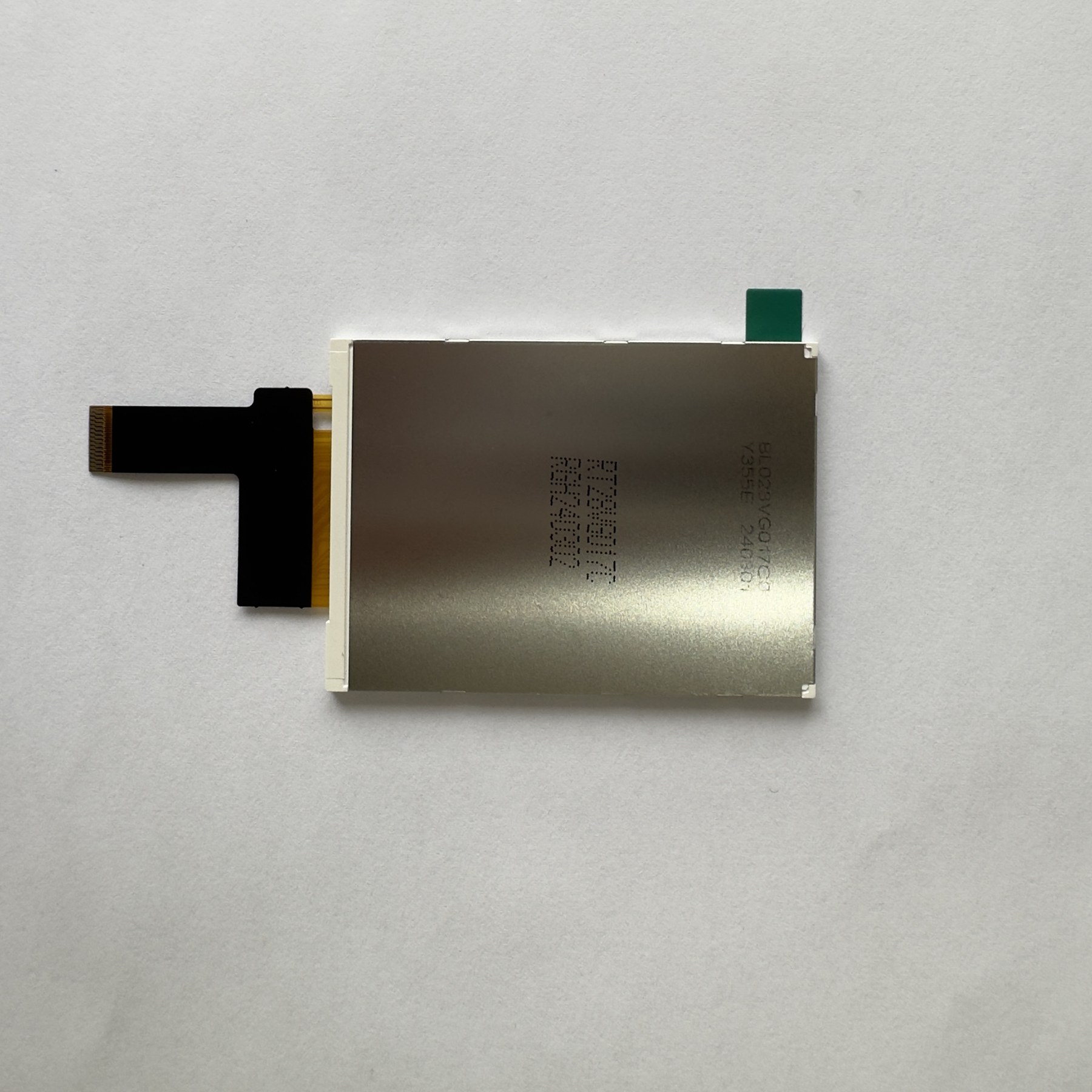

RT28VG017C Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
