2.8-3.5 inch

RT32WQ001A

3.2" TFT LCD module with 240x400 resolution for standard supply or customized display assemblies.

Format 3.2" TFT LCD module

Form Wide rectangle

Resolution 240x400

Interface MCU 8BIT

Touch No

Compare catalog

RT32WQ001A display module

Core specification

Engineering snapshot.

Model: RT32WQ001A
Screen size: 3.2"
Display form: Wide rectangle
Resolution: 240x400
Display mode: Transmissive TFT
Interface: MCU 8BIT
Brightness: 450cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: 12 o'clock
Outline dimension: 48.40(H)×81.50(V)×2.77(T)mm
Active area: 48.60(W)×64.80(H)mm
Driver IC: ILI9327
Response time: 25ms
Contrast ratio: 1200
Backlight: 6LEDS
Pixel pitch: 240(RGB)×400
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 24pins
Logic voltage: 2.5V~3.3V
Power: 420mW

Product views

Front and back module views.

RT32WQ001A Front view

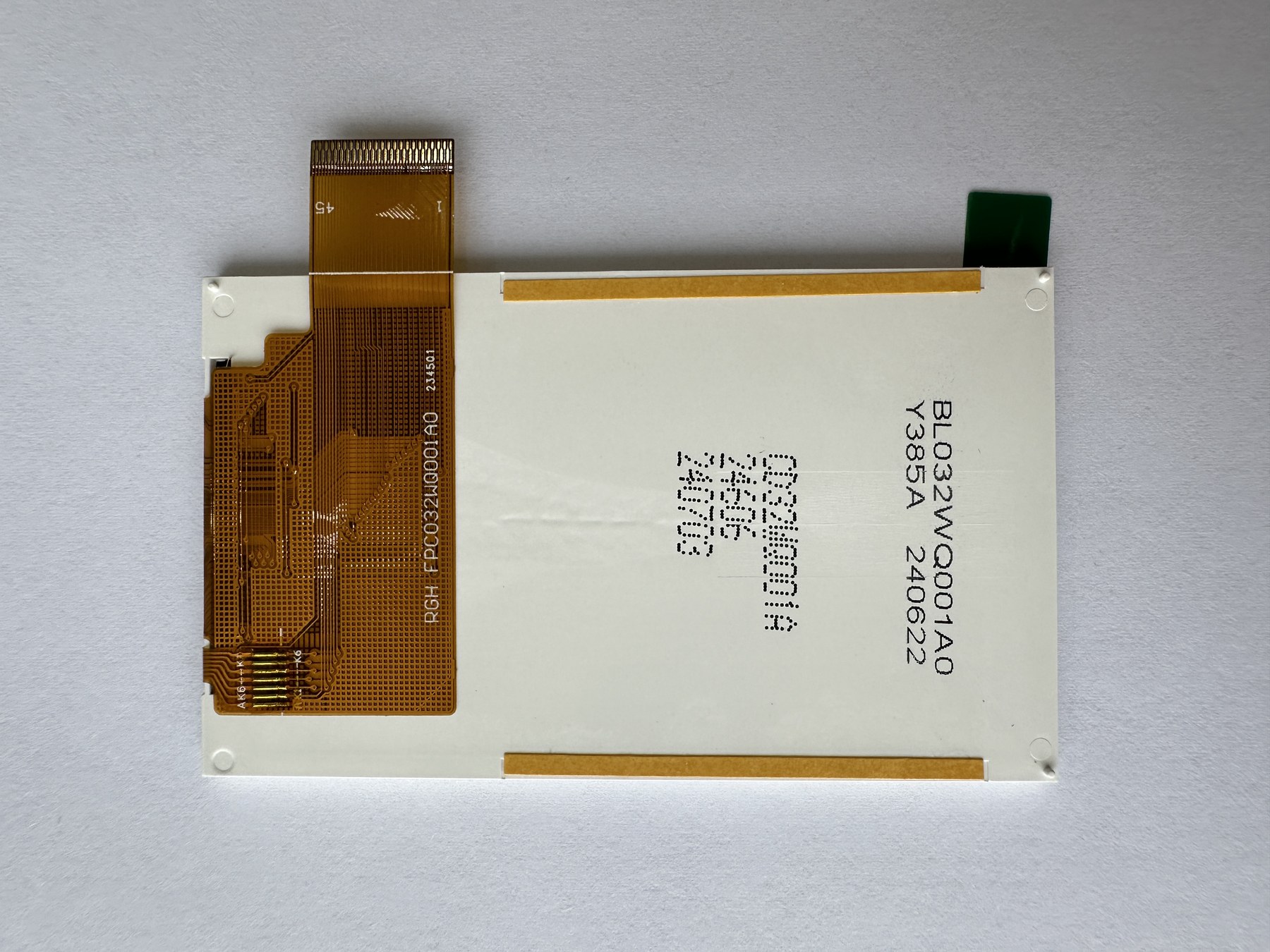

RT32WQ001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
