RT30HD050B

3" TFT LCD module with 360x640 resolution for standard supply or customized display assemblies.

Format 3" TFT LCD module

Form Wide rectangle

Resolution 360x640

Interface RGB

Compare catalog

RT30HD050B display module

Core specification

Engineering snapshot.

Model: RT30HD050B
Screen size: 3"
Display form: Wide rectangle
Resolution: 360x640
Display mode: Transmissive TFT
Interface: RGB
Brightness: 370cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 43.04(H)×74.91(V)×2.5(T)mm
Active area: 36.72(H)×65.28(V)mm
Driver IC: ST7701S
Response time: 30ms
Contrast ratio: 800
Backlight: 4LEDS
Pixel pitch: 360(RGB)×640
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.6V
Power: 280mW

Product views

Front and back module views.

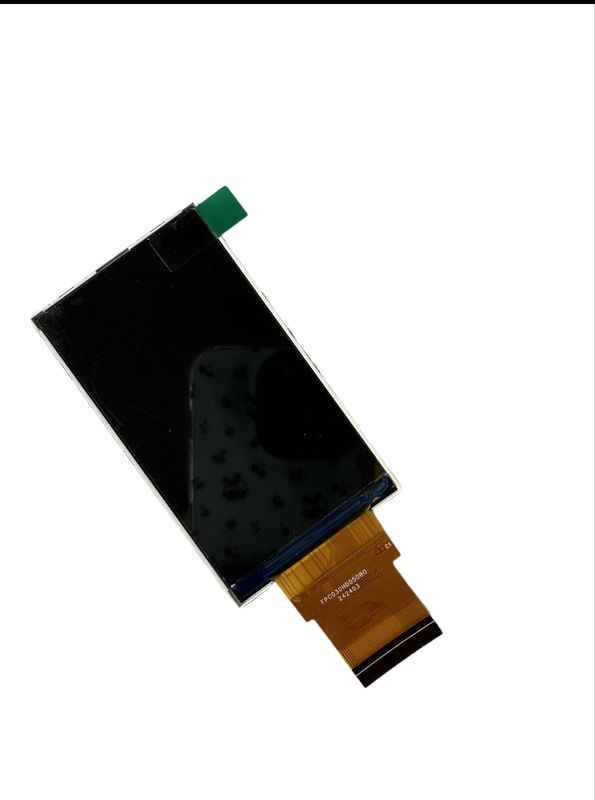

RT30HD050B Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
