RT30HD012A

3" TFT LCD module with 360x640 resolution for standard supply or customized display assemblies.

Format 3" TFT LCD module

Form Wide rectangle

Resolution 360x640

Interface RGB/MIPI

Compare catalog

RT30HD012A display module

Core specification

Engineering snapshot.

Model: RT30HD012A
Screen size: 3"
Display form: Wide rectangle
Resolution: 360x640
Display mode: Transmissive TFT
Interface: RGB/MIPI
Brightness: 580cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 42.64(W)×74.51(H)×2.15(T)mm
Active area: 36.72(W)×65.28(H)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 500
Backlight: 6LEDS
Pixel pitch: 360(RGB)×640
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

RT30HD012A Front view

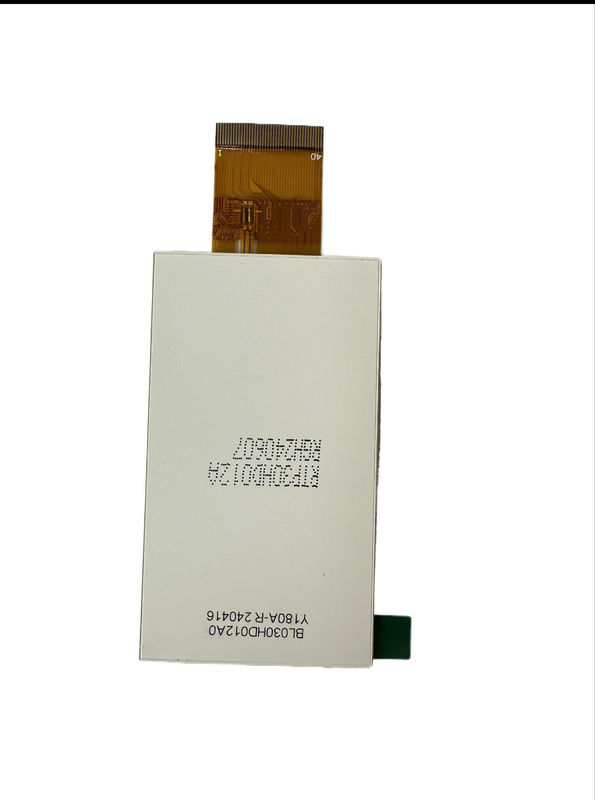

RT30HD012A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
