2.8-3.5 inch

RT35HD006A

3.5" TFT LCD touch module with 720x1280 resolution for standard supply or customized display assemblies.

Format 3.5" TFT LCD touch module

Form Wide rectangle

Resolution 720x1280

Interface MIPI

Touch No

Compare catalog

RT35HD006A display module

Core specification

Engineering snapshot.

Model: RT35HD006A
Screen size: 3.5"
Display form: Wide rectangle
Resolution: 720x1280
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 410 cd/m²
Touch: No
Temperature: -20°C to 70°C
Viewing direction: ALL o’clock
Outline dimension: 46.00(H)×85.87(V)×1.52(T)mm
Active area: 43.20(H)×78.72(V)mm
Driver IC: ST7703
Response time: 35 ms
Contrast ratio: 1500
Backlight: 10LEDs
Pixel pitch: 720(RGB)×1280
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 560mw

Product views

Front and back module views.

RT35HD006A Front view

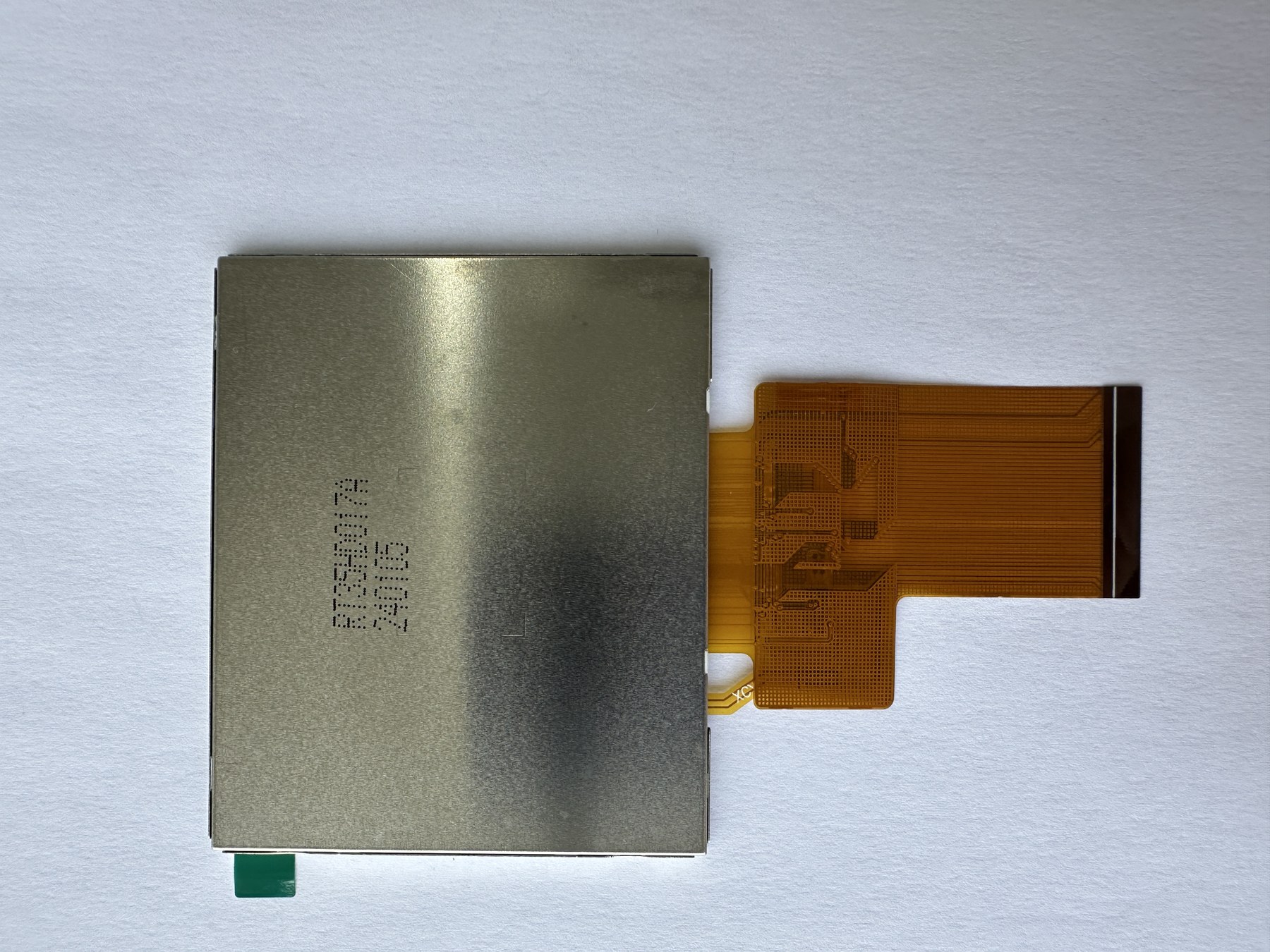

RT35HD006A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
