RTP55HD009A

5.5" TFT LCD touch module with 720x1280 resolution for standard supply or customized display assemblies.

Format 5.5" TFT LCD touch module

Form Wide rectangle

Resolution 720x1280

Interface MIPI 4T

Touch yes

Compare catalog

RTP55HD009A display module

Core specification

Engineering snapshot.

Model: RTP55HD009A
Screen size: 5.5"
Display form: Wide rectangle
Resolution: 720x1280
Display mode: Transmissive TFT
Interface: MIPI 4T
Brightness: 330cd/㎡
Touch: yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 76.00(H)×144.20(V)×3.13(T)mm
Active area: 68.04(H)×120.96(V)mm
Driver IC: ST7703-V1-G5-D
Touch IC: FT6336U
Response time: 25ms
Contrast ratio: 1000
Backlight: 14LEDs
Pixel pitch: 720(RGB)×1280
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 29pins
Logic voltage: 2.5V~3.3V
Power: 980mW

Product views

Front and back module views.

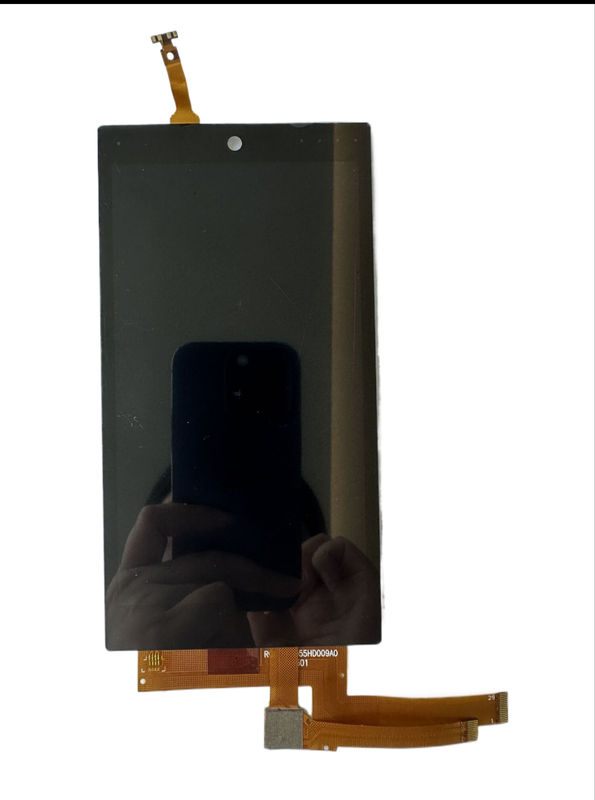

RTP55HD009A Front view

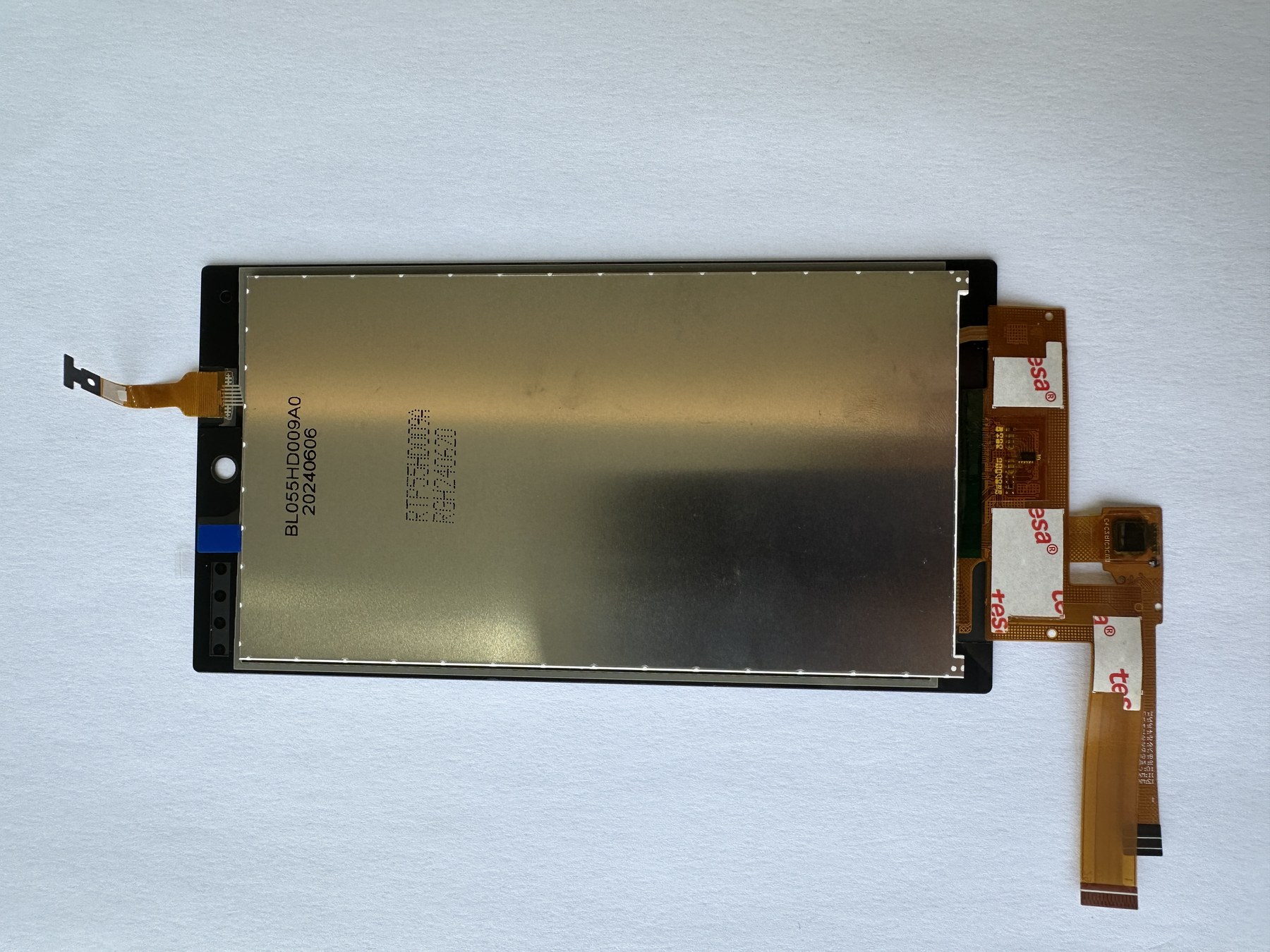

RTP55HD009A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
