2.8-3.5 inch

RTP35HD012A

3.5" TFT LCD touch module with 720x1280 resolution for standard supply or customized display assemblies.

Format 3.5" TFT LCD touch module

Form Wide rectangle

Resolution 720x1280

Interface MIPI

Touch Yes

Compare catalog

RTP35HD012A display module

Core specification

Engineering snapshot.

Model: RTP35HD012A
Screen size: 3.5"
Display form: Wide rectangle
Resolution: 720x1280
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 380cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 50.7(H)×91.72(V)×3.37(T)mm
Active area: 43.2(H)×78.72(V)mm
Driver IC: ST7703
Touch IC: CST18858
Response time: 35ms
Contrast ratio: 1500
Backlight: 10LEDs
Pixel pitch: 720(RGB)×1280
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 28pins
Logic voltage: 2.5V~3.3V
Power: 700mW

Product views

Front and back module views.

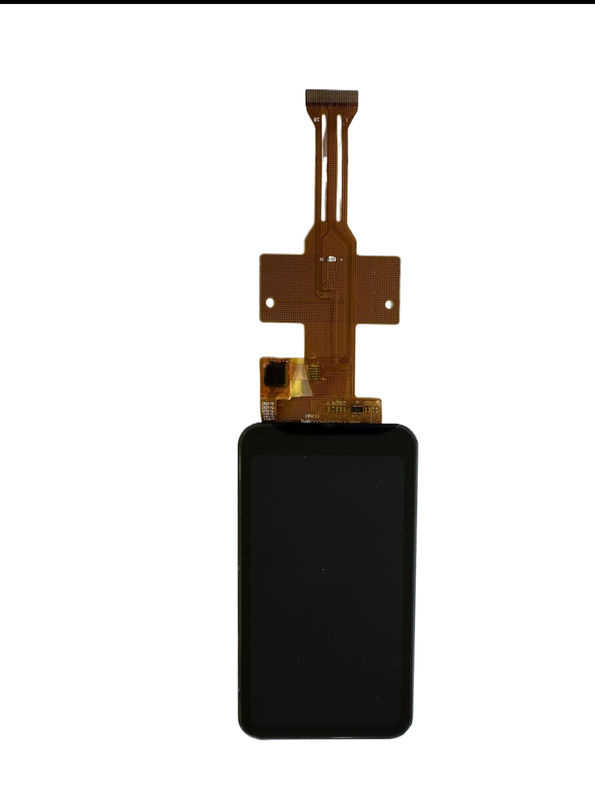

RTP35HD012A Front view

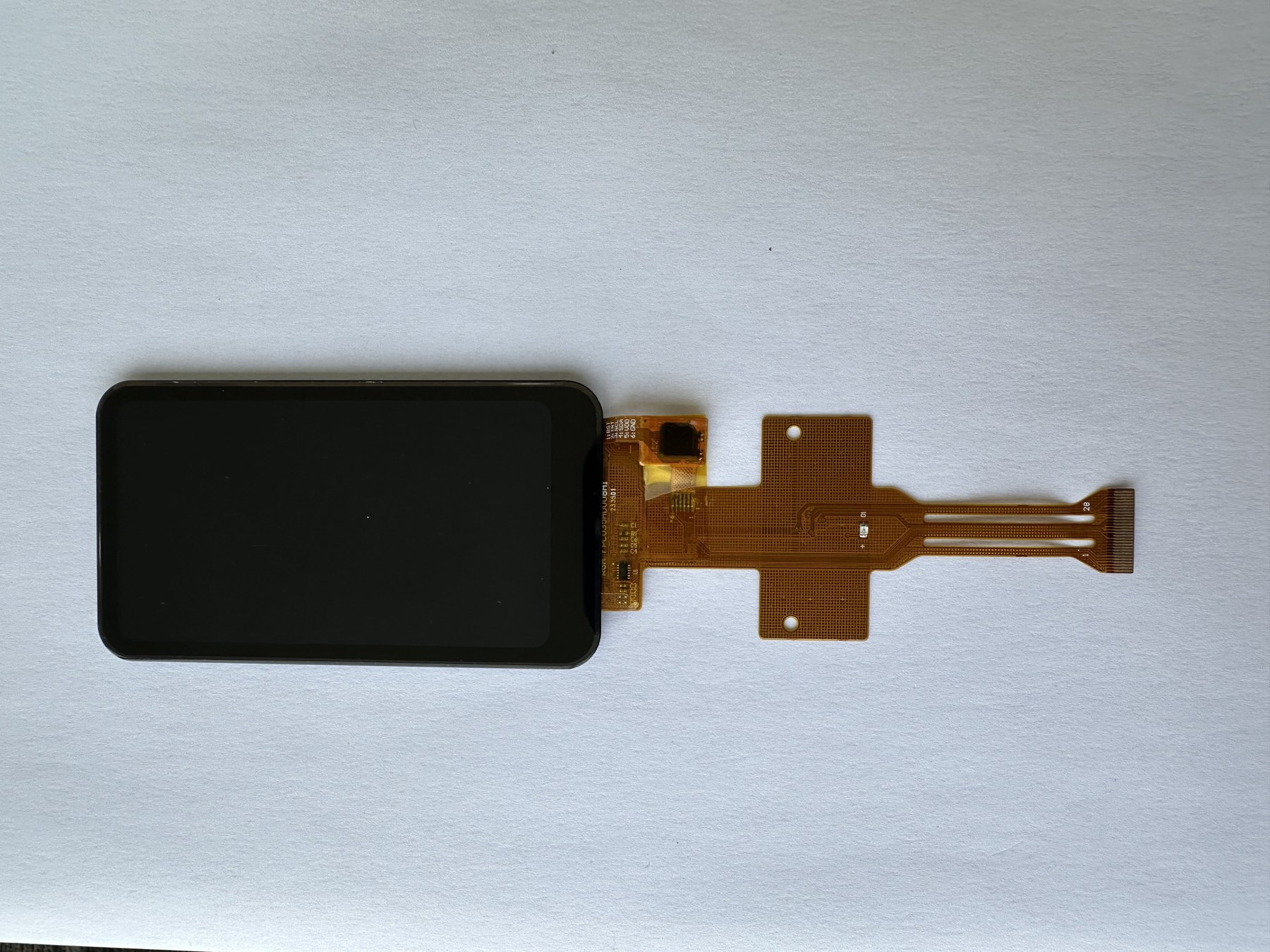

RTP35HD012A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
