RT35QV006B

3.5" TFT LCD module with 320x240 resolution for standard supply or customized display assemblies.

Format 3.5" TFT LCD module

Form Landscape rectangle

Resolution 320x240

Interface RGB

Compare catalog

RT35QV006B display module

Core specification

Engineering snapshot.

Model: RT35QV006B
Screen size: 3.5"
Display form: Landscape rectangle
Resolution: 320x240
Display mode: Transmissive TFT
Interface: RGB
Brightness: 300cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 76.74(W)×63.74(H)×3.29(T)mm
Active area: 70.08(W)×52.56(H)mm
Driver IC: ST7272A
Response time: 16ms
Contrast ratio: 1200
Backlight: 6LEDS
Pixel pitch: 320(RGB)×240
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 54pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

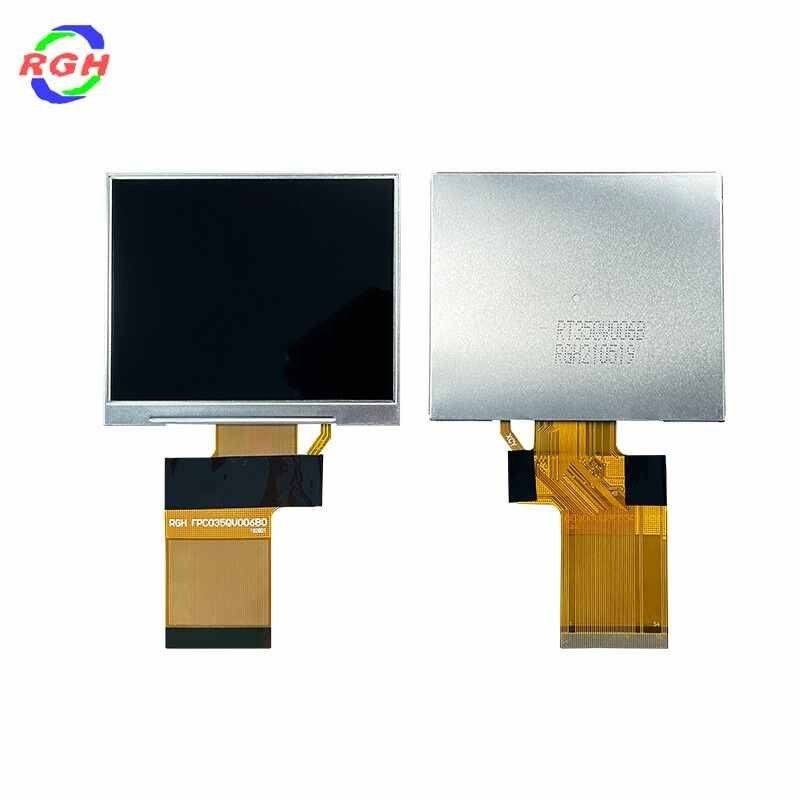

RT35QV006B Front view

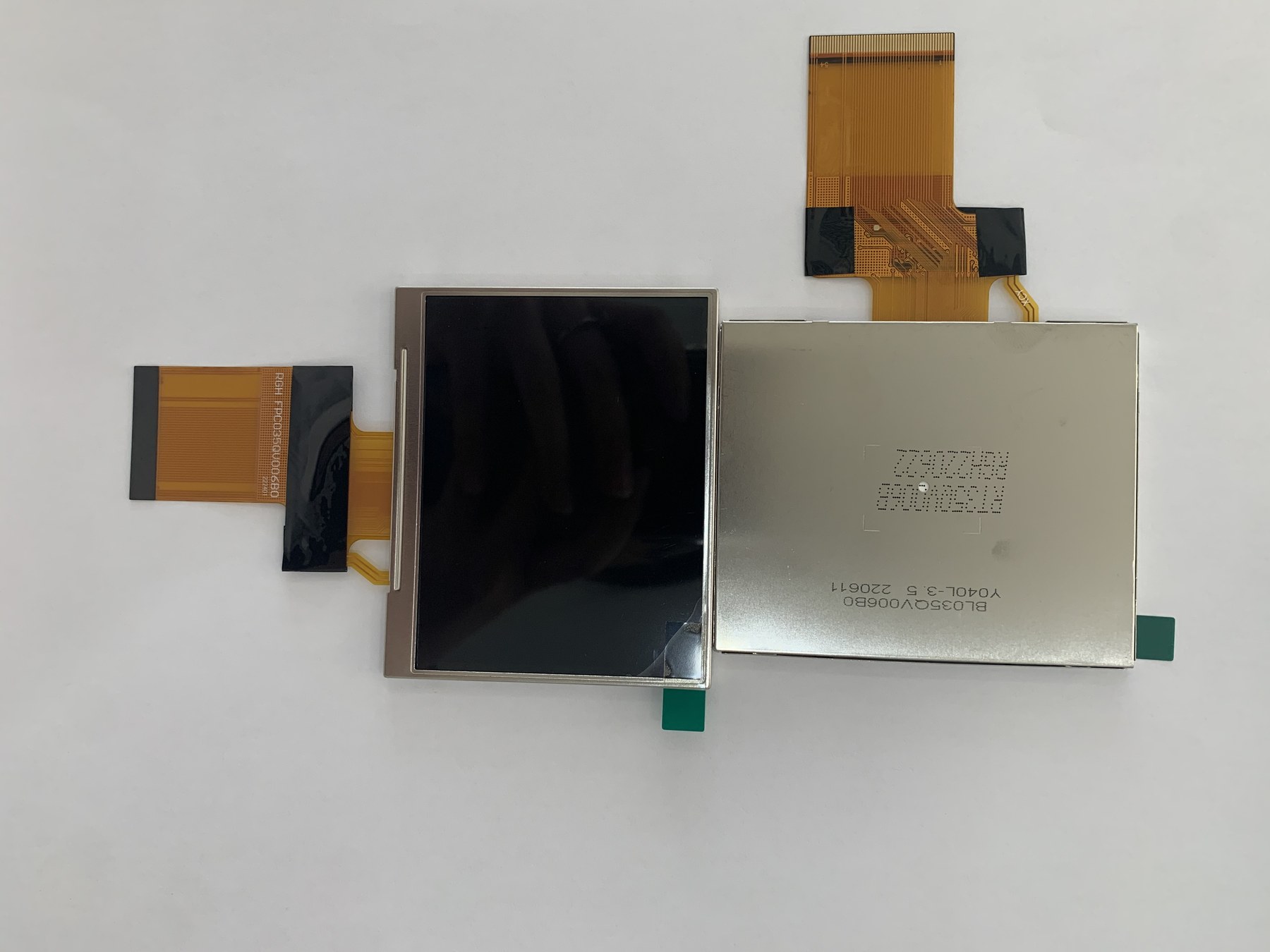

RT35QV006B Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
