RT39HD001A

3.9" TFT LCD module with 800x220 resolution for standard supply or customized display assemblies.

Format 3.9" TFT LCD module

Form Bar / stretched

Resolution 800x220

Interface RGB

Touch NO

Compare catalog

RT39HD001A display module

Core specification

Engineering snapshot.

Model: RT39HD001A
Screen size: 3.9"
Display form: Bar / stretched
Resolution: 800x220
Display mode: Transmissive TFT
Interface: RGB
Brightness: 300cd/㎡
Touch: NO
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 103.20(H)×34.85(V)×2.50(T)mm
Active area: 95.04(H)×24.68(V)mm
Driver IC: ST72568
Response time: 30ms
Contrast ratio: 1200
Backlight: 10LEDs
Pixel pitch: 800(RGB)×220
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 3.1V~3.6V
Power: 700mW

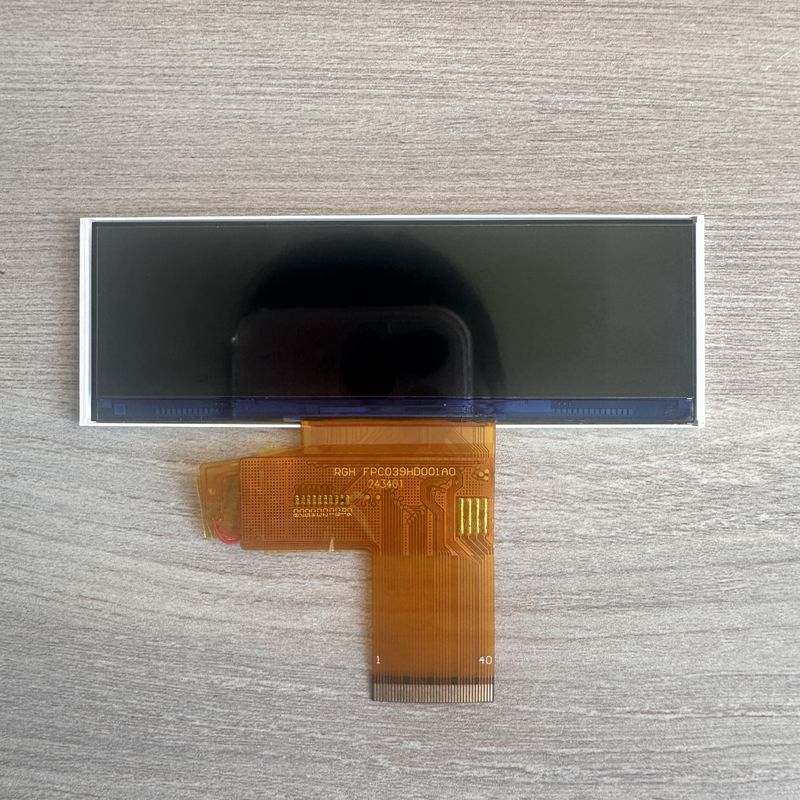

Product views

Front and back module views.

RT39HD001A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
