2.1-2.7 inch

RT27LW024E

2.7" TFT LCD module with 960x240 resolution for standard supply or customized display assemblies.

Format 2.7" TFT LCD module

Form Bar / stretched

Resolution 960x240

Interface MCU

Touch No

Compare catalog

RT27LW024E display module

Core specification

Engineering snapshot.

Model: RT27LW024E
Screen size: 2.7"
Display form: Bar / stretched
Resolution: 960x240
Display mode: Transmissive TFT
Interface: MCU
Brightness: 280cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: 6 o'clock
Outline dimension: 45.8(H)×62.7(W)×2.36(T)mm
Active area: 40.5(W)×54(H)mm
Driver IC: ILI8961
Response time: 50ms
Contrast ratio: 500
Backlight: 2LEDS
Pixel pitch: 960(RGB)×240
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 39pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

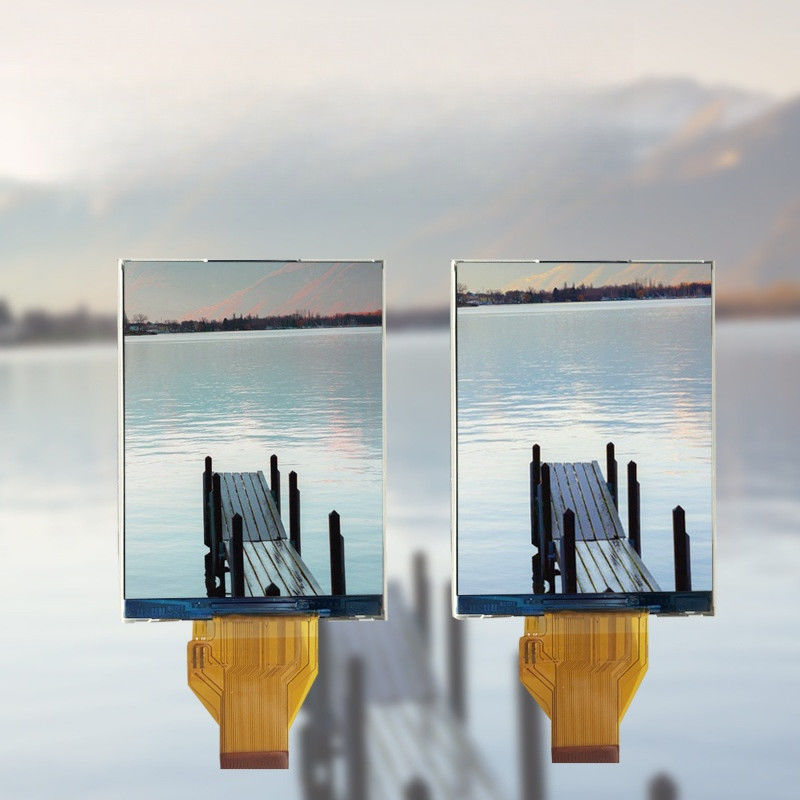

RT27LW024E Front view

RT27LW024E Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
