3.6-5.0 inch

RT50FHD001A

5" TFT LCD module with 1080x1080 resolution for standard supply or customized display assemblies.

Format 5" TFT LCD module

Form Round

Resolution 1080x1080

Interface MIPI

Compare catalog

RT50FHD001A display module

Core specification

Engineering snapshot.

Model: RT50FHD001A
Screen size: 5"
Display form: Round
Resolution: 1080x1080
Display mode: Transmissive TFT
Interface: MIPI
Temperature: -20℃~60℃
Viewing direction: All o'clock
Outline dimension: 132.20(H)×136.53(V)×1.98(T)mm
Active area: 127.00(H)×127.00(V)mm
Driver IC: HX8399C
Response time: ≤40ms
Contrast ratio: 1300
Backlight: 6LEDS
Pixel pitch: 1080(RGB)×1080
Pixel configuration: circle
Display color: 262K color
Pin count: 48pins
Logic voltage: 2.5V~3.6V
Power: 420mW

Product views

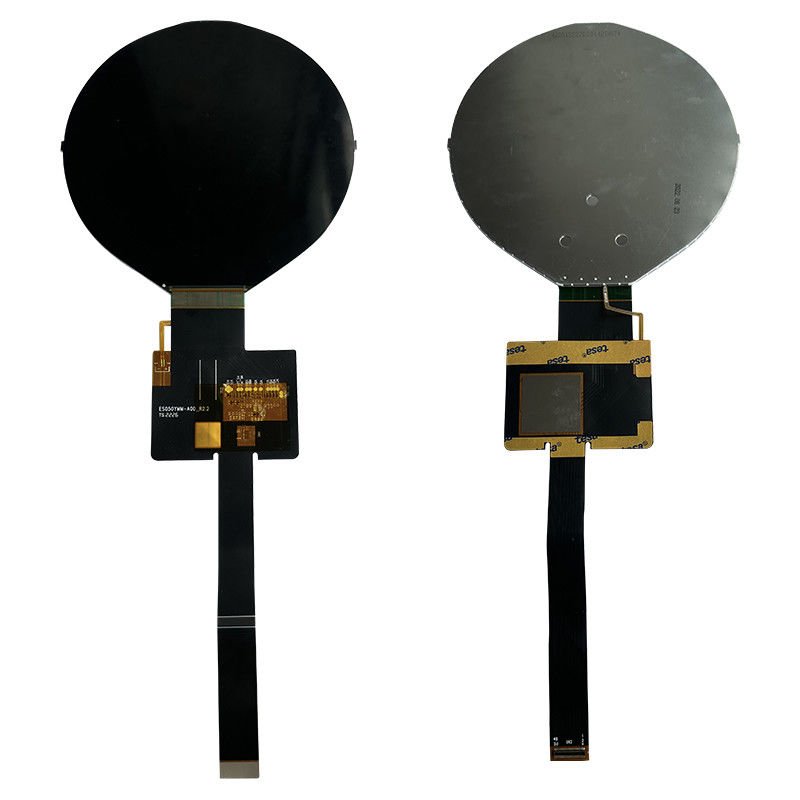

Front and back module views.

RT50FHD001A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
