RT55HD011A

5.5" TFT LCD module with 720x1440 resolution for standard supply or customized display assemblies.

Format 5.5" TFT LCD module

Form Wide rectangle

Resolution 720x1440

Interface MIPI

Compare catalog

RT55HD011A display module

Core specification

Engineering snapshot.

Model: RT55HD011A
Screen size: 5.5"
Display form: Wide rectangle
Resolution: 720x1440
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 1050cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 65.02(H)×131.43(V)×3.06(T)mm
Active area: 61.88(H)×123.77(V)mm
Driver IC: ST7703I-G5-DP
Response time: 30ms
Contrast ratio: 1500
Backlight: 14LEDs
Pixel pitch: 720(RGB)×1440
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 980mW

Product views

Front and back module views.

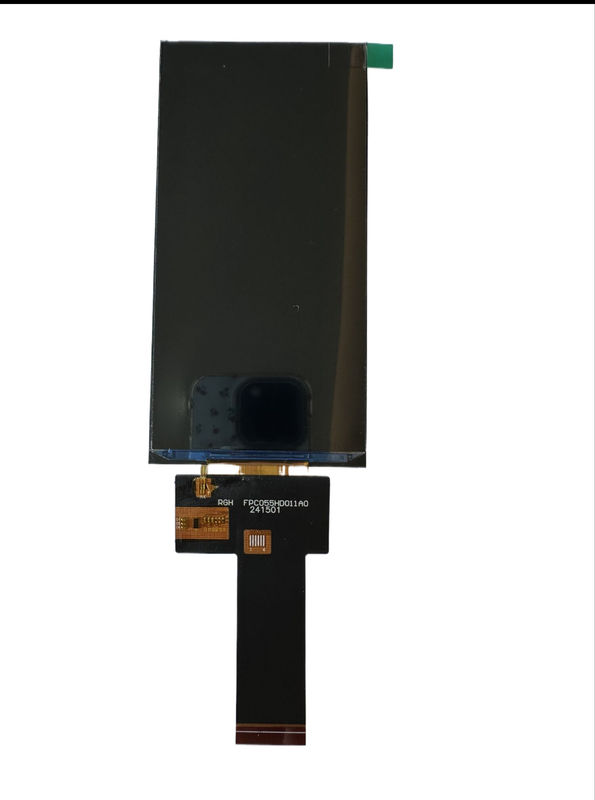

RT55HD011A Front view

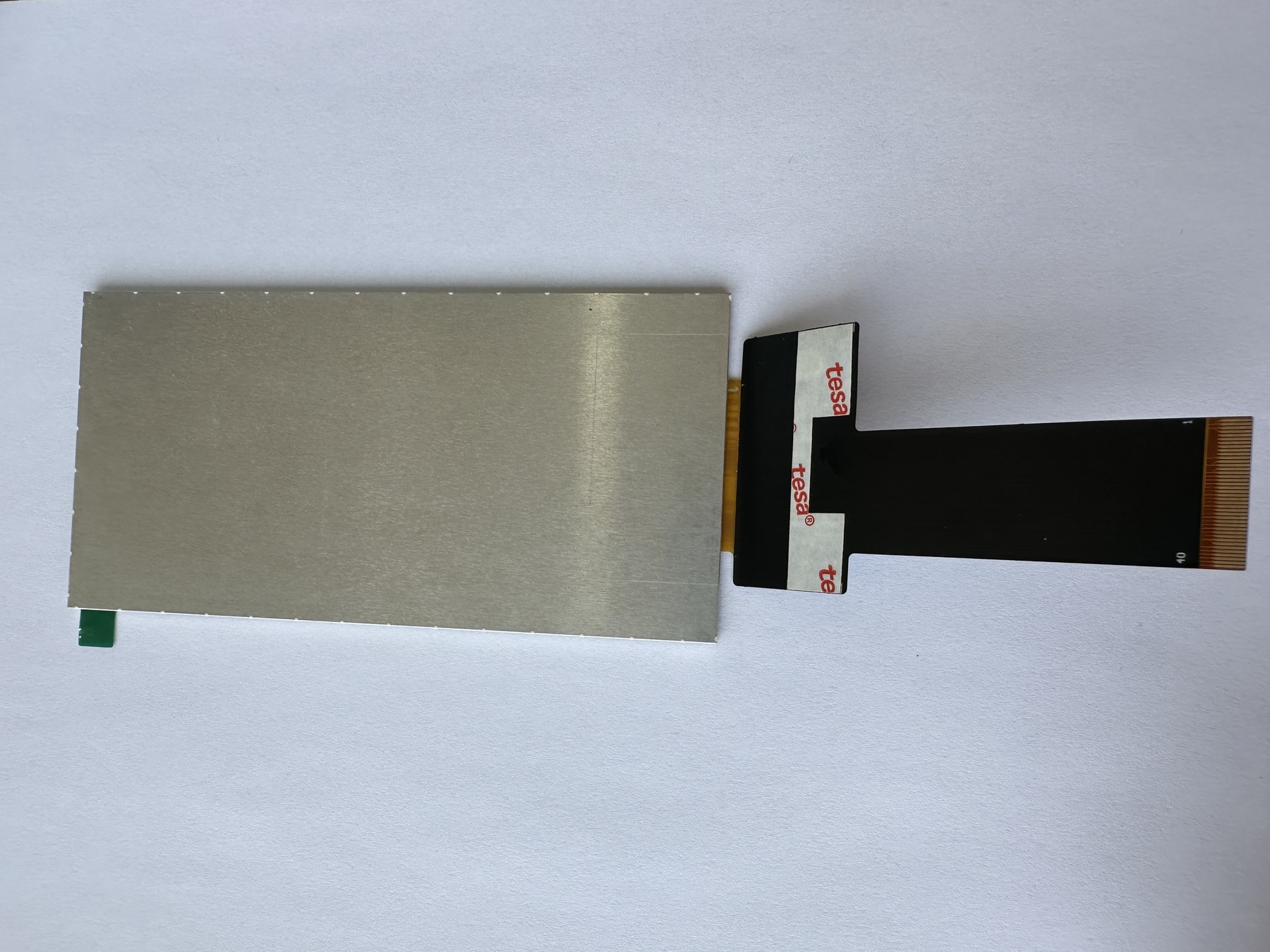

RT55HD011A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
