RT70HD005A

7" TFT LCD module with 1024x600 resolution for standard supply or customized display assemblies.

Format 7" TFT LCD module

Form Wide rectangle

Resolution 1024x600

Interface LVDS

Compare catalog

RT70HD005A display module

Core specification

Engineering snapshot.

Model: RT70HD005A
Screen size: 7"
Display form: Wide rectangle
Resolution: 1024x600
Display mode: Transmissive TFT
Interface: LVDS
Brightness: 400cd/㎡
Temperature: -20℃~60℃
Viewing direction: All o'clock
Outline dimension: 164.90(W)×100.00(H)×3.50(T)mm
Active area: 154.08(W)×85.92(H)mm
Driver IC: EK73215/EK79001
Response time: 30ms
Contrast ratio: 800
Backlight: 27LEDs
Pixel pitch: 1024(RGB)×600
Pixel configuration: Rectangle
Display color: 17.6M
Pin count: 40pins
Logic voltage: 2.5V~3.6V

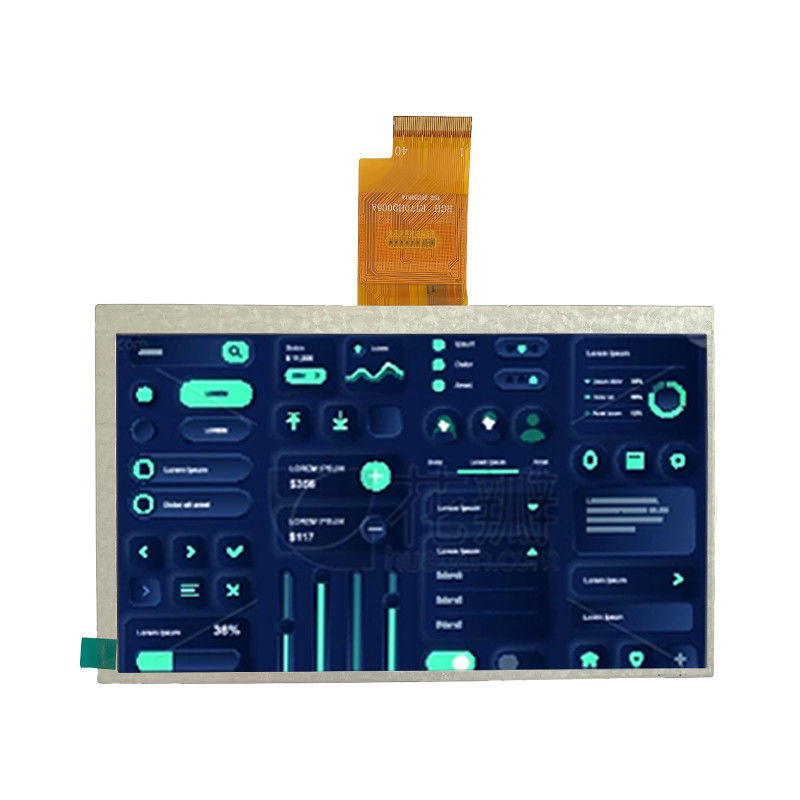

Product views

Front and back module views.

RT70HD005A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
