Core specification
Engineering snapshot.

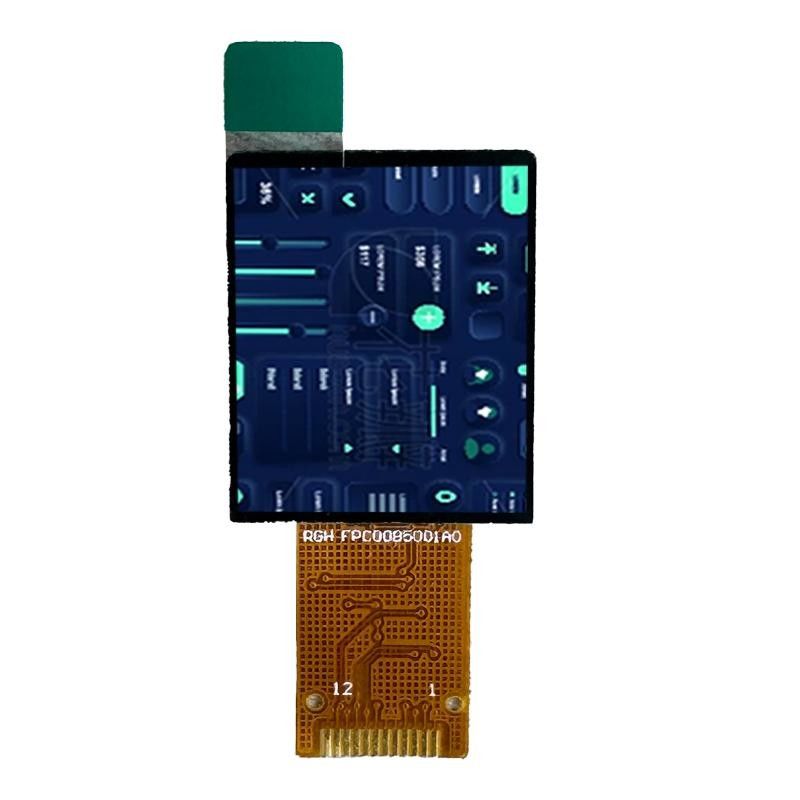

- Model
- RTP085001B
- Screen size
- 0.85"
- Display form
- Compact rectangle
- Resolution
- 128x128
- Display mode
- Transmissive TFT
- Interface
- SPI
- Brightness
- 450 cd/m²
- Touch
- Yes
- Temperature
- -10°C to 60°C operating
- Viewing direction
- All o'clock
- Outline dimension
- 21.30(H)*25.75(V)*2.49(T)
- Active area
- 15.21(H) X15.21(V)
- Driver IC
- ST7735S
- Response time
- 30ms
- Contrast ratio
- `1200
- Backlight
- LED
- Pixel pitch
- 128*128
- Pixel configuration
- Square
- Display color
- 262K
- Pin count
- 12 pins
- Logic voltage
- 2.5V-3.3V
- Power
- 70 mW typical
