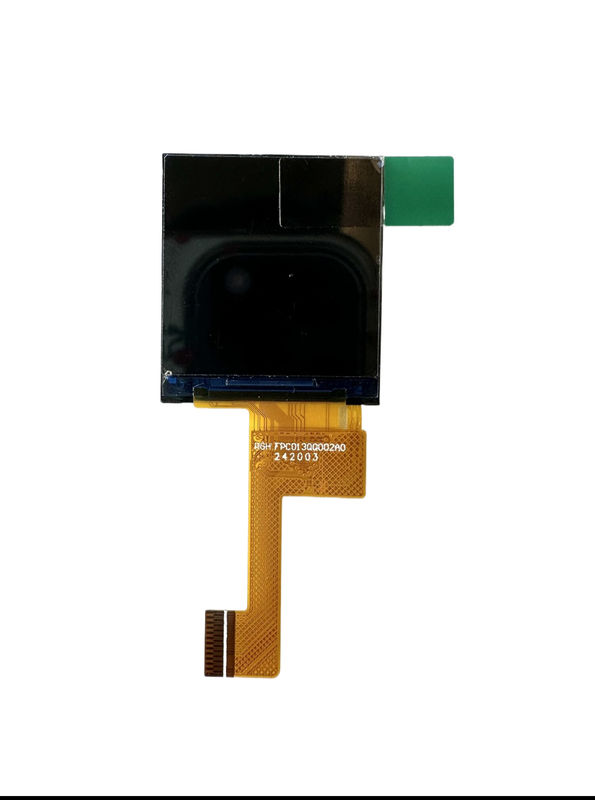

RT13QQ002A

1.3" TFT LCD module with 128x128 resolution for standard supply or customized display assemblies.

Format 1.3" TFT LCD module

Form Compact rectangle

Resolution 128x128

Interface MCU

Touch No

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT13QQ002A
Screen size: 1.3"
Display form: Compact rectangle
Resolution: 128x128
Display mode: TFT LCD
Interface: MCU
Brightness: 700 cd/m²
Touch: No
Temperature: -20°C to 70°C operating; -30°C to 80°C storage
Viewing direction: All o'clock
Outline dimension: 27.50(H) × 27.50(W) × 3.10(T) mm
Active area: 23.4(W) X23.4 (H)
Driver IC: GC9107
Response time: 25ms
Contrast ratio: 1200
Backlight: LED
Pixel pitch: 128(RGB) × 128
Pixel configuration: Square
Display color: 262K
Pin count: 25 Pins
Logic voltage: 2.5V~3.3V

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
