3.6-5.0 inch

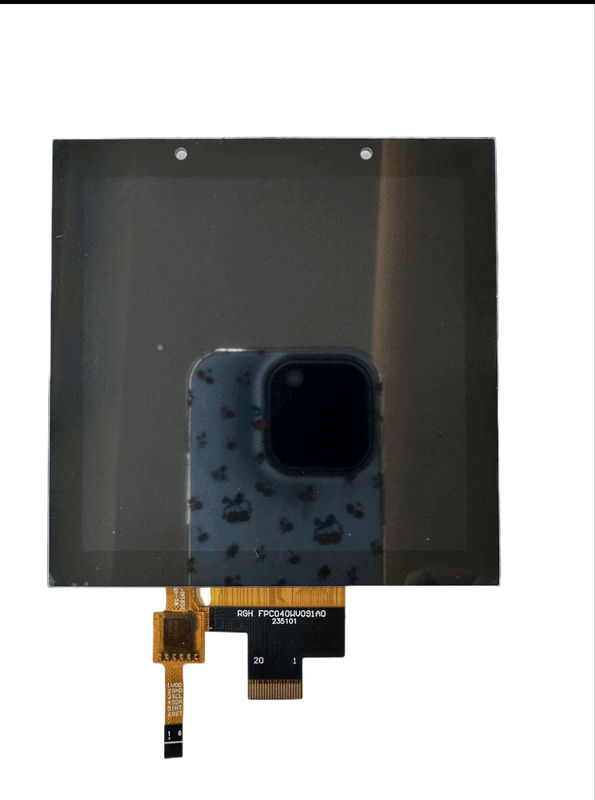

RTP40WV091A

3.95" TFT LCD touch module with 480x480 resolution for standard supply or customized display assemblies.

Format 3.95" TFT LCD touch module

Form Compact rectangle

Resolution 480x480

Interface MIPI

Touch Yes

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RTP40WV091A
Screen size: 3.95"
Display form: Compact rectangle
Resolution: 480x480
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 400cd/㎡(Typ)
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 84.40(H)×84.40(V)×3.67(T)mm
Active area: 71.86(H)×70.28(V)mm
Driver IC: ST7701SN-G5-1
Touch IC: FT6336
Response time: 30ms
Contrast ratio: 1000
Backlight: 8LEDs
Pixel pitch: 480(RGB)×480
Pixel configuration: Square
Display color: 262K color
Pin count: 20pins
Logic voltage: 2.5V~3.6V
Power: 560mW(Typ)

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
