1.83 inch IPS TFT LCD touch module with cover lens, capacitive touch, compact FPC routing, and rear component area.
Catalog
1.6-2.0 inch
RTP183001A
1.83" TFT LCD touch module with 240x284 resolution for standard supply or customized display assemblies.
Format 1.83" TFT LCD touch module
Form Portrait rectangle
Resolution 240x284
Interface SPI
Touch Capacitive touch, CST816D
Product brief
Compact touch TFT module for embedded control interfaces.
SPI LCD interface with a capacitive touch channel. Touch FPC pinout is listed below; display FPC assignment is confirmed with the datasheet.
Integrated white LED backlight, with source notes calling out low power, uniformity, anti-static, anti-interference, and high-temperature resistance.

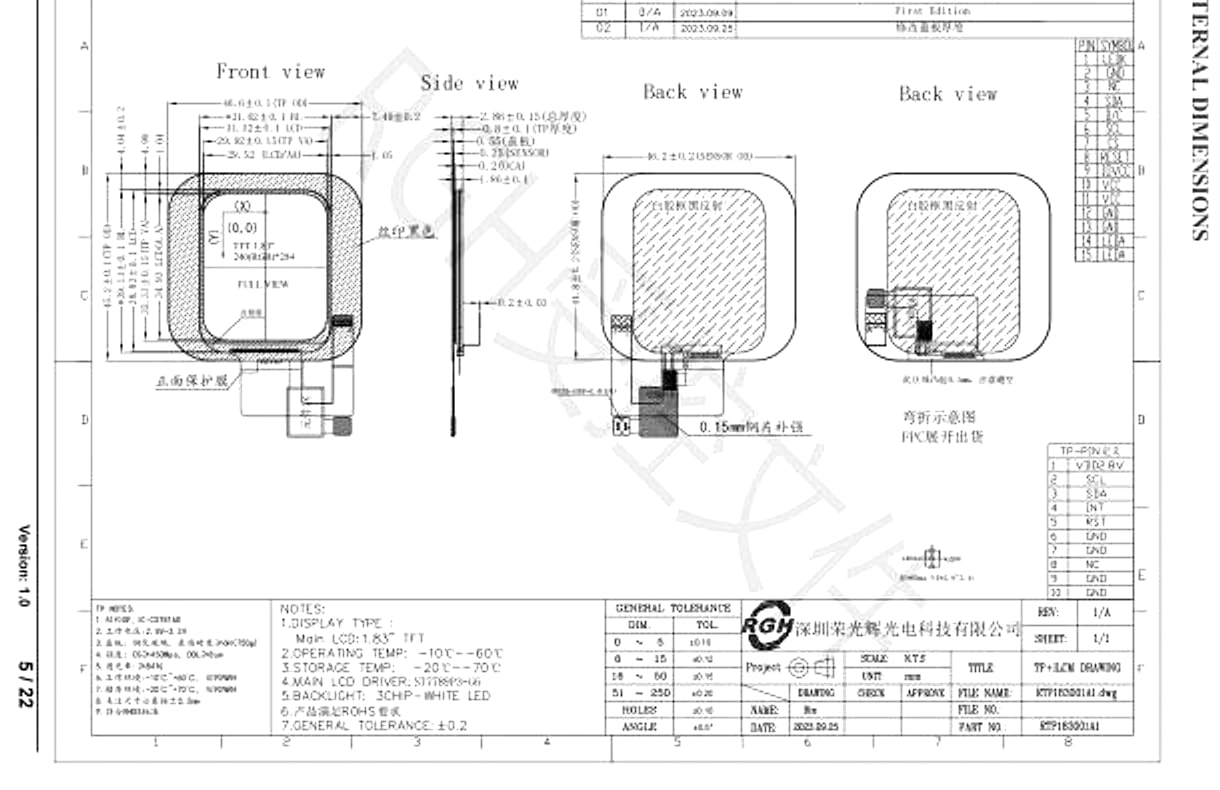

Mechanical drawing
Outline, active area, FPC position, and back view.
Operating temp. -10 C to 60 C
Storage temp. -20 C to 70 C
Backlight 3 chips white LED
Drawing scope Front / side / back views

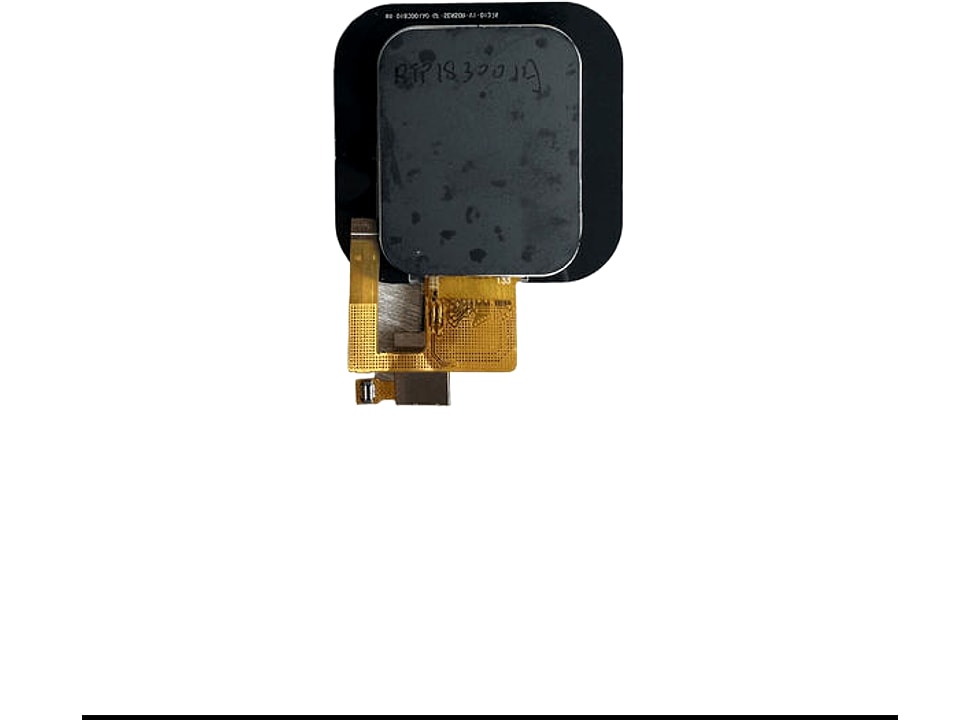

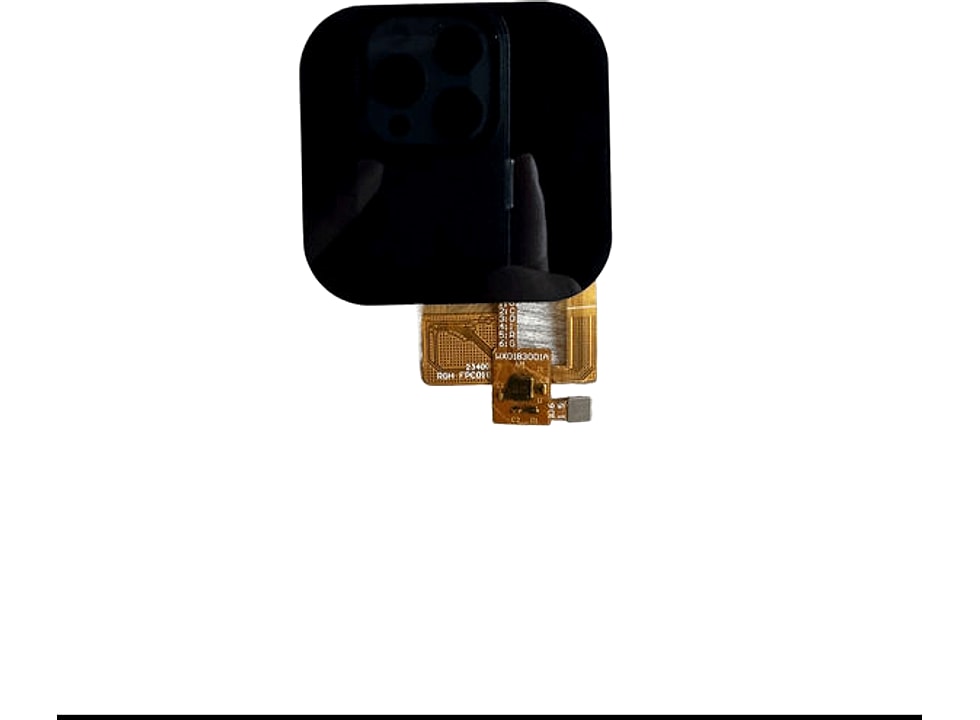

Product views
Module details from multiple angles.
Specification
Core data for first review.
- Model
- RTP183001A
- Screen size
- 1.83"
- Display form
- Portrait rectangle
- Resolution
- 240x284
- Display mode
- Transmissive TFT
- Interface
- SPI
- Brightness
- 400 cd/m²
- Touch
- Capacitive touch, CST816D
- Temperature
- -10°C to 60°C operating; -20°C to 70°C storage
- Viewing direction
- All o'clock
- Outline dimension
- 46.6 (H) X45.2(V) X2.86(T)
- Active area
- 29.52(H) X34.93 (V)
- Driver IC
- ST7789P3-G6
- Touch IC
- CST816D
- Response time
- 30 ms typical
- Contrast ratio
- Application dependent
- Backlight
- 3LEDS
- Logic voltage
- 2.5V-3.3V
- Power
- 210 mW typical
