RTP24QV092E

2.4" TFT LCD touch module with 240x320 resolution for standard supply or customized display assemblies.

Format 2.4" TFT LCD touch module

Form Portrait rectangle

Resolution 240x320

Interface SPI

Compare catalog

RTP24QV092E display module

Core specification

Engineering snapshot.

Model: RTP24QV092E
Screen size: 2.4"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: Transmissive TFT
Interface: SPI
Brightness: 360cd/㎡
Temperature: -20℃~70℃
Viewing direction: ALL O'LCOCK
Outline dimension: 41.20(H)×57.75(W)×3.2(T)mm
Active area: 36.72(W)×48.96(H)mm
Driver IC: ST7789V
Backlight: 4LEDS
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 24pins
Logic voltage: 2.5V~3.0V

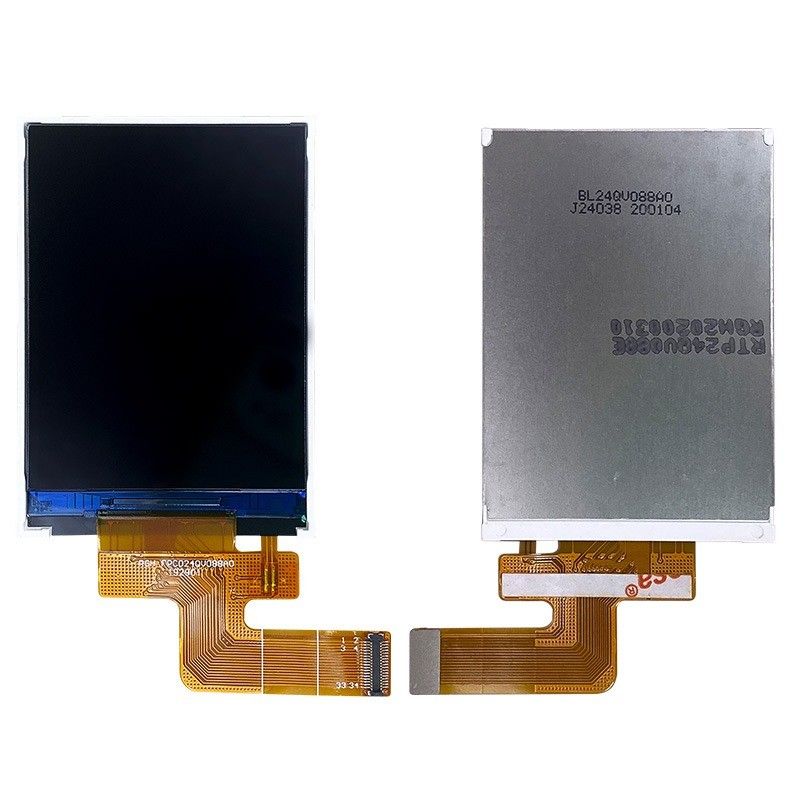

Product views

Front and back module views.

RTP24QV092E Front view

RTP24QV092E Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
