2.8-3.5 inch

RTP35QV011A

3.5" TFT LCD touch module with 240x320 resolution for standard supply or customized display assemblies.

Format 3.5" TFT LCD touch module

Form Portrait rectangle

Resolution 240x320

Interface RGB + SPI

Touch Yes

Compare catalog

RTP35QV011A display module

Core specification

Engineering snapshot.

Model: RTP35QV011A
Screen size: 3.5"
Display form: Portrait rectangle
Resolution: 240x320
Display mode: Transmissive TFT
Interface: RGB + SPI
Brightness: 450cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: 12:00 o'clock
Outline dimension: 64.00(H)×85.00(V)×4.1(T)mm
Active area: 53.28(H)×71.04(V)mm
Driver IC: ILI9325C
Response time: 30ms
Contrast ratio: 800
Backlight: 6LEDS
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 420mW

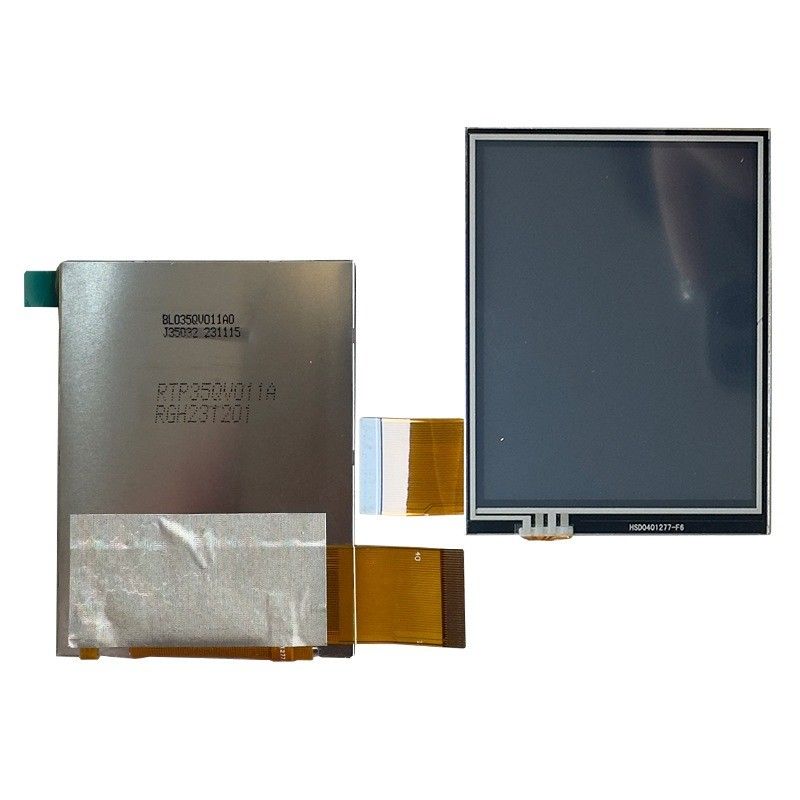

Product views

Front and back module views.

RTP35QV011A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
