5.1-7.0 inch

RTP65HD002A

6.5" TFT LCD touch module with 720x1600 resolution for standard supply or customized display assemblies.

Format 6.5" TFT LCD touch module

Form Wide rectangle

Resolution 720x1600

Interface MIPI

Touch Yes

Compare catalog

RTP65HD002A display module

Core specification

Engineering snapshot.

Model: RTP65HD002A
Screen size: 6.5"
Display form: Wide rectangle
Resolution: 720x1600
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 350cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 73.23(H)×161.40(V)×2.76(T)mm
Active area: 67.93(H)×146.90(V)mm
Driver IC: FT8057M
Response time: 26ms
Contrast ratio: 1500
Backlight: 16LEDs
Pixel pitch: 720(RGB)×1600
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 4.5V~6.3V
Power: 1120mW

Product views

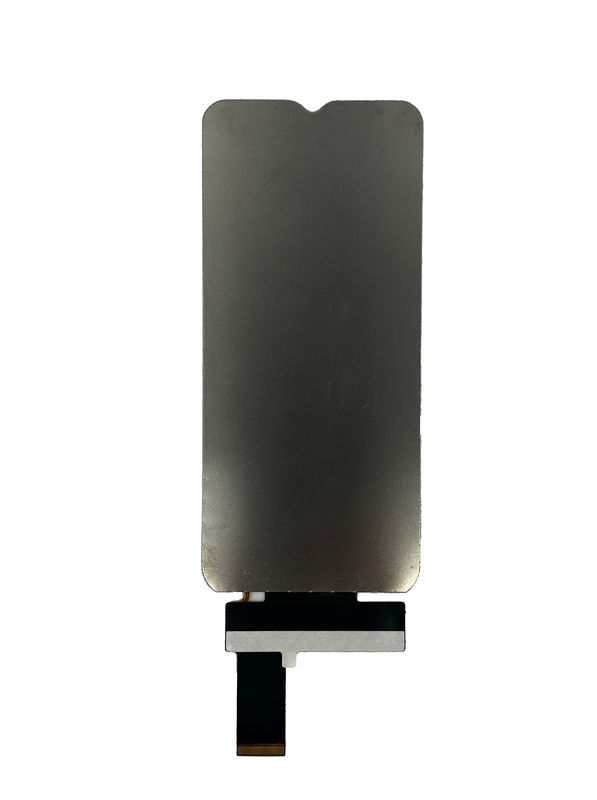

Front and back module views.

RTP65HD002A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
