RTP686006A

6.8" TFT LCD touch module with 480x1280 resolution for standard supply or customized display assemblies.

Format 6.8" TFT LCD touch module

Form Wide rectangle

Resolution 480x1280

Interface MIPI

Touch Yes

Compare catalog

RTP686006A display module

Core specification

Engineering snapshot.

Model: RTP686006A
Screen size: 6.8"
Display form: Wide rectangle
Resolution: 480x1280
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 650cd/㎡
Touch: Yes
Temperature: -20℃~85℃
Viewing direction: All o'clock
Outline dimension: 78.7(H)×189.6(V)×7.5(T)mm
Active area: 60.22(H)×160.59(V)mm
Driver IC: FL7705
Touch IC: GA6571
Response time: 30ms
Contrast ratio: 900
Backlight: 12LEDS
Pixel pitch: 480(RGB)×1280
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.3V
Power: 840mW

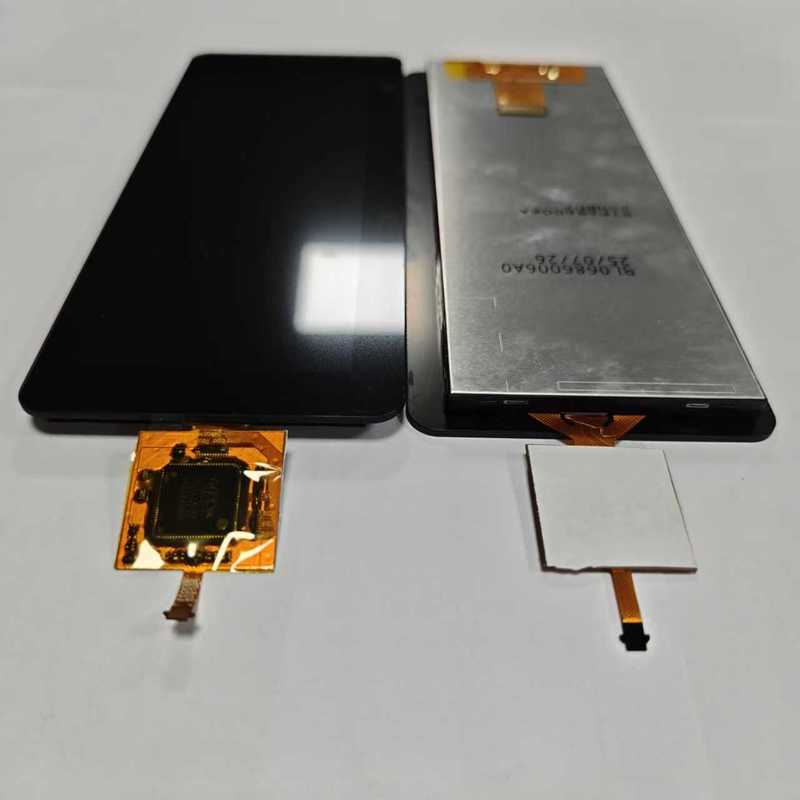

Product views

Front and back module views.

RTP686006A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
