7.1-10.1 inch

RTP80HD006A

8" TFT LCD touch module with 800x1280 resolution for standard supply or customized display assemblies.

Format 8" TFT LCD touch module

Form Portrait rectangle

Resolution 800x1280

Interface MIPI

Touch Yes

Compare catalog

RTP80HD006A display module

Core specification

Engineering snapshot.

Model: RTP80HD006A
Screen size: 8"
Display form: Portrait rectangle
Resolution: 800x1280
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 220cd/㎡
Touch: Yes
Temperature: -10℃~50℃
Viewing direction: All o'clock
Outline dimension: 126.65(H)×205.10(V)×4.9(T)mm
Active area: 107.64(H)×172.22(V)mm
Driver IC: JD9365DA
Touch IC: GT911
Response time: 30ms
Contrast ratio: 1500
Backlight: 21LEDs
Pixel pitch: 800(RGB)×1280
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 31pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

RTP80HD006A Front view

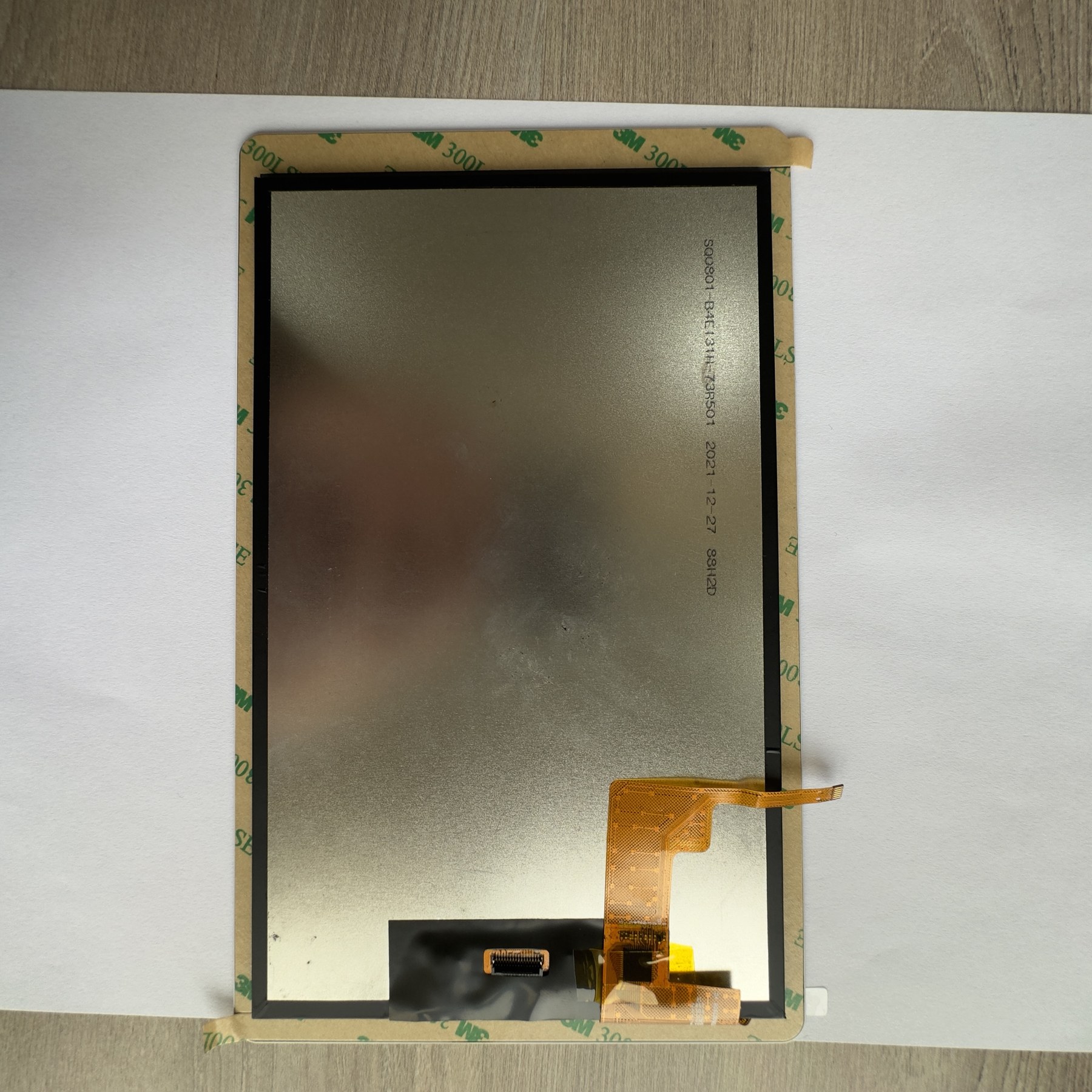

RTP80HD006A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
