RT145QV009A

1.45" TFT LCD module with 172x320 resolution for standard supply or customized display assemblies.

Format 1.45" TFT LCD module

Form Wide rectangle

Resolution 172x320

Interface SPI

Touch No

Compare catalog

RT145QV009A display module

Core specification

Engineering snapshot.

Model: RT145QV009A
Screen size: 1.45"
Display form: Wide rectangle
Resolution: 172x320
Display mode: Transmissive TFT
Interface: SPI
Brightness: 600 cd/m²
Touch: No
Temperature: -10 ℃ ~ 60 ℃
Viewing direction: ALL
Outline dimension: 19.75(H)*36.86(V)*1.60(T) mm
Active area: 17.39 × 32.35 mm
Driver IC: ST7789P3
Response time: 30 ms
Contrast ratio: 1500
Backlight: LED
Pixel pitch: 172(RGB) × 320
Pixel configuration: Rectangle
Display color: 262K
Pin count: 8pins
Logic voltage: 2.5~3.3 V

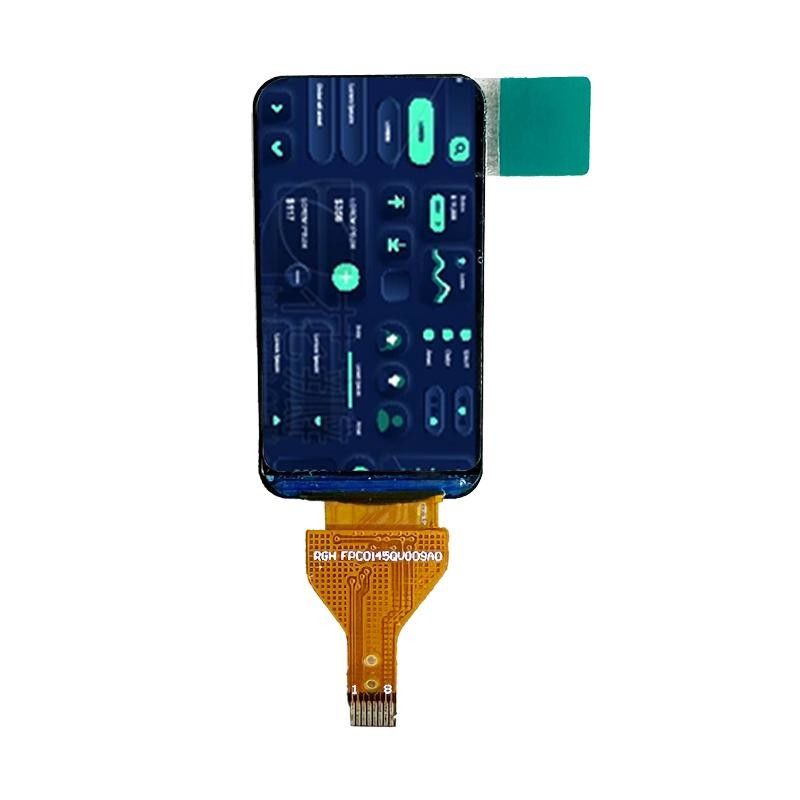

Product views

Front and back module views.

RT145QV009A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
