RT15WH039E

1.5" TFT LCD module with 480x240 resolution for standard supply or customized display assemblies.

Format 1.5" TFT LCD module

Form Wide rectangle

Resolution 480x240

Interface RGB 8-bit

Touch No

Compare catalog

RT15WH039E display module

Core specification

Engineering snapshot.

Model: RT15WH039E
Screen size: 1.5"
Display form: Wide rectangle
Resolution: 480x240
Display mode: Thin Film Transistor Liquid Crystal Display
Interface: RGB 8-bit
Brightness: 180 cd/㎡
Touch: No
Temperature: -20 C to 70 C operating
Viewing direction: 6:00 o’clock
Outline dimension: 37.90(H) × 33.50(V) × 2.90(T) mm
Active area: 29.76(H) × 22.32(V) mm
Driver IC: OTA5182A‑C2
Response time: 35 ms
Contrast ratio: 350
Pixel pitch: 480 × 240
Pixel configuration: Rectangle
Display color: 262K
Pin count: 40 pins
Logic voltage: 2.5–3.3V

Product views

Front and back module views.

RT15WH039E Front view

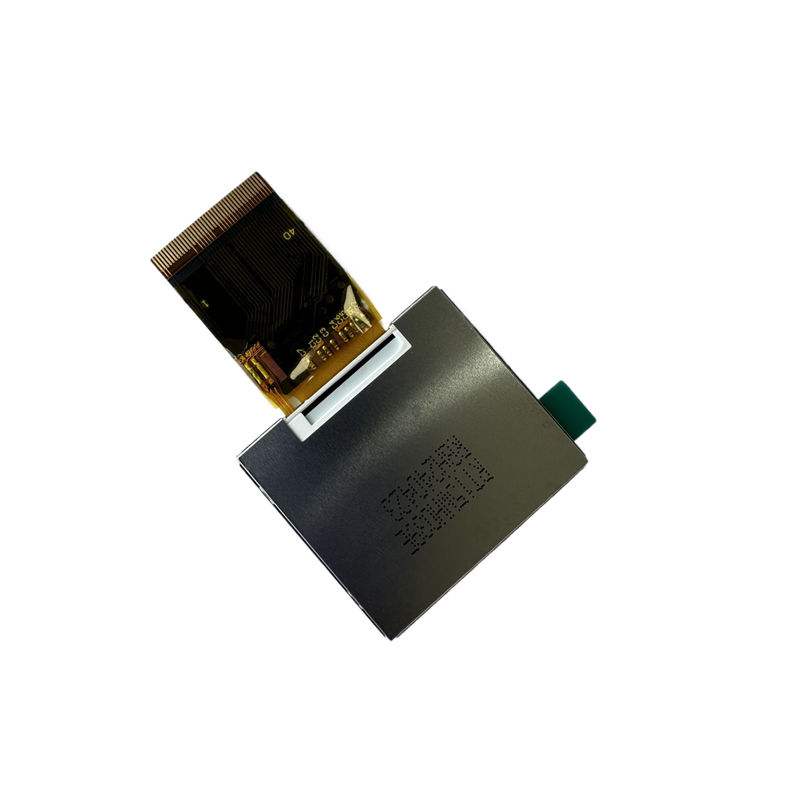

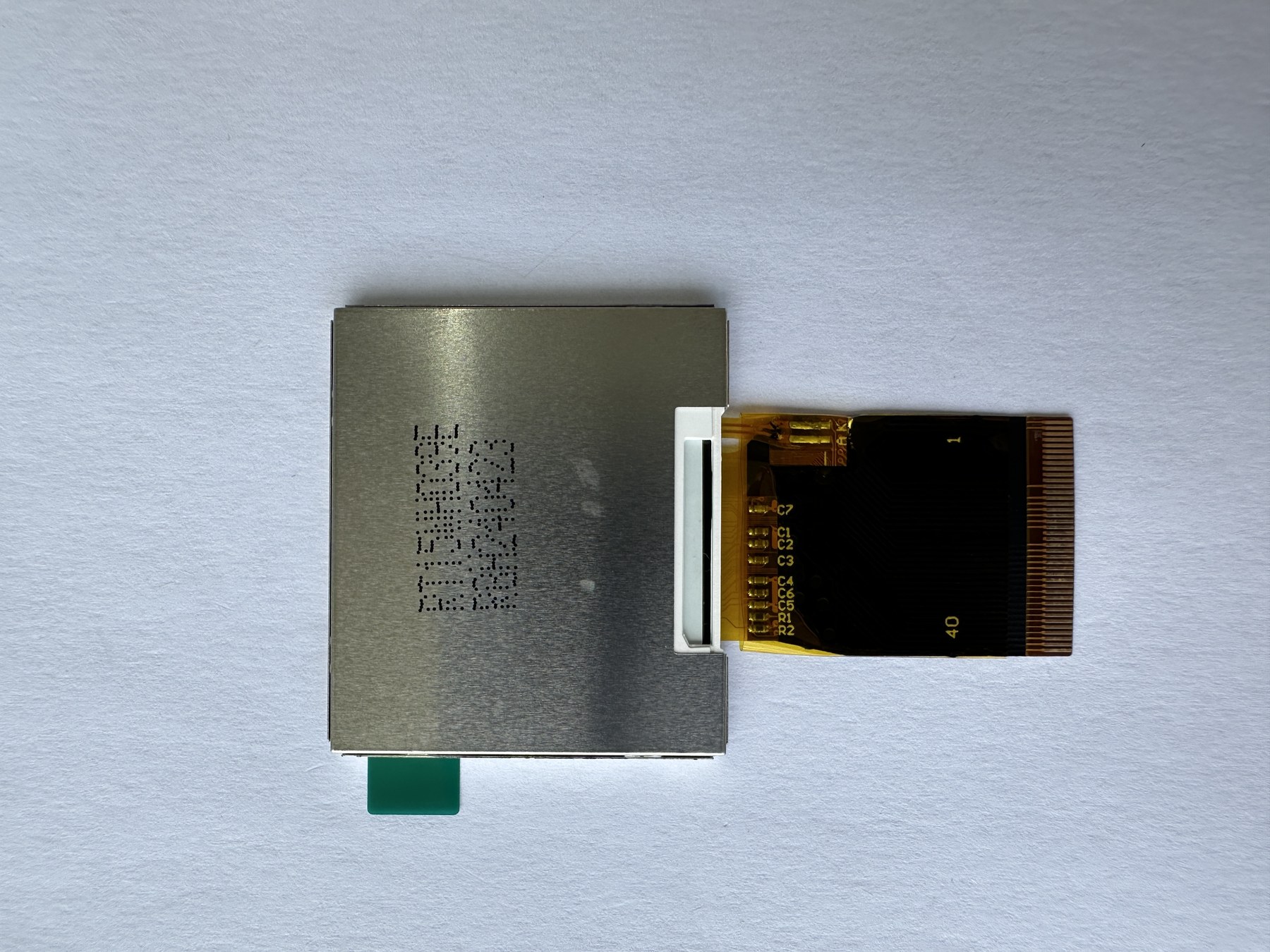

RT15WH039E Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
