1.31-1.54 inch

RT15WH004B-2

1.5" TFT LCD module with 480x240 resolution for standard supply or customized display assemblies.

Format 1.5" TFT LCD module

Form Wide rectangle

Resolution 480x240

Interface RGB + SPI

Touch No

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RT15WH004B-2
Screen size: 1.5"
Display form: Wide rectangle
Resolution: 480x240
Display mode: TFT LCD
Interface: RGB + SPI
Brightness: 150 cd/m²
Touch: No
Temperature: -20°C to 70°C
Viewing direction: 6 o'clock
Outline dimension: 37.10(W)X32.70(H)X2.50(T)
Active area: 29.76 × 22.32 mm
Driver IC: OTA5182A
Response time: 35 ms
Contrast ratio: 500
Backlight: LED
Pixel pitch: 480(RGB) × 240
Pixel configuration: Rectangle
Display color: 262K
Pin count: 40pins
Logic voltage: 2.5~3.3 V

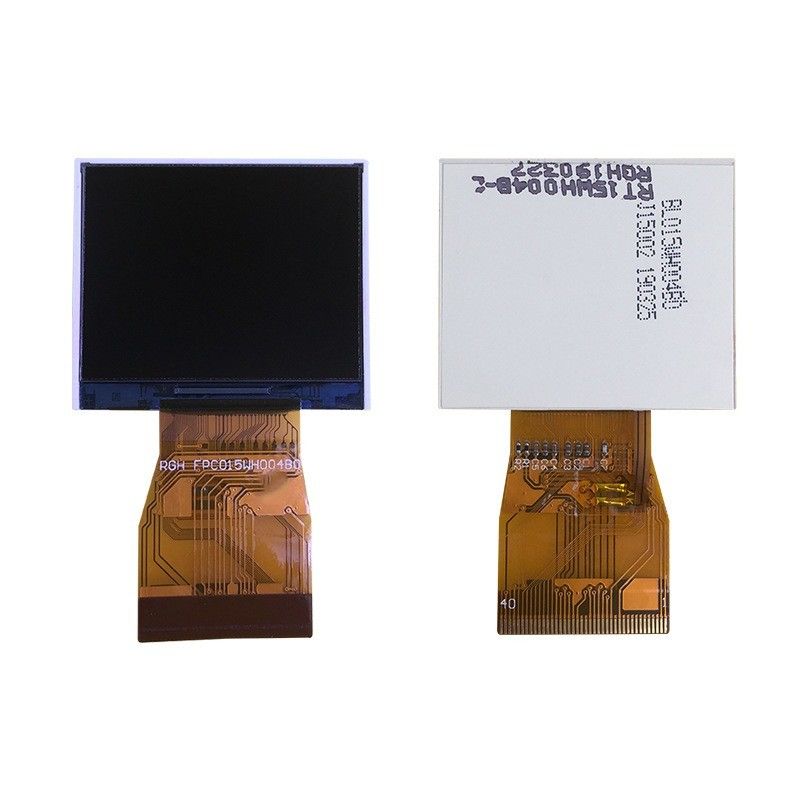

Product views

Front and back module views.

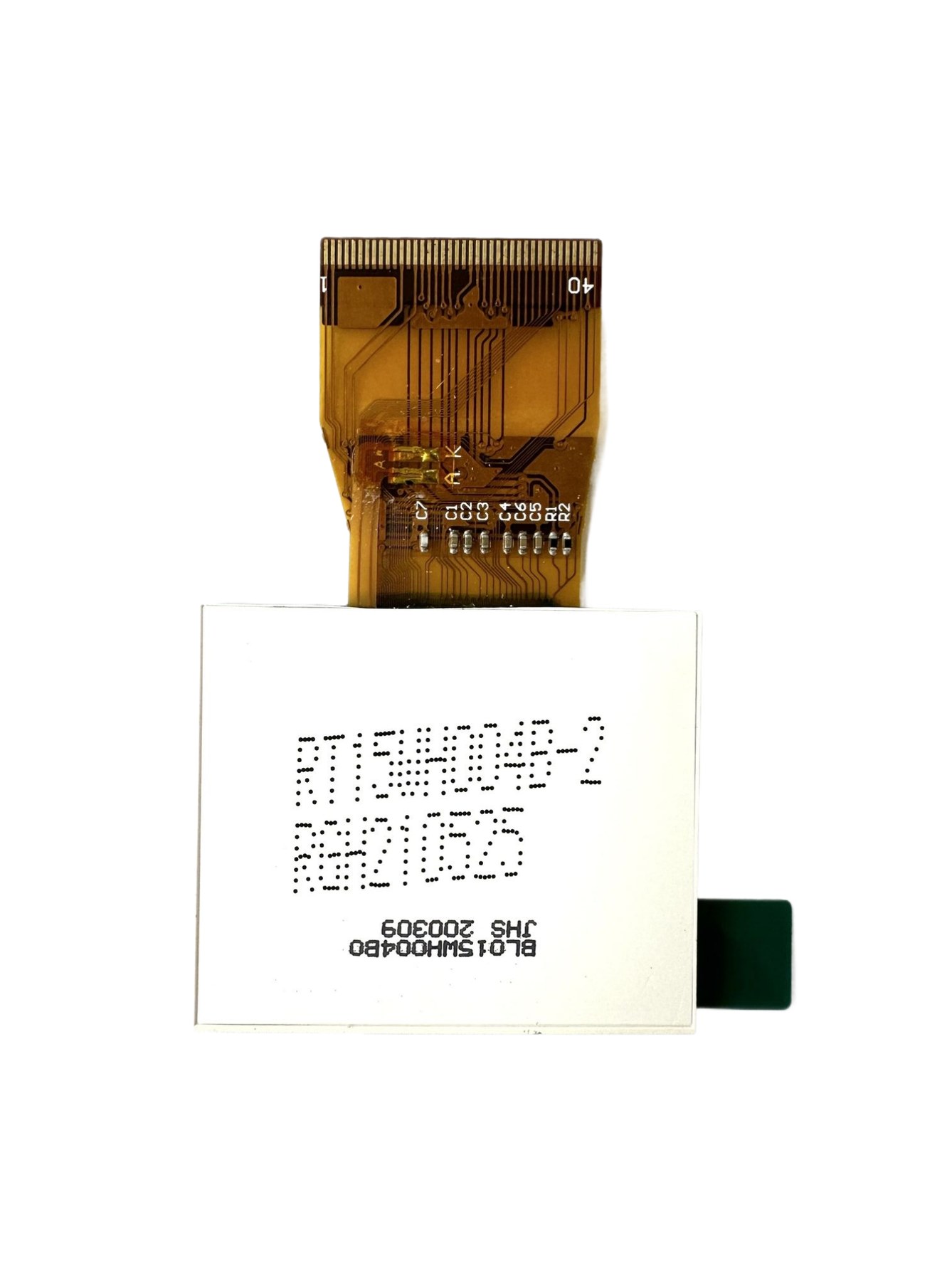

RT15WH004B-2 Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
