RT15WH010J

1.5" TFT LCD module with 480x240 resolution for standard supply or customized display assemblies.

Format 1.5" TFT LCD module

Form Wide rectangle

Resolution 480x240

Interface RGB 8BIT

Touch No

Compare catalog

RT15WH010J display module

Core specification

Engineering snapshot.

Model: RT15WH010J
Screen size: 1.5"
Display form: Wide rectangle
Resolution: 480x240
Display mode: Transmissive TFT
Interface: RGB 8BIT
Brightness: 160 cd/m²
Touch: No
Temperature: -10°C to 60°C operating; -20°C to 70°C storage
Viewing direction: 6 o'clock
Outline dimension: 37.10(W)*32.7(H)*2.50
Active area: 29.76(W) X22.32 (H) mm
Driver IC: OTA5182A
Response time: 35 ms
Contrast ratio: 500
Backlight: 2LEDS
Pixel pitch: 480(RGB) × 240
Pixel configuration: Rectangle
Display color: 262K
Pin count: 40 pins
Logic voltage: 2.5V-3.3V

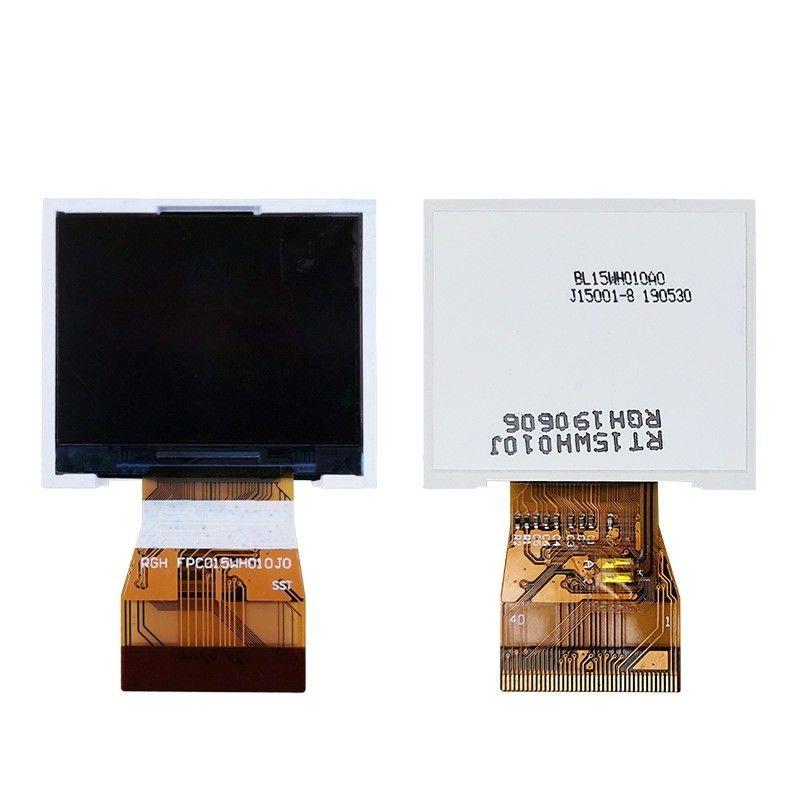

Product views

Front and back module views.

RT15WH010J Front view

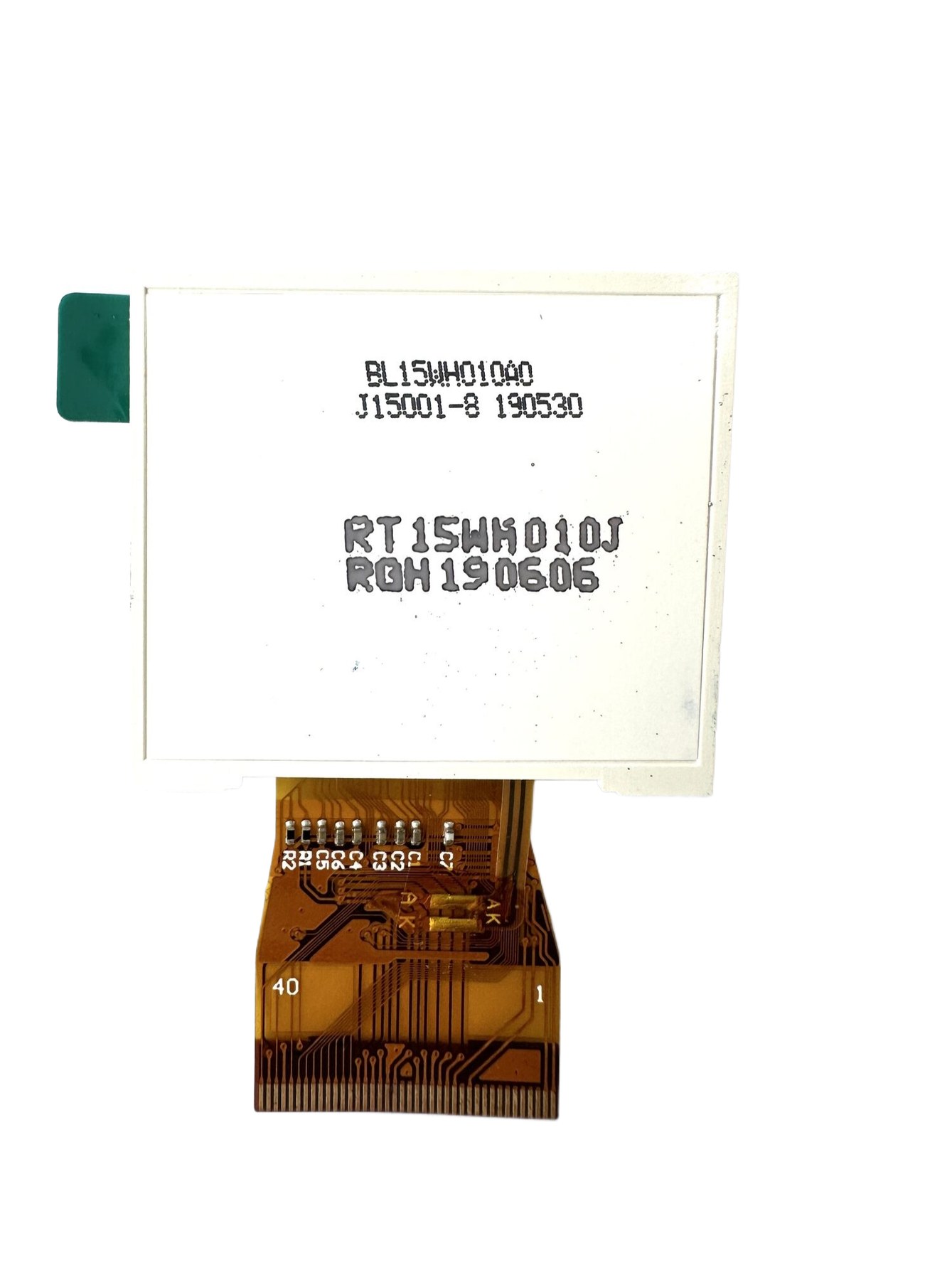

RT15WH010J Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
