RT19QC017A

1.9" TFT LCD module with 170x320 resolution for standard supply or customized display assemblies.

Format 1.9" TFT LCD module

Form Wide rectangle

Resolution 170x320

Interface SPI

Compare catalog

RT19QC017A display module

Core specification

Engineering snapshot.

Model: RT19QC017A
Screen size: 1.9"
Display form: Wide rectangle
Resolution: 170x320
Display mode: Transmissive TFT
Interface: SPI
Brightness: 750 cd/㎡
Temperature: -20℃ ~ 70℃
Viewing direction: All o'clock
Outline dimension: 25.00(H) × 49.32(V) × 1.53(T) mm
Active area: 22.70(H) × 42.72(V) mm
Driver IC: ST7789T3‑G4‑1
Response time: 30 ms
Contrast ratio: 1200
Backlight: 4LEDS
Pixel pitch: 170*320
Pixel configuration: Rectangle
Display color: 262K
Pin count: 13pins
Logic voltage: 2.4–3.3V
Power: 280mw

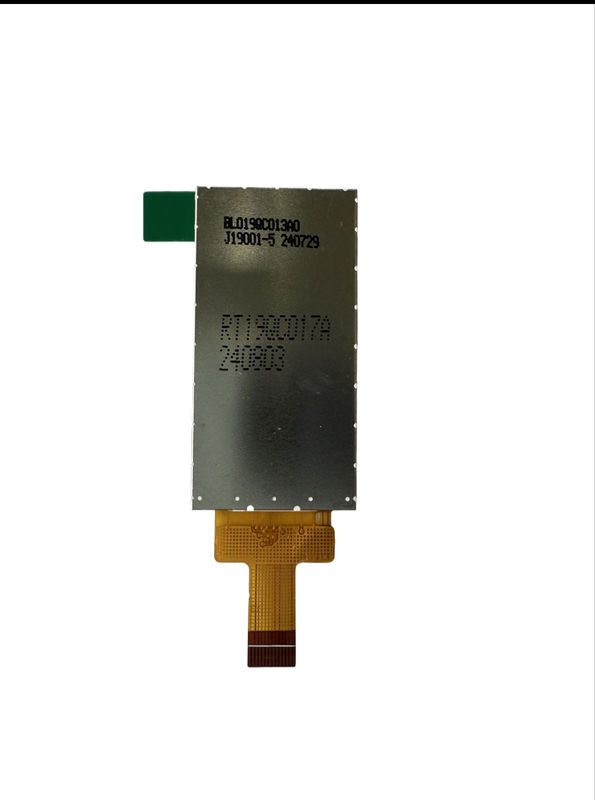

Product views

Front and back module views.

RT19QC017A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
