2.1-2.7 inch

RT24QV231A

2.4" TFT LCD module with 2408x320 resolution for standard supply or customized display assemblies.

Format 2.4" TFT LCD module

Form Bar / stretched

Resolution 2408x320

Interface MCU 16BIT

Compare catalog

RT24QV231A display module

Core specification

Engineering snapshot.

Model: RT24QV231A
Screen size: 2.4"
Display form: Bar / stretched
Resolution: 2408x320
Display mode: Reflective TFT
Interface: MCU 16BIT
Brightness: 200cd/㎡
Temperature: -20℃~70℃
Viewing direction: ALL O'LCOCK
Outline dimension: 42.52(H)×59.86(W)×2.37(T)mm
Active area: 36.72(W)×48.96(H)mm
Driver IC: ST7789V
Response time: 25ms
Contrast ratio: 300
Backlight: 4LEDS
Pixel pitch: 240(RGB)×320
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 45pins
Logic voltage: 2.5V~3.3V
Power: 280mW

Product views

Front and back module views.

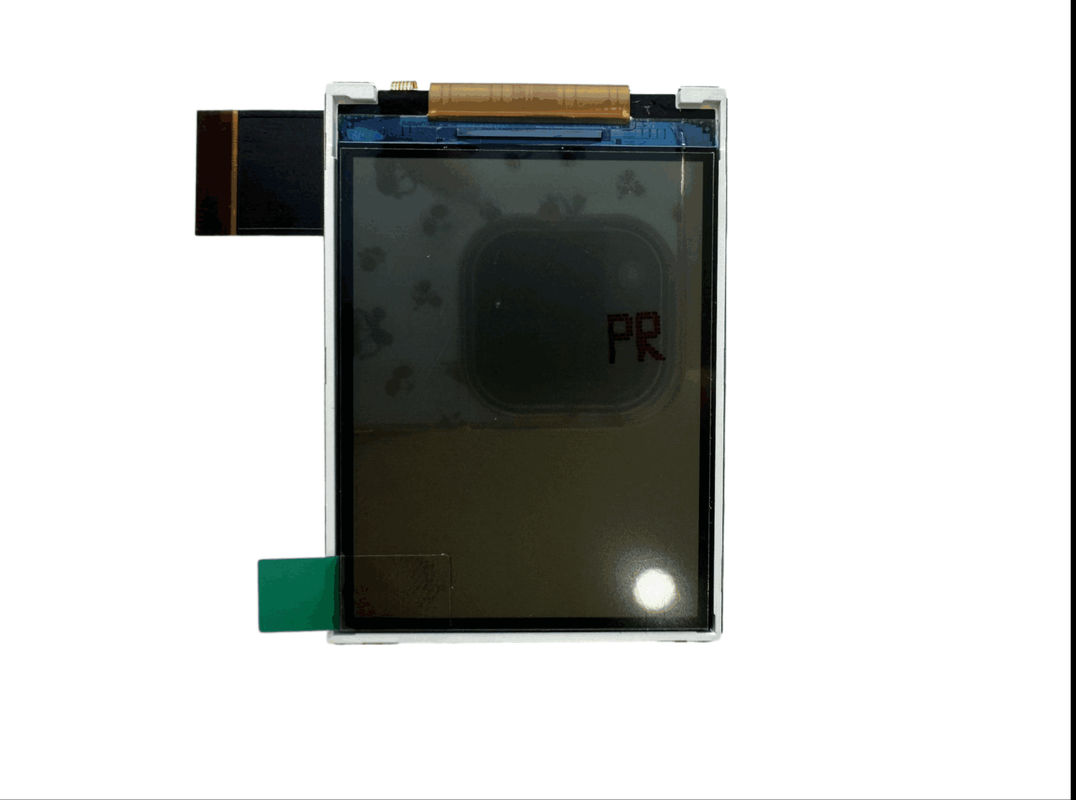

RT24QV231A Front view

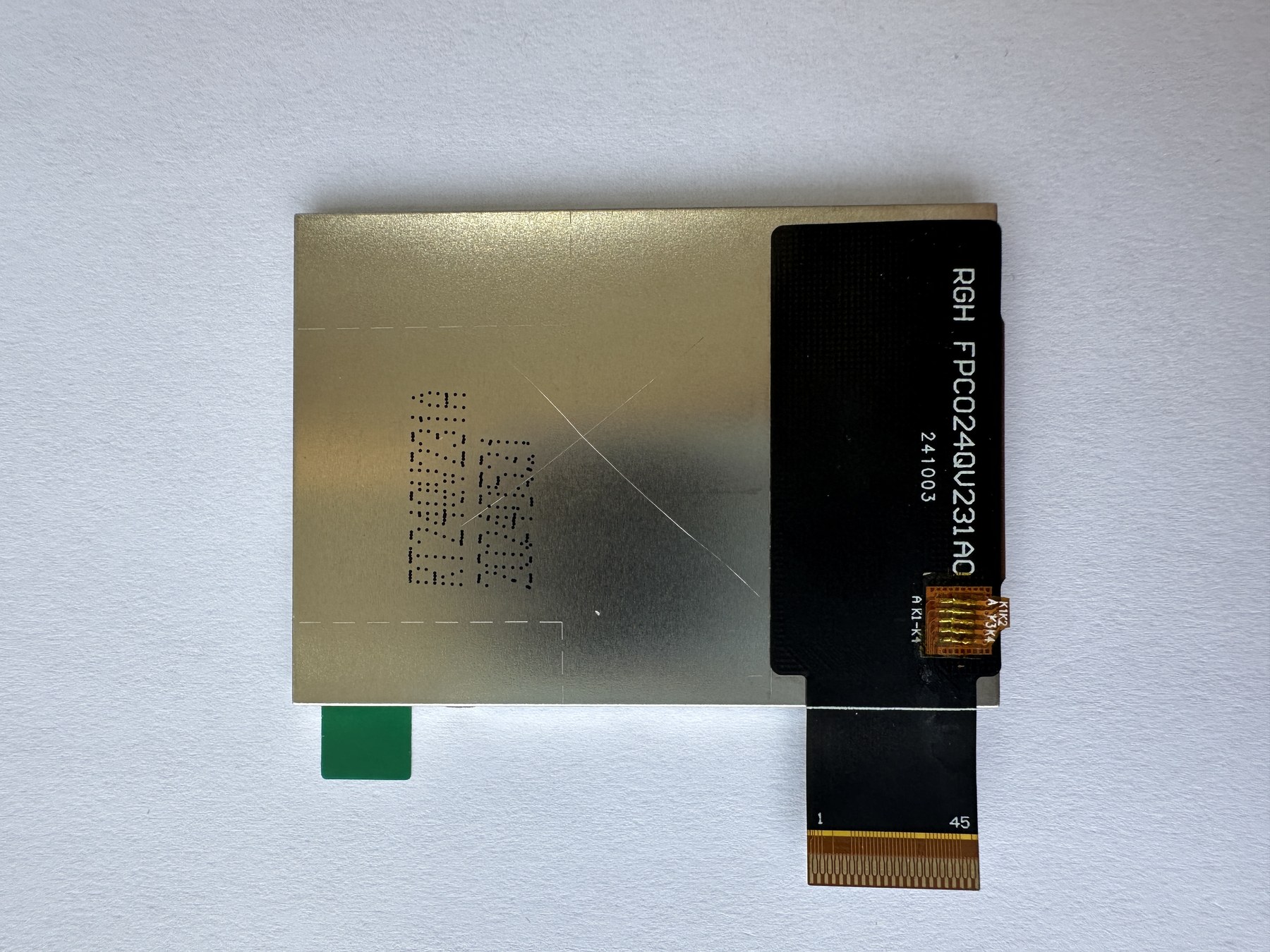

RT24QV231A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
