1.31-1.54 inch

RTP138QV001A

1.38" AMOLED module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.38" AMOLED module

Form Round

Resolution 240x240

Interface SPI

Touch Yes

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RTP138QV001A
Screen size: 1.38"
Display form: Round
Resolution: 240x240
Display mode: LCD
Interface: SPI
Brightness: 380 cd/m²
Touch: Yes
Temperature: -20°C to 70°C
Viewing direction: All o'clock
Outline dimension: 48 mm × 48 mm × 2.5 mm
Active area: 35.14 mm × 35.14 mm
Driver IC: NV3002B
Response time: 25 ms
Contrast ratio: 1200
Backlight: LED
Pixel pitch: 240*240
Pixel configuration: circle
Display color: 262K
Pin count: 12 pins
Logic voltage: 2.5V~3.6V
Power: 140 mW

Product views

Front and back module views.

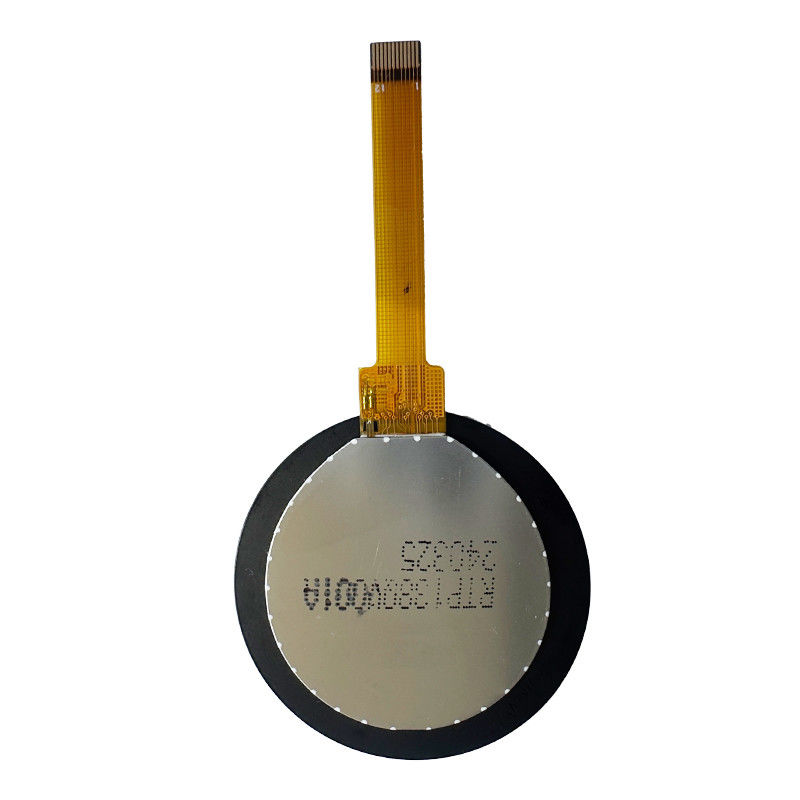

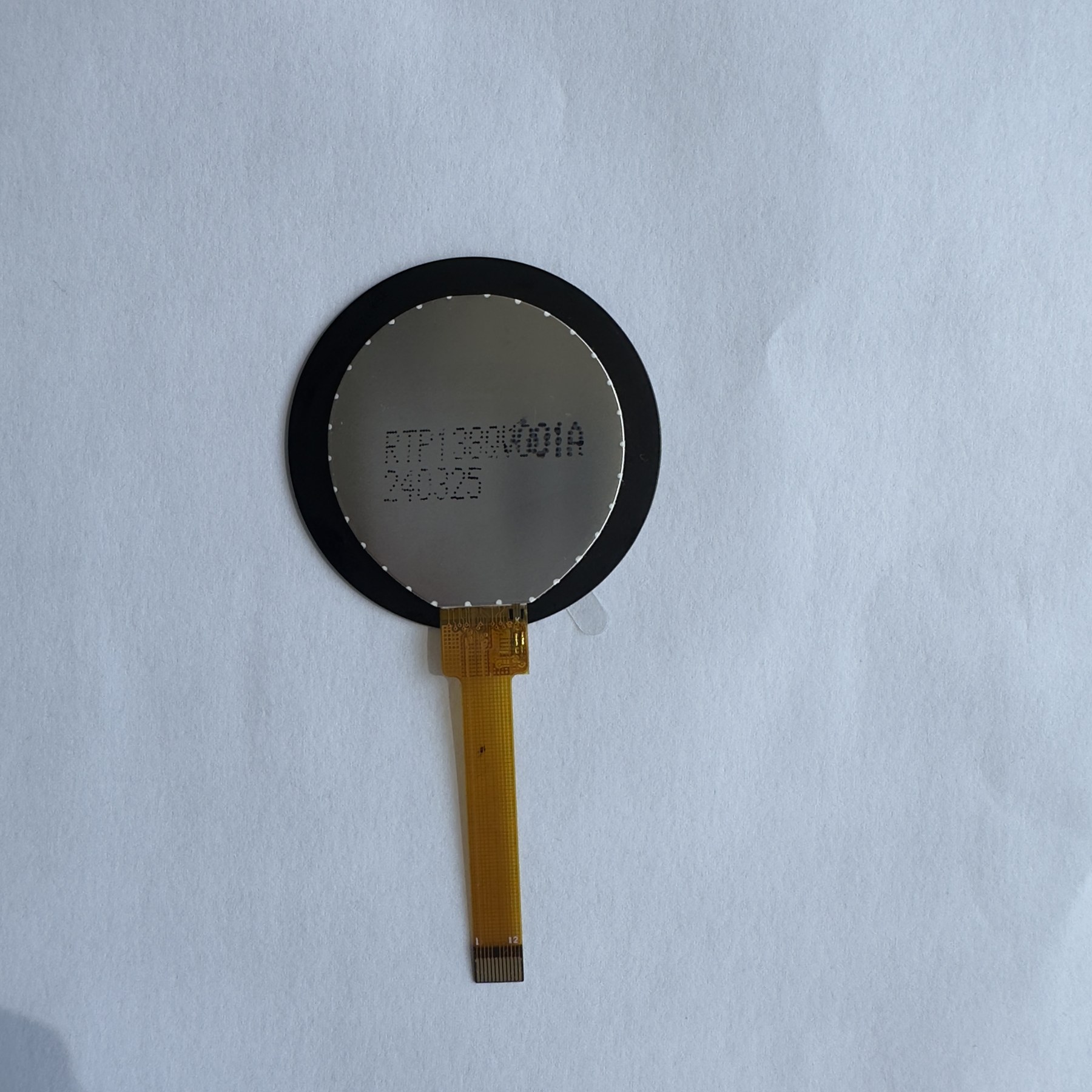

RTP138QV001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
