RTO172001A

1.72" AMOLED module with 466x466 resolution for standard supply or customized display assemblies.

Format 1.72" AMOLED module

Form Round

Resolution 466x466

Interface MIPI OR QSPI

Touch yes

Compare catalog

RTO172001A display module

Core specification

Engineering snapshot.

Model: RTO172001A
Screen size: 1.72"
Display form: Round
Resolution: 466x466
Display mode: AMOLED
Interface: MIPI OR QSPI
Brightness: 700 cd/m²
Touch: yes
Temperature: -20 C to 70 C operating
Viewing direction: All o'clock
Outline dimension: 45.93(H) × 46.35(V) × 0.8(T) mm
Active area: Φ43.76 mm
Driver IC: C05300
Touch IC: CST9217
Response time: 10ms
Contrast ratio: 20000
Pixel pitch: 466(RGB) × 466
Pixel configuration: circle
Display color: 16.7M
Pin count: 24 pins
Logic voltage: 2.4–3.3V
Power: 30 mA

Product views

Front and back module views.

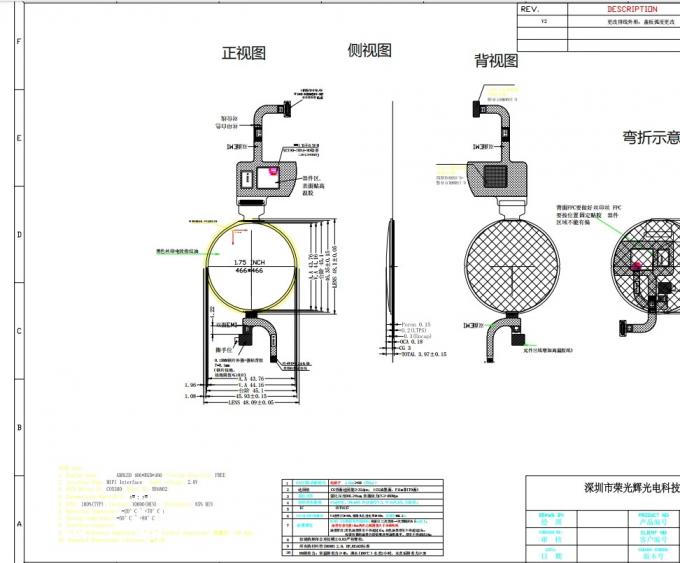

RTO172001A Front view

RTO172001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
