RTP13QV041A

1.3" TFT LCD touch module with 240x240 resolution for standard supply or customized display assemblies.

Format 1.3" TFT LCD touch module

Form Round

Resolution 240x240

Interface SPI

Touch Yes

Compare catalog

RTP13QV041A display module

Core specification

Engineering snapshot.

Model: RTP13QV041A
Screen size: 1.3"
Display form: Round
Resolution: 240x240
Display mode: Transmissive TFT
Interface: SPI
Brightness: 380 cd/m²
Touch: Yes
Temperature: -20°C to 70°C
Viewing direction: All o'clock
Outline dimension: 47.30 mm × 47.30 mm × 3.05 mm
Active area: 32.4 mm × 32.4 mm
Driver IC: GC9A01
Touch IC: CHSC6413
Response time: 35 ms
Contrast ratio: 1100
Backlight: LED
Pixel pitch: 240*240
Pixel configuration: circle
Display color: 262K
Pin count: 18pins
Logic voltage: 2.5V~3.3V

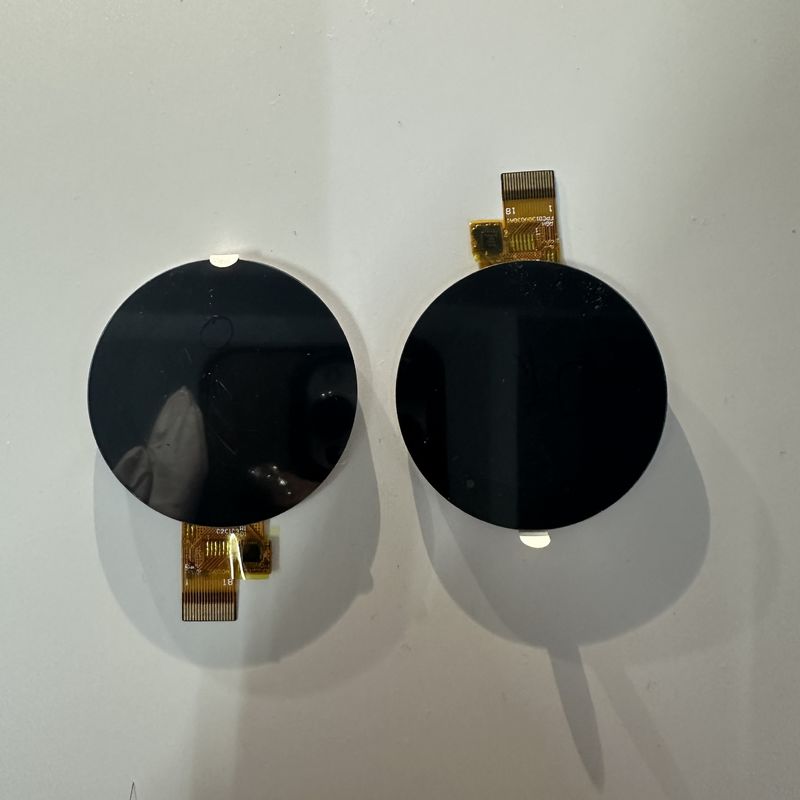

Product views

Front and back module views.

RTP13QV041A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
