RT35DV001A

3.5" AMOLED module with 800x640 resolution for standard supply or customized display assemblies.

Format 3.5" AMOLED module

Form Round

Resolution 800x640

Interface RGB

Touch No

Compare catalog

RT35DV001A display module

Core specification

Engineering snapshot.

Model: RT35DV001A
Screen size: 3.5"
Display form: Round
Resolution: 800x640
Display mode: Transmissive TFT
Interface: RGB
Brightness: 1200cd/㎡
Touch: No
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 97.60(H)×83.79(V)×4.04(T)mm
Active area: 90.00(H)×72.00(V)mm
Driver IC: FL5893
Response time: 25ms
Contrast ratio: 1000
Backlight: 12LEDS
Pixel pitch: 800(RGB)×640
Pixel configuration: circle
Display color: 16.7M color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 840mW

Product views

Front and back module views.

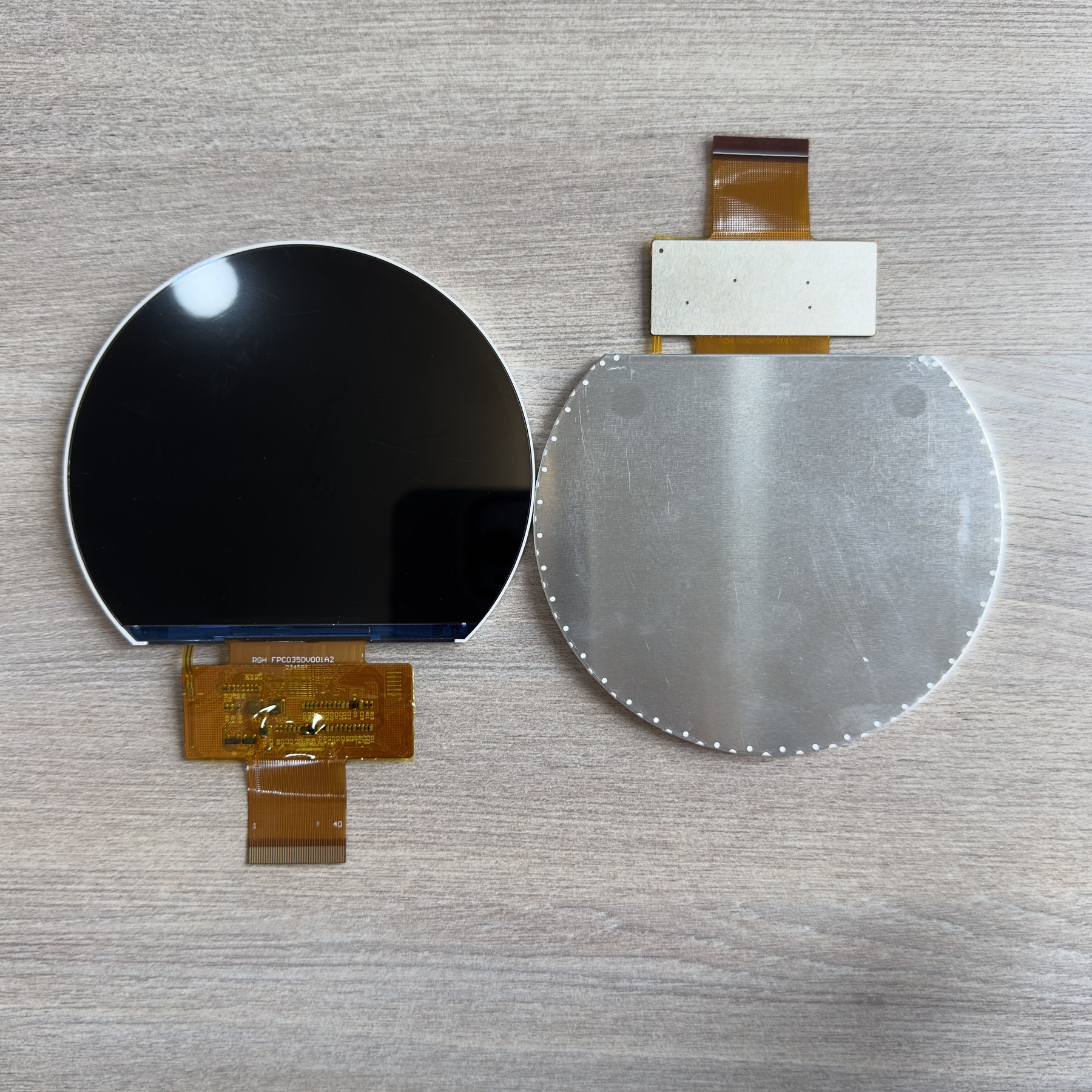

RT35DV001A Front view

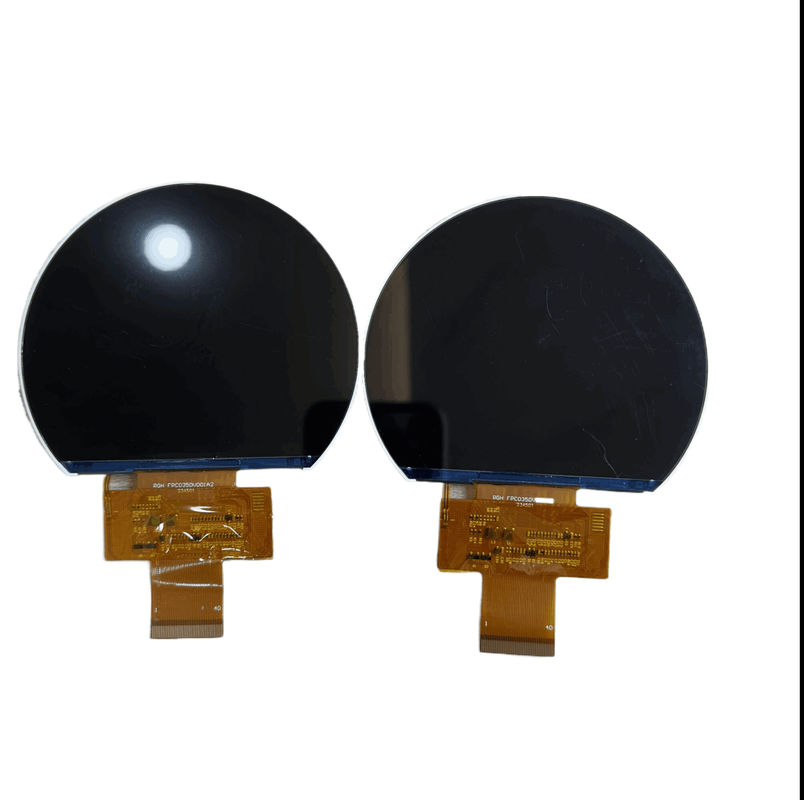

RT35DV001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
