2.1-2.7 inch

RTP24VG020A

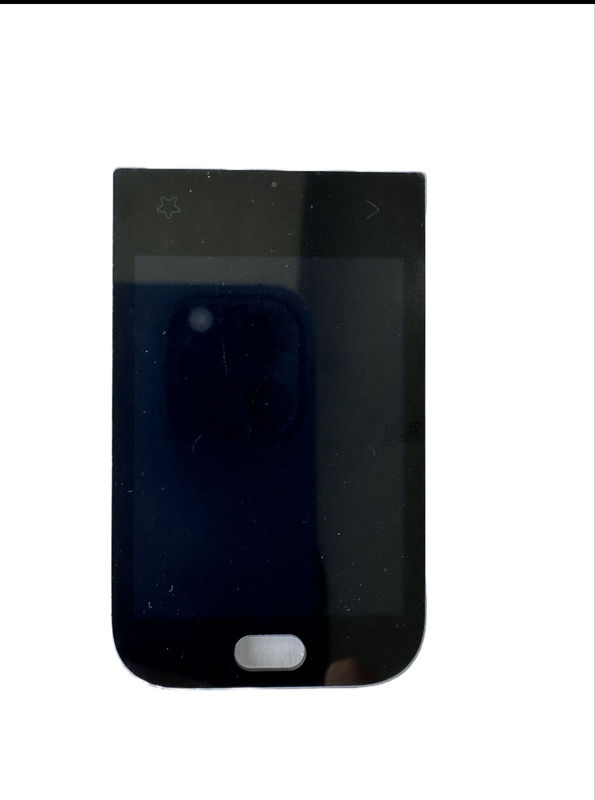

2.4" TFT LCD touch module with 480x640 resolution for standard supply or customized display assemblies.

Format 2.4" TFT LCD touch module

Form Bar / stretched

Resolution 480x640

Interface RGB

Touch Yes

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RTP24VG020A
Screen size: 2.4"
Display form: Bar / stretched
Resolution: 480x640
Display mode: Transmissive TFT
Interface: RGB
Brightness: 330cd/㎡
Touch: Yes
Temperature: -10℃~60℃
Viewing direction: ALL O'LCOCK
Outline dimension: 43.40(H)×70.96(V)×3.35(T)mm
Active area: 36.72(H)×48.96(V)mm
Driver IC: ST7701SN-G5-1
Touch IC: CST3240
Response time: 35ms
Contrast ratio: 1000
Backlight: 4LEDS
Pixel pitch: 480(RGB)×640
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.6V
Power: 280mW

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
