RTP69HD001A

6.9" TFT LCD touch module with 280x1424 resolution for standard supply or customized display assemblies.

Format 6.9" TFT LCD touch module

Form Bar / stretched

Resolution 280x1424

Interface MIPI

Touch Yes

Compare catalog

RTP69HD001A display module

Core specification

Engineering snapshot.

Model: RTP69HD001A
Screen size: 6.9"
Display form: Bar / stretched
Resolution: 280x1424
Display mode: Transmissive TFT
Interface: MIPI
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 47.20(H)×195.88(V)×5.50(T)mm
Active area: 33.60(H)×170.88(V)mm
Driver IC: ST7703I‑G5‑DP
Touch IC: GT911
Response time: 35ms
Contrast ratio: 1200
Backlight: 8LEDs
Pixel pitch: 280(RGB)×1424
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.3V
Power: 560mW

Product views

Front and back module views.

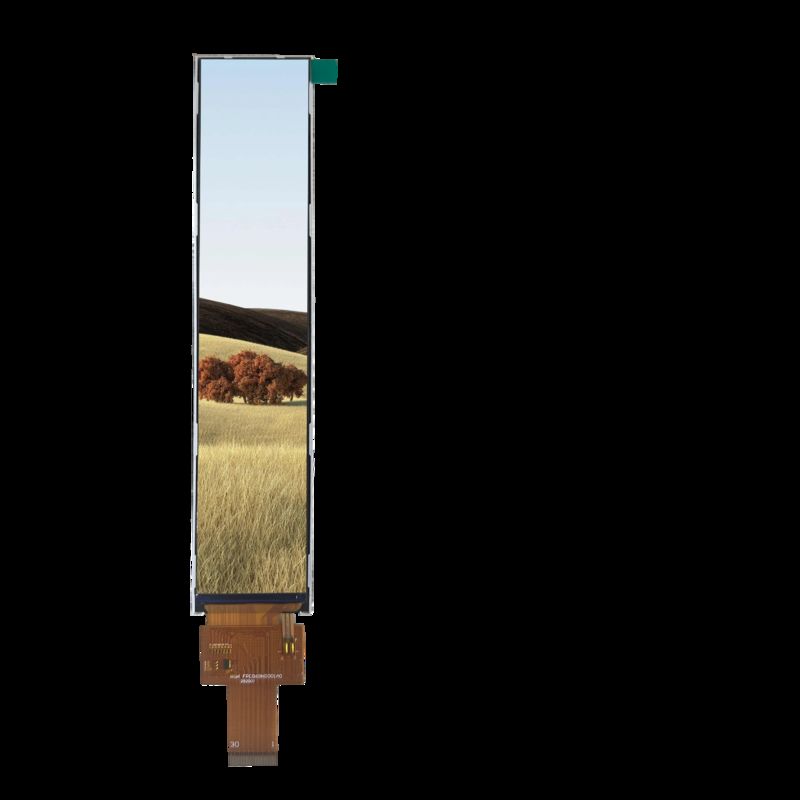

RTP69HD001A Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
