3.6-5.0 inch

RTP50FWV005A

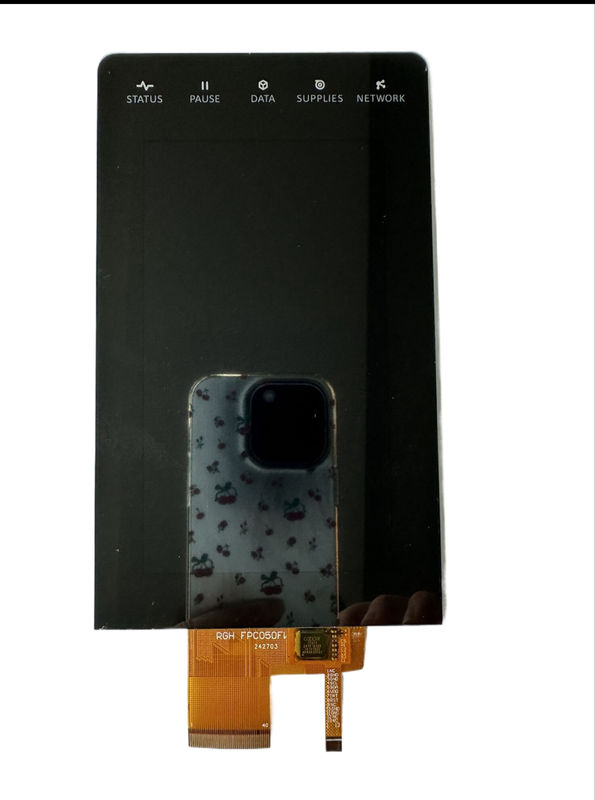

5" TFT LCD touch module with 480x854 resolution for standard supply or customized display assemblies.

Format 5" TFT LCD touch module

Form Wide rectangle

Resolution 480x854

Interface RGB

Touch Yes

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RTP50FWV005A
Screen size: 5"
Display form: Wide rectangle
Resolution: 480x854
Display mode: Transmissive TFT
Interface: RGB
Brightness: 380cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 86.29(H)×146.80(V)×3.75(T)mm
Active area: 61.56(H)×109.53(V)mm
Driver IC: ST7701SN-G5-1
Touch IC: GT911
Response time: 30ms
Contrast ratio: 1500
Backlight: 12LEDS
Pixel pitch: 480(RGB)×854
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.6V
Power: 840mW

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
