2.1-2.7 inch

RT22WV003A

2.19" TFT LCD module with 480x800 resolution for standard supply or customized display assemblies.

Format 2.19" TFT LCD module

Form Wide rectangle

Resolution 480x800

Interface MIPI

Compare catalog

RT22WV003A display module

Core specification

Engineering snapshot.

Model: RT22WV003A
Screen size: 2.19"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 480cd/㎡
Temperature: -10℃~60℃
Viewing direction: All o'clock
Outline dimension: 32.20(H)×54.10(V)×2.1(T)mm
Active area: 28.80(H)×48.00(V)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 1000
Backlight: 4LEDS
Pixel pitch: 480(H)RGB×800(V)
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 20pins
Logic voltage: 2.5V~3.3V
Power: 280mW

Product views

Front and back module views.

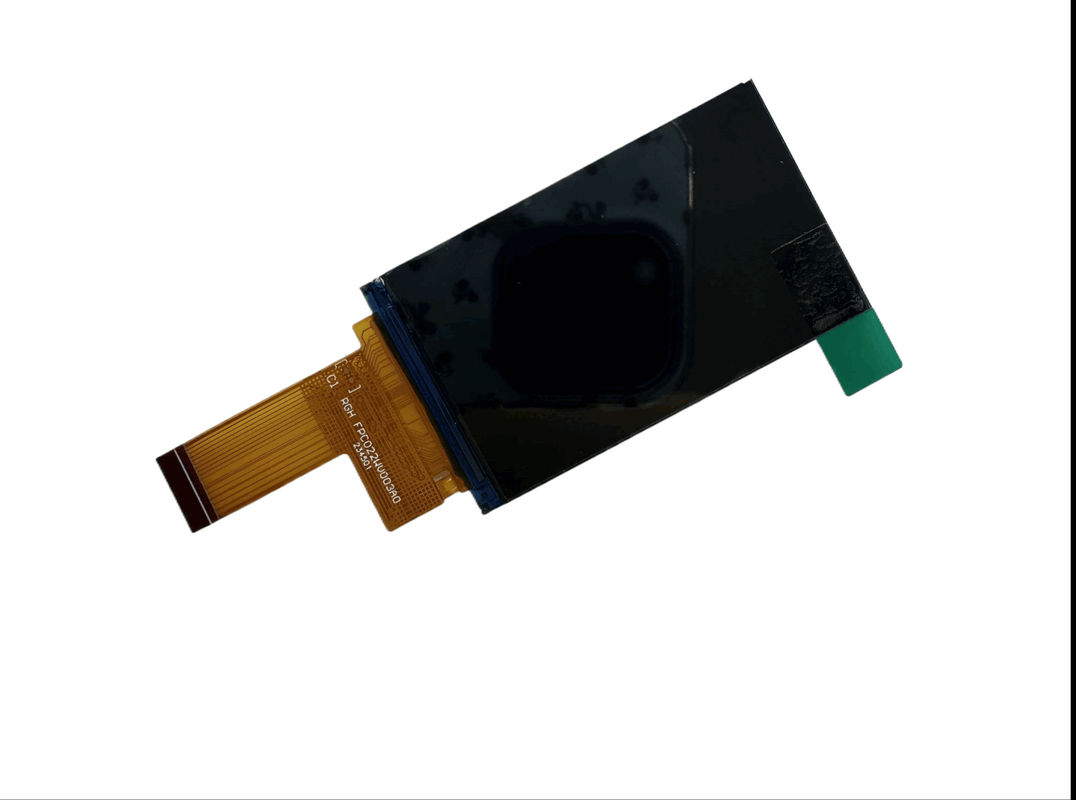

RT22WV003A Front view

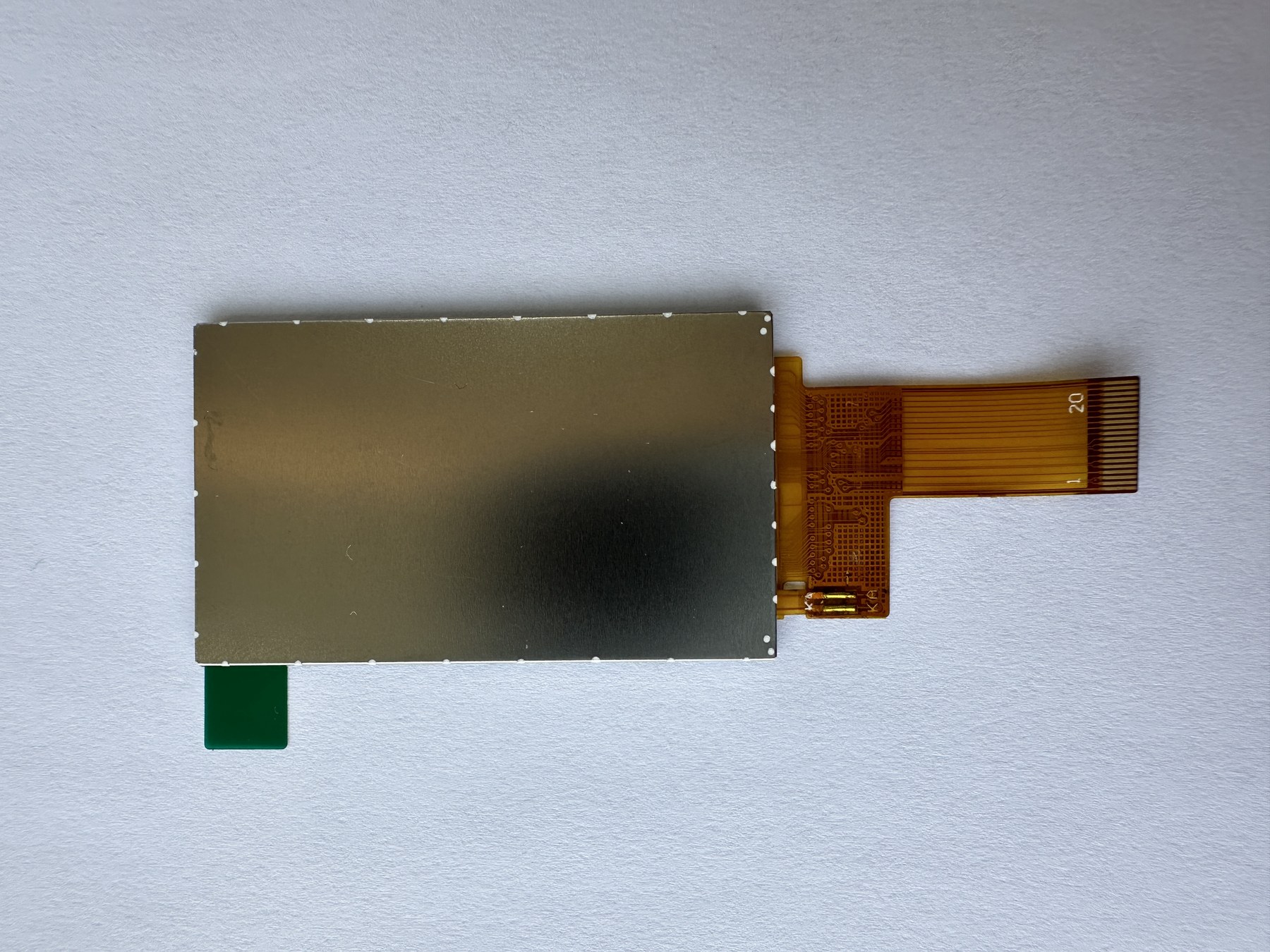

RT22WV003A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
