RT28HD001B

2.86" TFT LCD module with 376x960 resolution for standard supply or customized display assemblies.

Format 2.86" TFT LCD module

Form Wide rectangle

Resolution 376x960

Interface MIPI

Touch No

Compare catalog

RT28HD001B display module

Core specification

Engineering snapshot.

Model: RT28HD001B
Screen size: 2.86"
Display form: Wide rectangle
Resolution: 376x960
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 550cd/㎡
Touch: No
Temperature: -30℃~85℃
Viewing direction: All o'clock
Outline dimension: 31.20(H)×76.60(V)×2.15(T)mm
Active area: 26.508(H)×67.68(V)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 1500
Backlight: 4LEDS
Pixel pitch: 376(RGB)×960
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 12pins
Logic voltage: 2.5V~3.3V

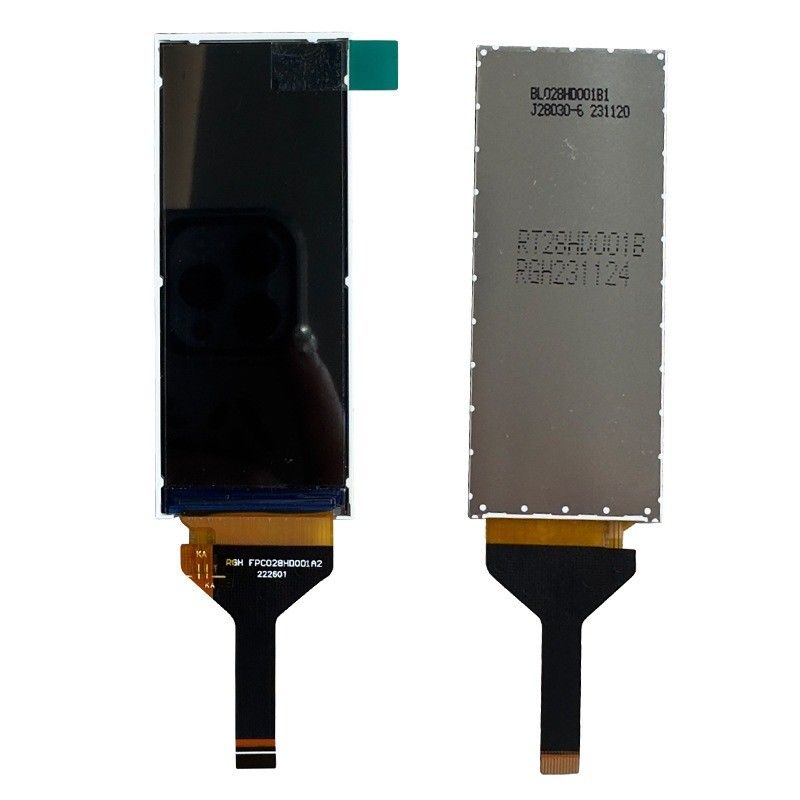

Product views

Front and back module views.

RT28HD001B Front view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
