2.8-3.5 inch

RT31WV002A

3.1" TFT LCD module with 480x800 resolution for standard supply or customized display assemblies.

Format 3.1" TFT LCD module

Form Wide rectangle

Resolution 480x800

Interface MIPI

Compare catalog

RT31WV002A display module

Core specification

Engineering snapshot.

Model: RT31WV002A
Screen size: 3.1"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 450cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 43.48(W)×74.72(H)×1.68(T)mm
Active area: 40.32(W)×67.20(H)mm
Driver IC: ST7701S
Response time: 35ms
Contrast ratio: 1000
Backlight: 6LEDS
Pixel pitch: 480(RGB)×800
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 24pins
Logic voltage: 2.5V~3.3V

Product views

Front and back module views.

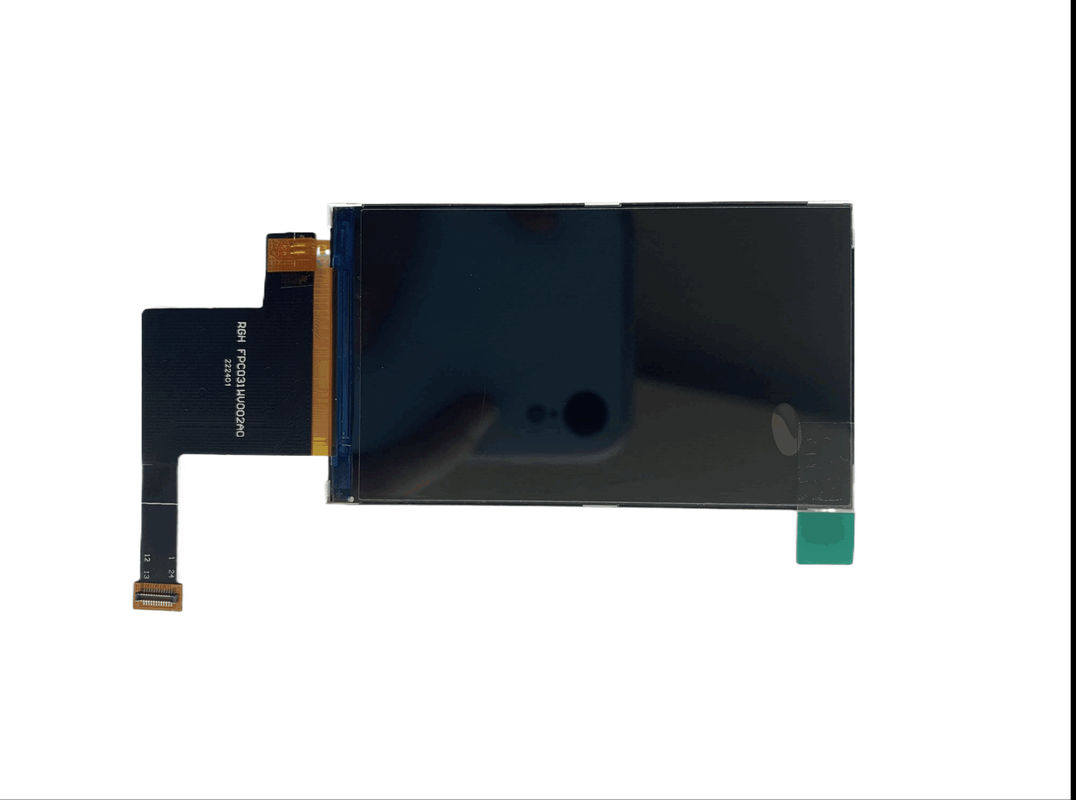

RT31WV002A Front view

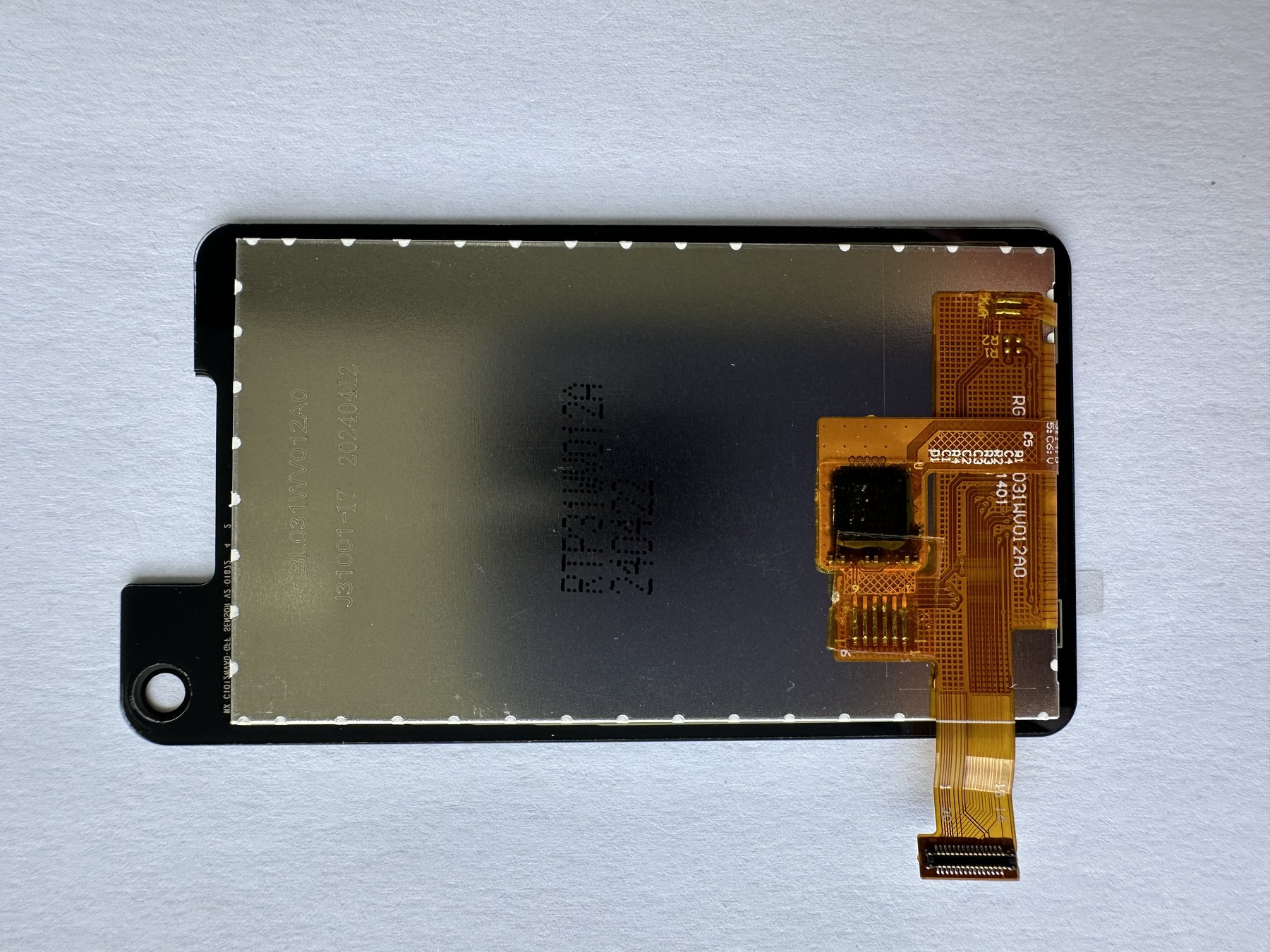

RT31WV002A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
