RT32HD005A

3.2" TFT LCD module with 1024x768 resolution for standard supply or customized display assemblies.

Format 3.2" TFT LCD module

Form Landscape rectangle

Resolution 1024x768

Interface MIPI

Compare catalog

RT32HD005A display module

Core specification

Engineering snapshot.

Model: RT32HD005A
Screen size: 3.2"
Display form: Landscape rectangle
Resolution: 1024x768
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 600 cd/m²
Temperature: -20~70℃ operating
Viewing direction: All
Outline dimension: 69.60 (H) X 55.50(V) X2.10(T)
Active area: 64.51(H) X 48.38(V)
Driver IC: JD9168
Backlight: 12LEDS
Logic voltage: 2.5V-3.3V

Product views

Front and back module views.

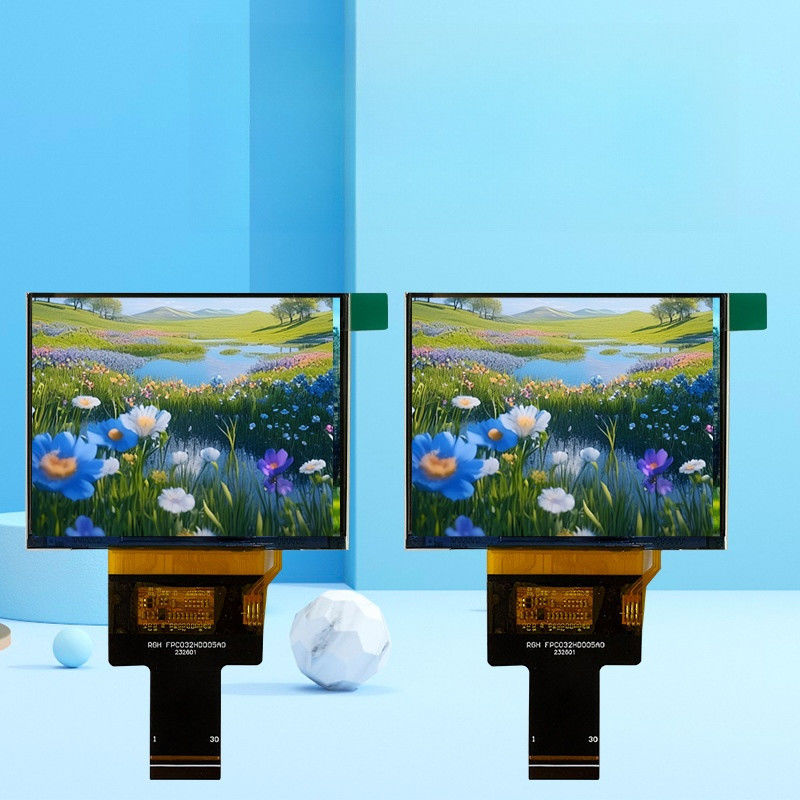

RT32HD005A Front view

RT32HD005A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
