RT32HD006A

3.17" TFT LCD module with 1024x768 resolution for standard supply or customized display assemblies.

Format 3.17" TFT LCD module

Form Landscape rectangle

Resolution 1024x768

Interface MIPI

Compare catalog

RT32HD006A display module

Core specification

Engineering snapshot.

Model: RT32HD006A
Screen size: 3.17"
Display form: Landscape rectangle
Resolution: 1024x768
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 600cd/㎡
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 69.60(H)×55.50(V)×2.10(T)mm
Active area: 64.51(H)×48.38(V)mm
Driver IC: JD9168
Response time: 20ms
Contrast ratio: 1200
Backlight: 12LEDS
Pixel pitch: 1024(RGB)×768
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.3V
Power: 840mW

Product views

Front and back module views.

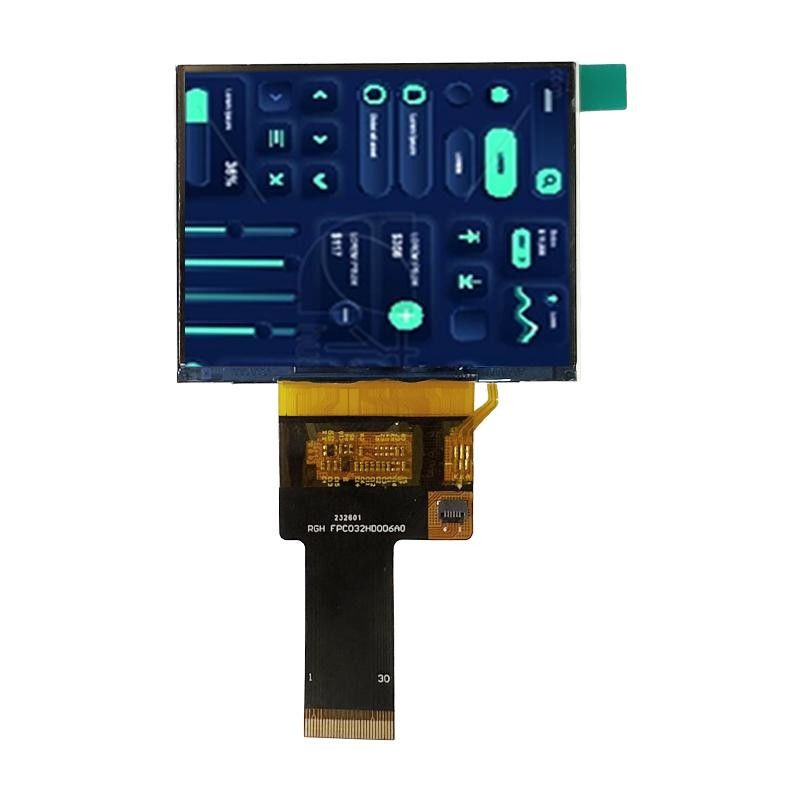

RT32HD006A Front view

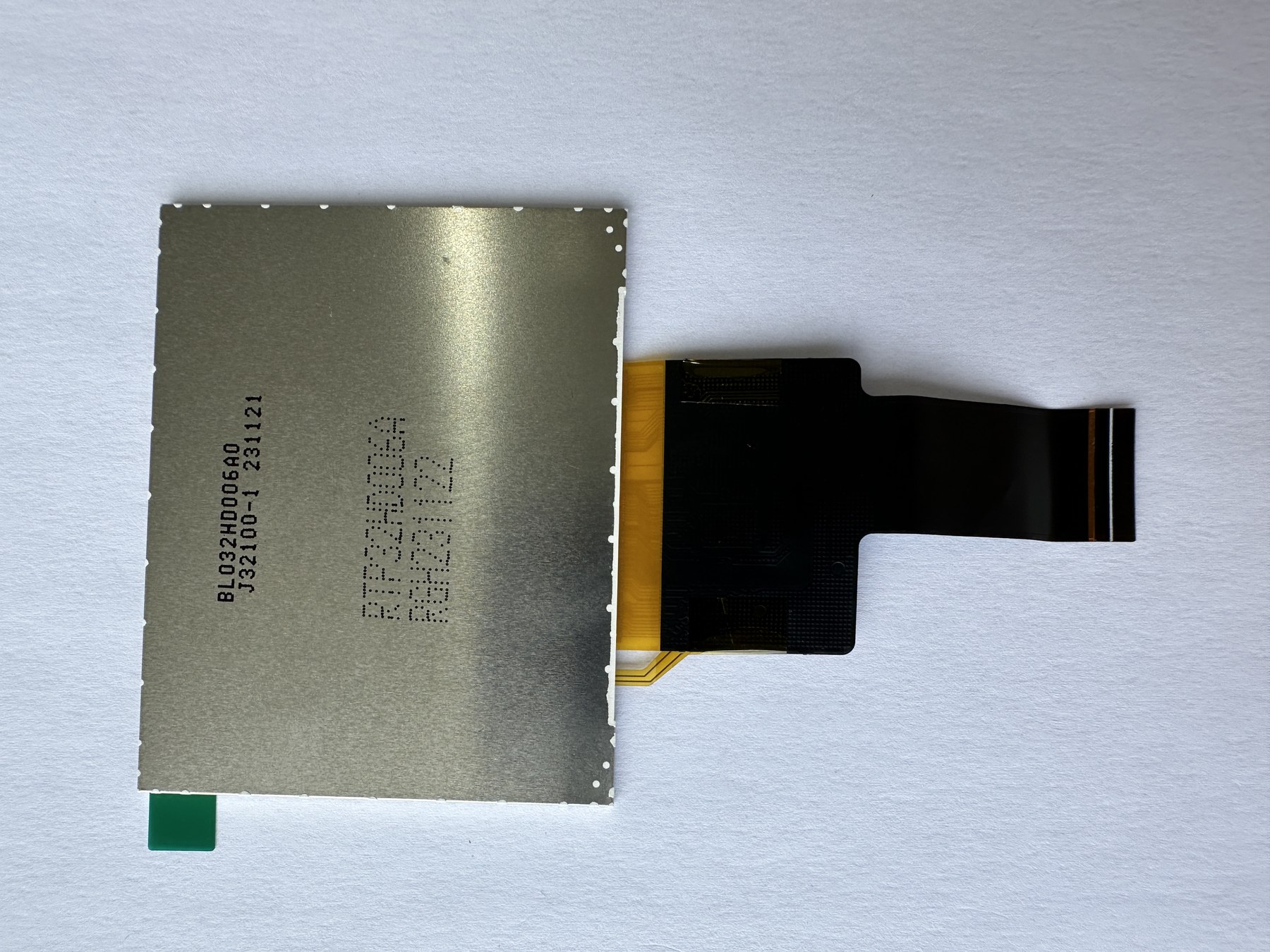

RT32HD006A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
