5.1-7.0 inch

RTO601001A

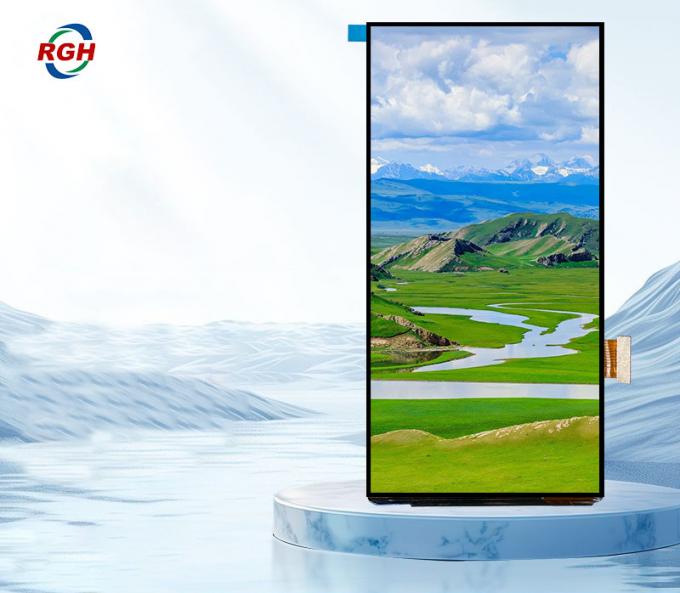

6.01" AMOLED module with 1080x2160 resolution for standard supply or customized display assemblies.

Format 6.01" AMOLED module

Form Wide rectangle

Resolution 1080x2160

Interface MIPI 4LANE

Touch Yes

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RTO601001A
Screen size: 6.01"
Display form: Wide rectangle
Resolution: 1080x2160
Display mode: AMOLED
Interface: MIPI 4LANE
Brightness: 500cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 70.066(W)×142.297(H)×0.78(D)mm
Active area: 68.256(W)×136.512(H)mm
Driver IC: CH13721C
Touch IC: FT3519
Pixel pitch: 1080(RGB)×2160
Pixel configuration: Rectangle
Display color: 16.7M
Pin count: 34pins
Logic voltage: 2.5V~3.6V

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
