RTO639001A

6.39" AMOLED module with 1080x2340 resolution for standard supply or customized display assemblies.

Format 6.39" AMOLED module

Form Wide rectangle

Resolution 1080x2340

Interface MIPI 4LANE

Touch Yes

Compare catalog

RTO639001A display module

Core specification

Engineering snapshot.

Model: RTO639001A
Screen size: 6.39"
Display form: Wide rectangle
Resolution: 1080x2340
Display mode: AMOLED
Interface: MIPI 4LANE
Brightness: 500cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 69.84(W)×150.42(H)×0.798(D)mm
Active area: 68.04(W)×147.42(H)mm
Driver IC: SD5207
Touch IC: FT3519
Pixel pitch: 1080(RGB)×2340
Pixel configuration: Rectangle
Display color: 16.7M
Pin count: 39pins
Logic voltage: 2.5V~3.6V

Product views

Front and back module views.

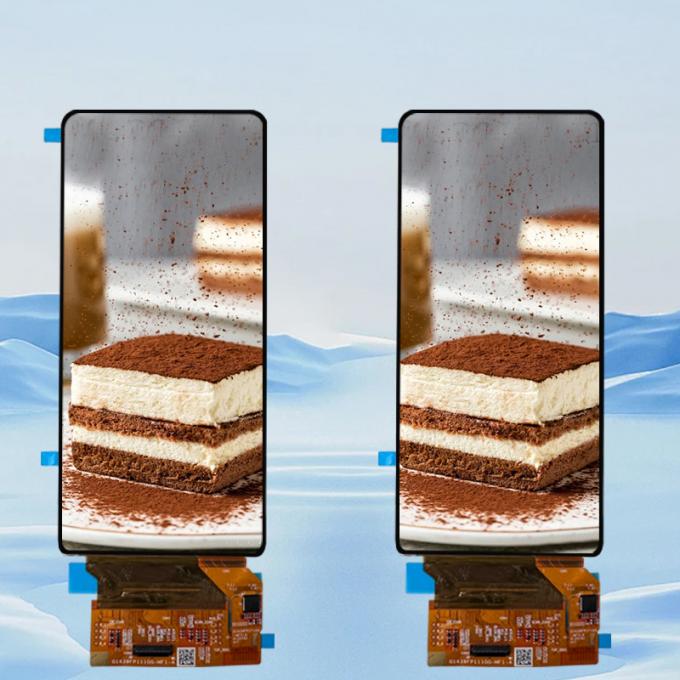

RTO639001A Front view

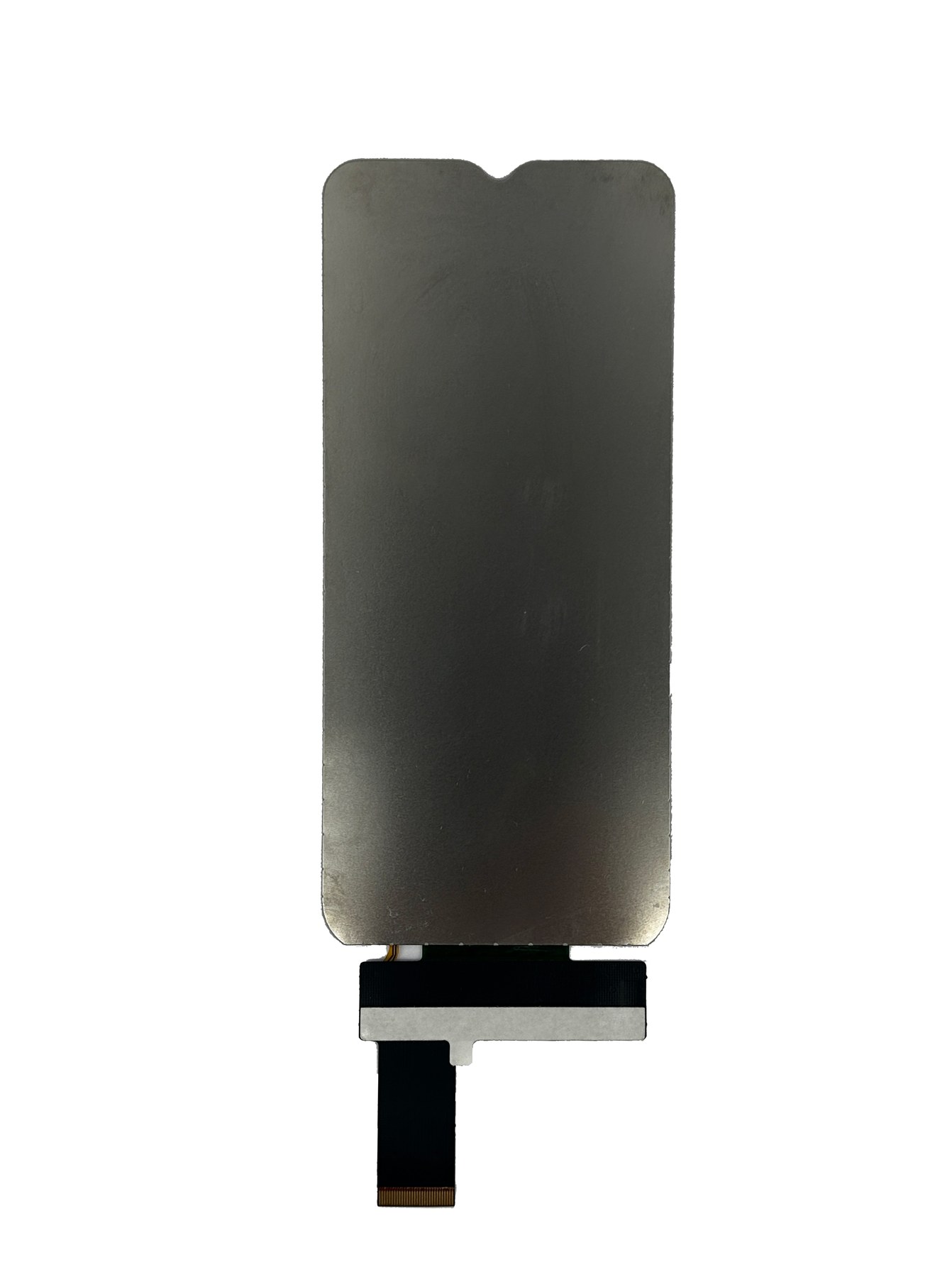

RTO639001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
