RTP31WV012A

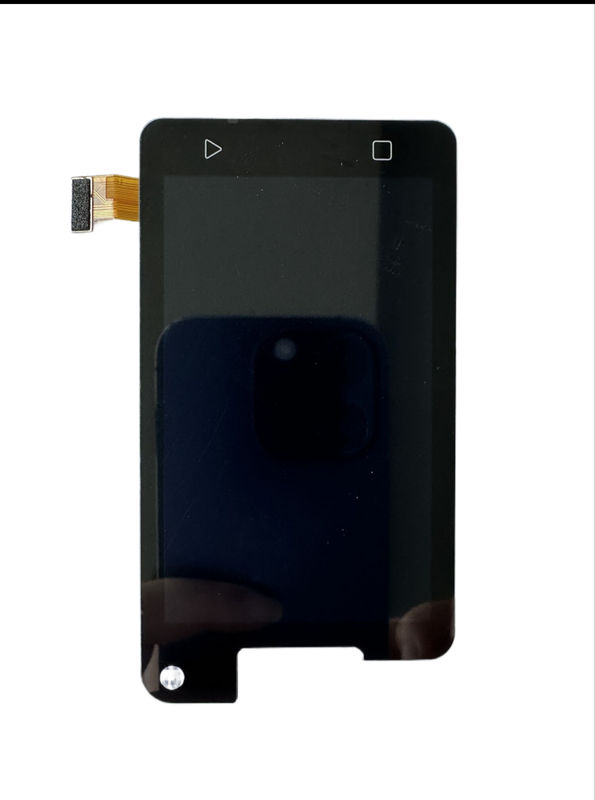

3.1" TFT LCD touch module with 480x800 resolution for standard supply or customized display assemblies.

Format 3.1" TFT LCD touch module

Form Wide rectangle

Resolution 480x800

Interface MIPI

Touch Yes

Compare catalog

Image unavailable

Core specification

Engineering snapshot.

Model: RTP31WV012A
Screen size: 3.1"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 500cd/㎡
Touch: Yes
Temperature: -10℃~60℃
Viewing direction: All o'clock
Outline dimension: 48(H)×88.4(V)×2.93(T)mm
Active area: 40.32(H)×67.2(V)mm
Driver IC: ST7701S
Touch IC: GT1151QM
Response time: 35ms
Contrast ratio: 1000
Backlight: 6LEDS
Pixel pitch: 480(RGB)×800
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.6V
Power: 420mW

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
