3.6-5.0 inch

RTP40WV077A

4" TFT LCD touch module with 480x800 resolution for standard supply or customized display assemblies.

Format 4" TFT LCD touch module

Form Wide rectangle

Resolution 480x800

Interface MIPI

Touch yes

Compare catalog

RTP40WV077A display module

Core specification

Engineering snapshot.

Model: RTP40WV077A
Screen size: 4"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 340cd/㎡
Touch: yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 64.14(H)×103.85(V)×3.63(T)mm
Active area: 51.84(H)×86.40(V)mm
Driver IC: ST7701S
Touch IC: GT911
Response time: 35ms
Contrast ratio: 800
Backlight: 8LEDs
Pixel pitch: 480(RGB)×800
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 28pins
Logic voltage: 2.5V~3.6V
Power: 560mW

Product views

Front and back module views.

RTP40WV077A Front view

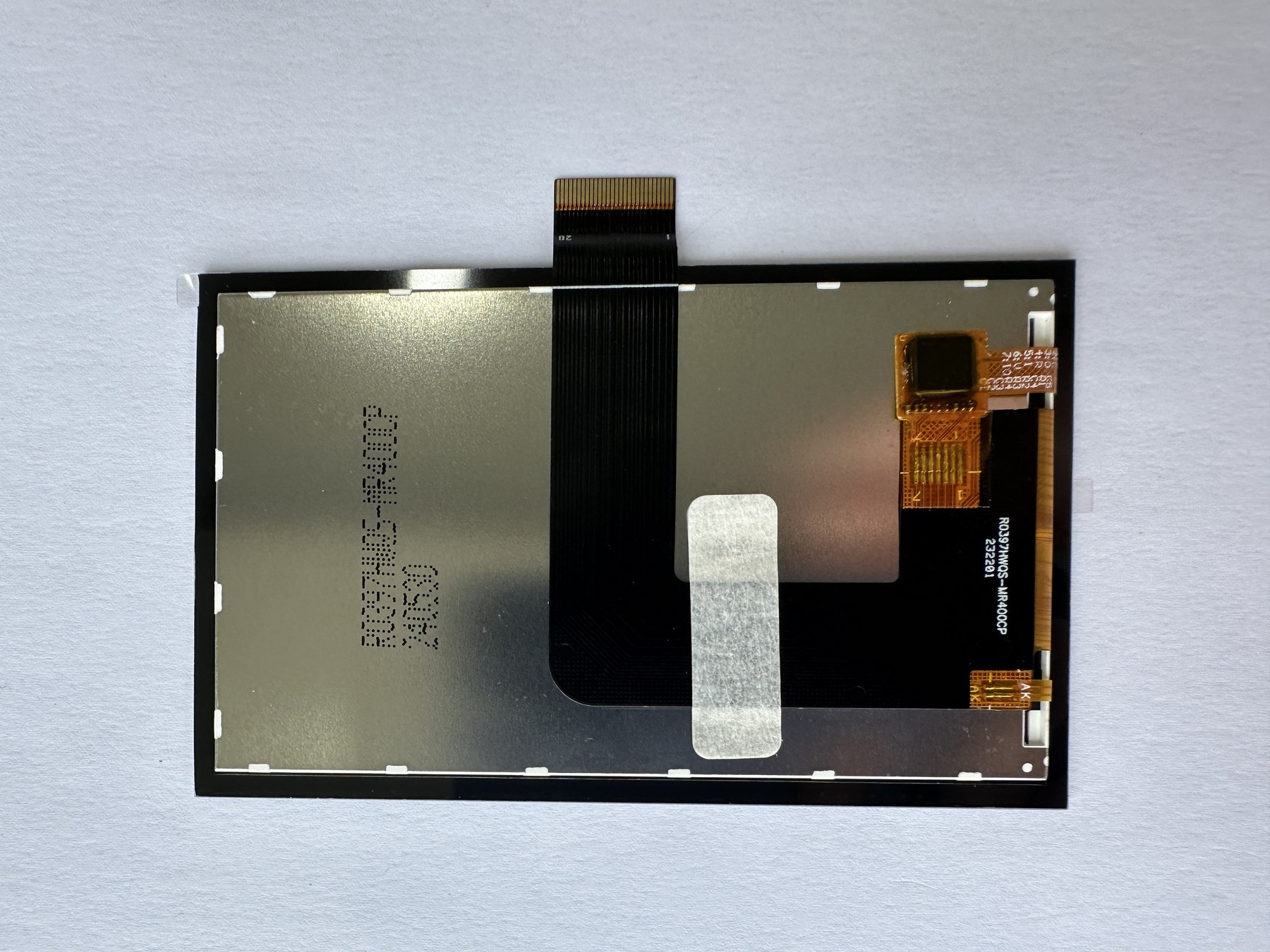

RTP40WV077A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
