2.8-3.5 inch

RTP34WV001A

3.4" TFT LCD touch module with 412x960 resolution for standard supply or customized display assemblies.

Format 3.4" TFT LCD touch module

Form Wide rectangle

Resolution 412x960

Interface MIPI

Touch Yes

Compare catalog

RTP34WV001A display module

Core specification

Engineering snapshot.

Model: RTP34WV001A
Screen size: 3.4"
Display form: Wide rectangle
Resolution: 412x960
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 480cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 41.10(H)×94.40(V)×3.3(T)mm
Active area: 33.99(H)×79.20(V)mm
Driver IC: ST7701S
Touch IC: GT911
Response time: 30ms
Contrast ratio: 1000
Backlight: LED
Pixel pitch: 412(RGB)×960
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.3V
Power: 420mW

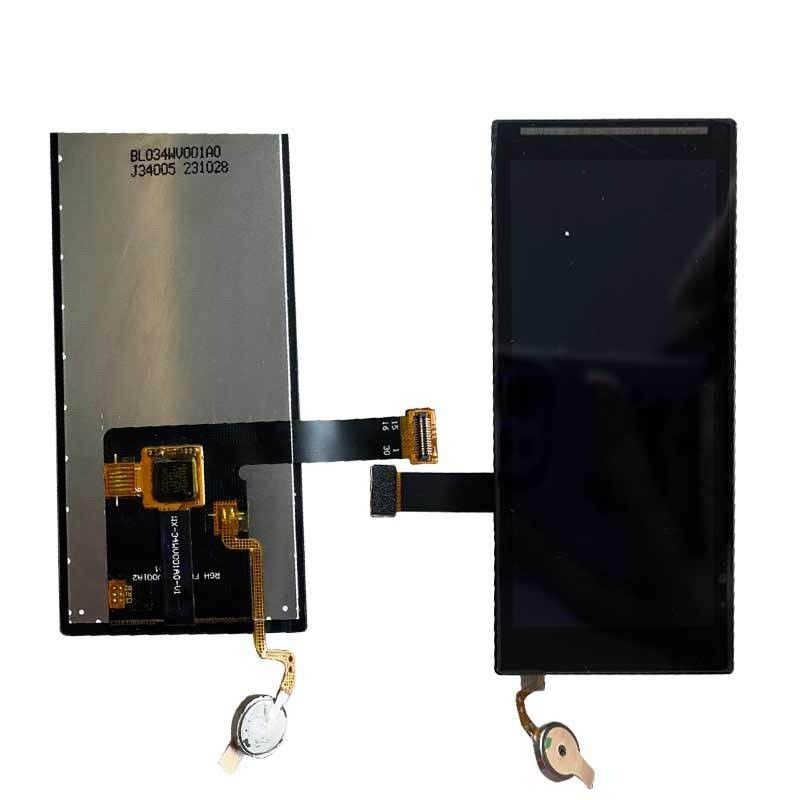

Product views

Front and back module views.

RTP34WV001A Front view

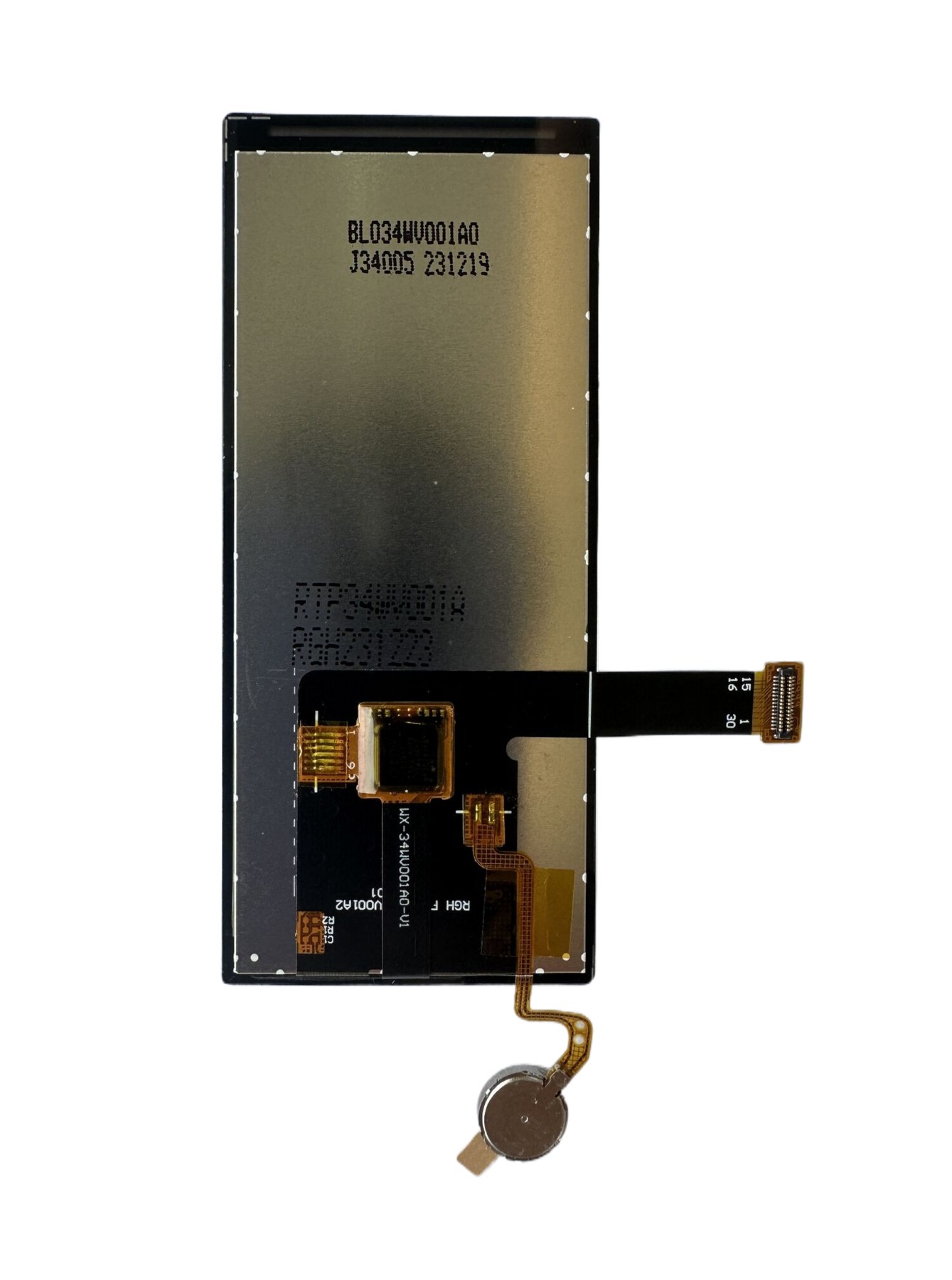

RTP34WV001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
