2.8-3.5 inch

RTP35WV019A

3.5" TFT LCD touch module with 480x800 resolution for standard supply or customized display assemblies.

Format 3.5" TFT LCD touch module

Form Wide rectangle

Resolution 480x800

Interface MIPI 2L

Touch Yes

Compare catalog

RTP35WV019A display module

Core specification

Engineering snapshot.

Model: RTP35WV019A
Screen size: 3.5"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI 2L
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 51.32(H)×87.01(V)×3.43(T)mm
Active area: 45.36(H)×75.6(V)mm
Driver IC: ST7701S
Touch IC: CST18858
Response time: 35 ms
Contrast ratio: 1000
Backlight: 6LEDS
Pixel pitch: 480(RGB)×800
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 20pins
Logic voltage: 2.5V~3.3V
Power: 420mW(Typ)

Product views

Front and back module views.

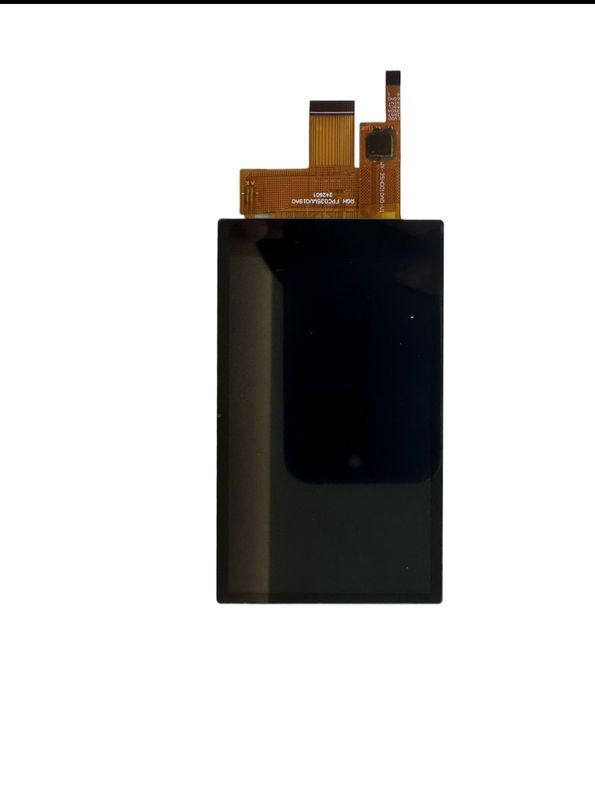

RTP35WV019A Front view

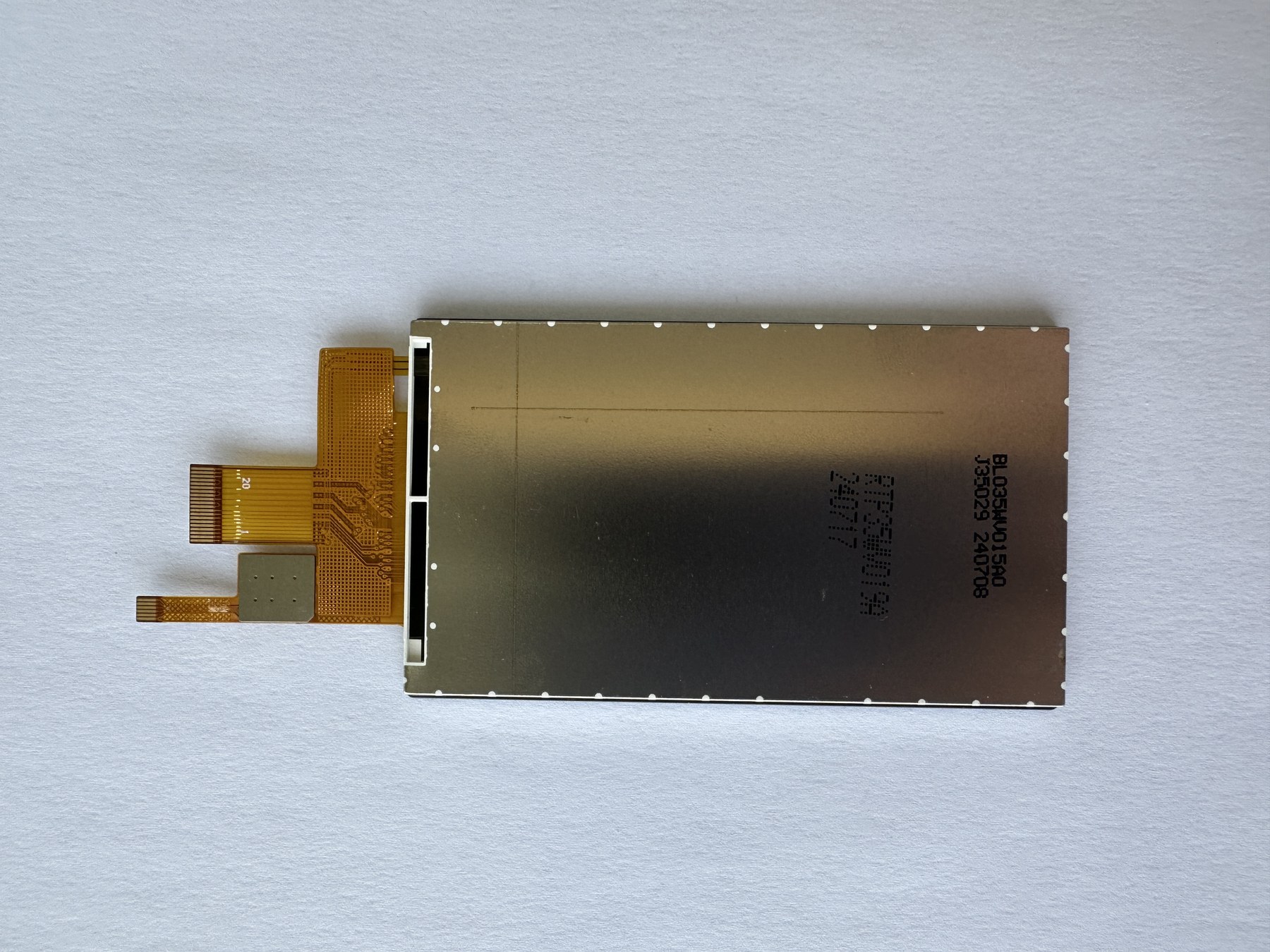

RTP35WV019A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
