3.6-5.0 inch

RTP40WV063A

4" TFT LCD touch module with 480x800 resolution for standard supply or customized display assemblies.

Format 4" TFT LCD touch module

Form Wide rectangle

Resolution 480x800

Interface MIPI

Touch yes

Compare catalog

RTP40WV063A display module

Core specification

Engineering snapshot.

Model: RTP40WV063A
Screen size: 4"
Display form: Wide rectangle
Resolution: 480x800
Display mode: Transmissive TFT
Interface: MIPI
Brightness: 400cd/㎡
Touch: yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 61.40(W)×114.00(H)×3.40(T)mm
Active area: 51.84(W)×86.40(H)mm
Driver IC: ST7701S
Touch IC: L58
Contrast ratio: 900
Backlight: 8LEDs
Pixel pitch: 480(RGB)×800
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 30pins
Logic voltage: 2.5V~3.0V

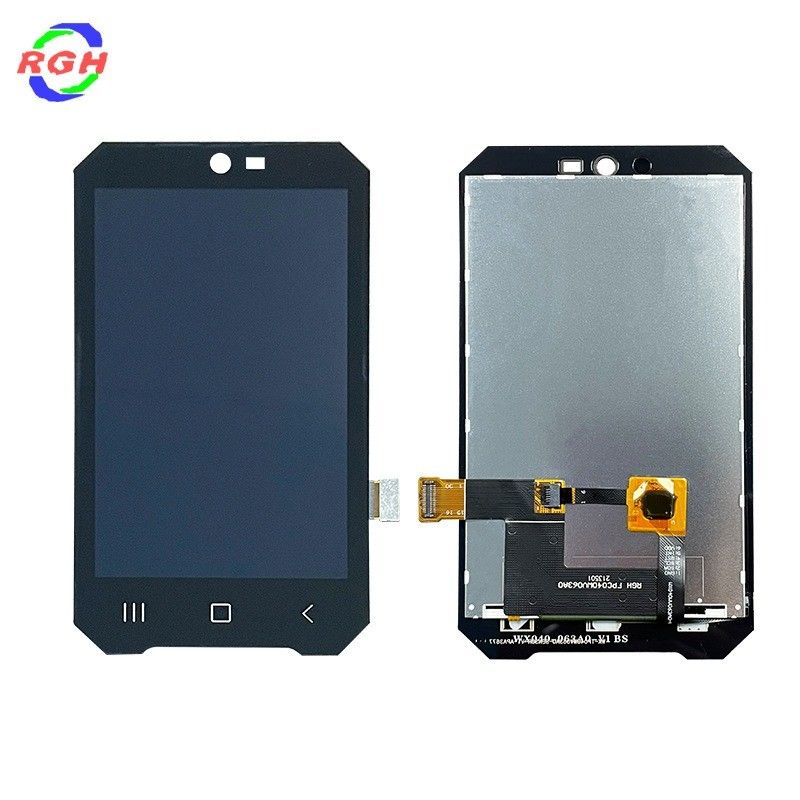

Product views

Front and back module views.

RTP40WV063A Front view

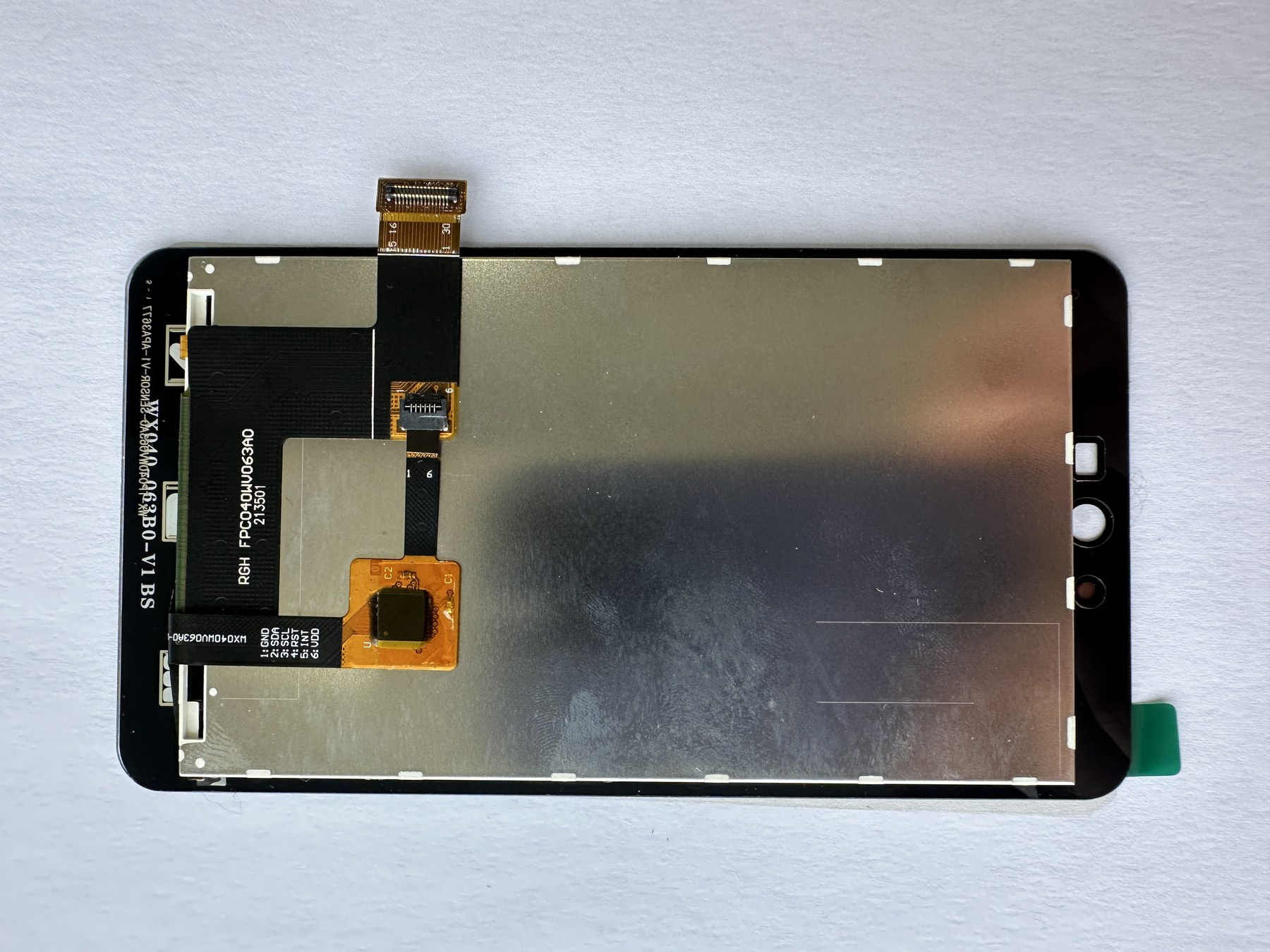

RTP40WV063A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
