RTP32HD012A

3.2" TFT LCD touch module with 1024x768 resolution for standard supply or customized display assemblies.

Format 3.2" TFT LCD touch module

Form Landscape rectangle

Resolution 1024x768

Interface SPI+RGB

Touch Yes

Compare catalog

RTP32HD012A display module

Core specification

Engineering snapshot.

Model: RTP32HD012A
Screen size: 3.2"
Display form: Landscape rectangle
Resolution: 1024x768
Display mode: Transmissive TFT
Interface: SPI+RGB
Brightness: 530cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 79.40(H)×61.10(V)×3.30(T)mm
Active area: 64.51(H)×48.38(V)mm
Driver IC: JD9168
Response time: ≤40ms
Contrast ratio: 1200
Backlight: 12LEDS
Pixel pitch: 1024(RGB)×768
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 2.5V~3.3V
Power: 840mW

Product views

Front and back module views.

RTP32HD012A Front view

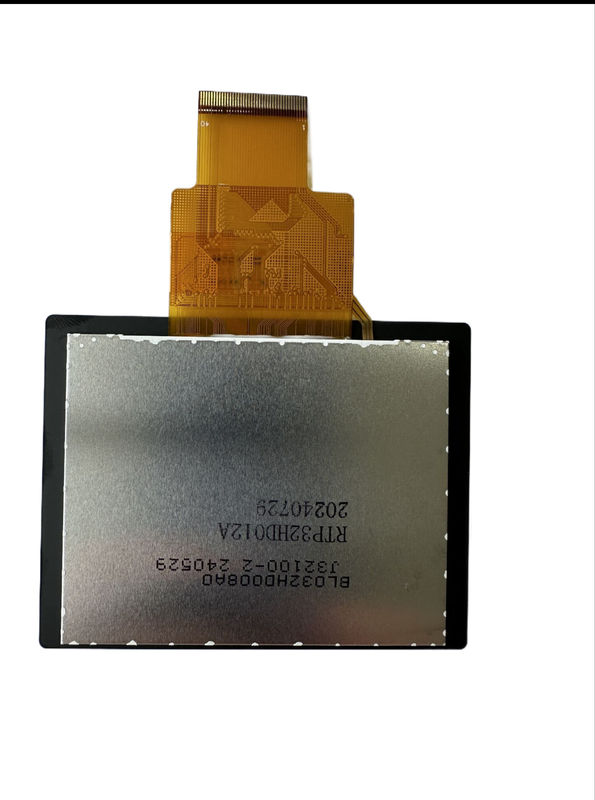

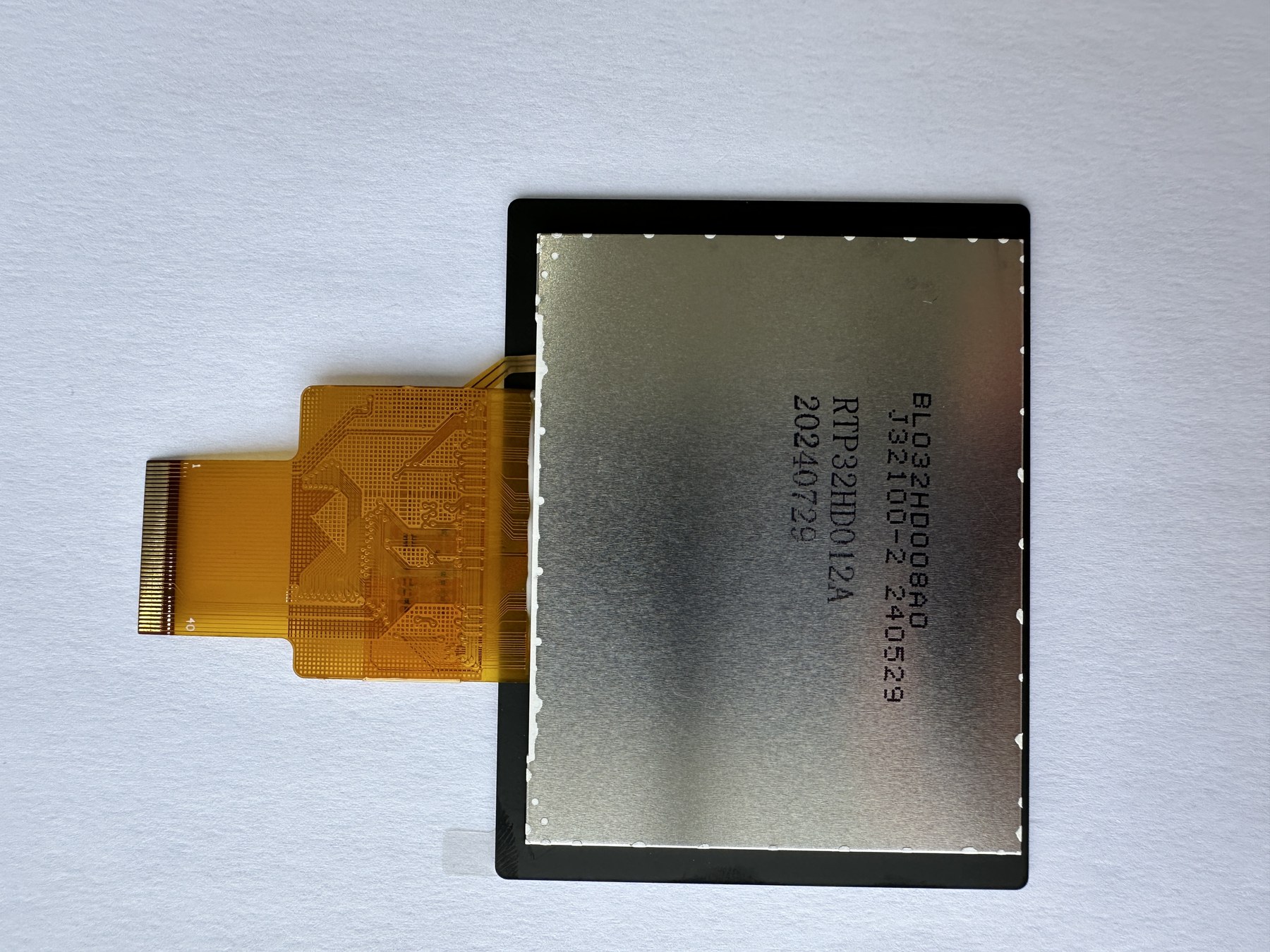

RTP32HD012A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
