2.8-3.5 inch

RTP35HD019A

3.5" TFT LCD touch module with 640x480 resolution for standard supply or customized display assemblies.

Format 3.5" TFT LCD touch module

Form Landscape rectangle

Resolution 640x480

Interface RGB

Touch Yes

Compare catalog

RTP35HD019A display module

Core specification

Engineering snapshot.

Model: RTP35HD019A
Screen size: 3.5"
Display form: Landscape rectangle
Resolution: 640x480
Display mode: Transmissive TFT
Interface: RGB
Brightness: 890cd/㎡
Touch: Yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 77.54(H)×64(V)×3.81(T)mm
Active area: 70.08(H)×52.56(V)mm
Driver IC: NV3052C
Response time: 25ms
Contrast ratio: 800
Backlight: 6LEDS
Pixel pitch: 640(RGB)×480
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 54pins
Logic voltage: 2.5V~3.6V
Power: 420mW

Product views

Front and back module views.

RTP35HD019A Front view

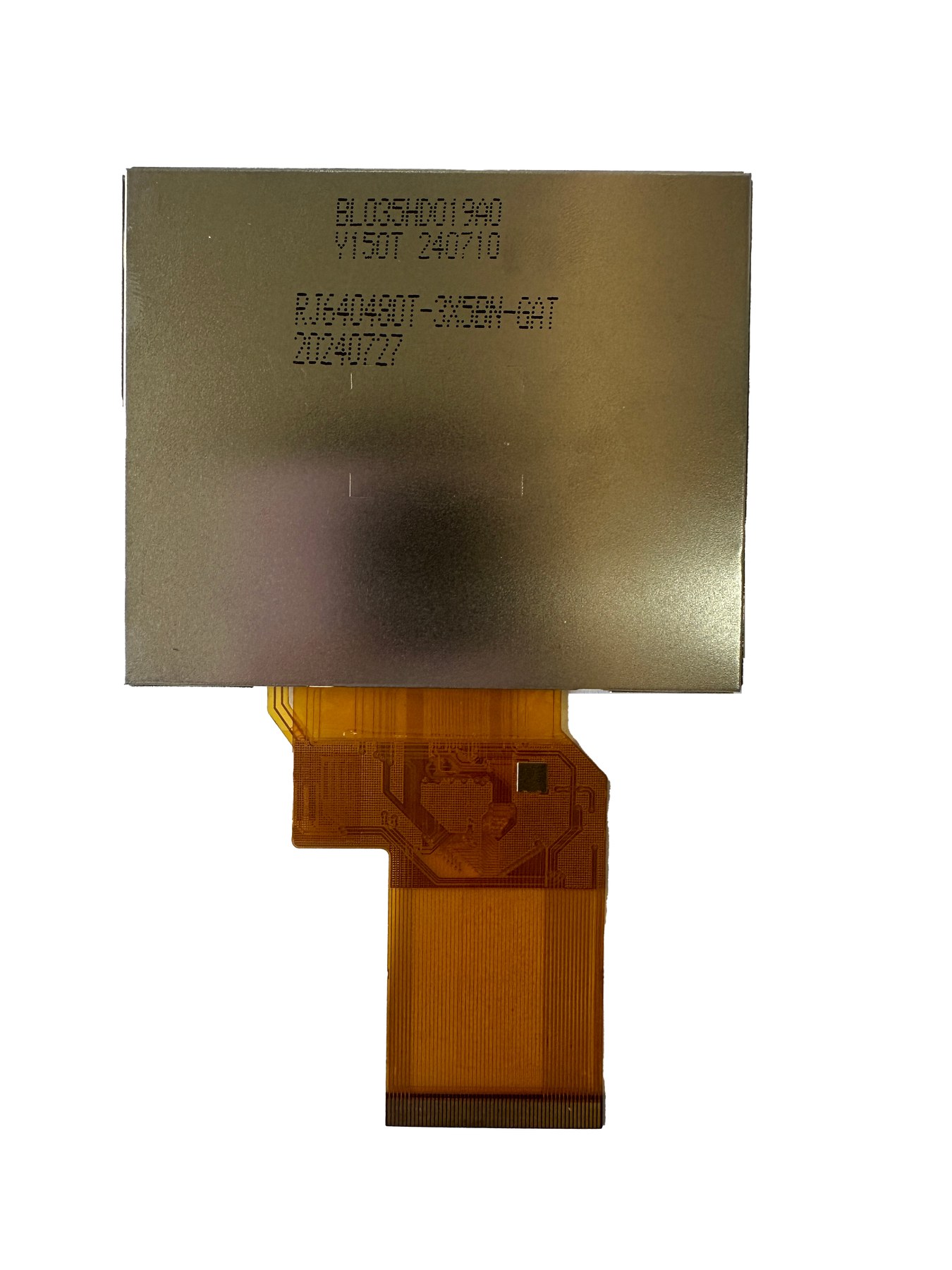

RTP35HD019A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
