RTP43WV001A

4.3" TFT LCD touch module with 800x480 resolution for standard supply or customized display assemblies.

Format 4.3" TFT LCD touch module

Form Wide rectangle

Resolution 800x480

Interface RGB

Touch yes

Compare catalog

RTP43WV001A display module

Core specification

Engineering snapshot.

Model: RTP43WV001A
Screen size: 4.3"
Display form: Wide rectangle
Resolution: 800x480
Display mode: Transmissive TFT
Interface: RGB
Brightness: 370cd/㎡
Touch: yes
Temperature: -20℃~70℃
Viewing direction: All o'clock
Outline dimension: 111.70(H)×78.80(V)×4.80(T)mm
Active area: 95.04(H)×53.86(V)mm
Driver IC: ST7262
Touch IC: CHSC5448
Response time: 30ms
Contrast ratio: 1200
Backlight: 7LEDs
Pixel pitch: 800(RGB)×480
Pixel configuration: Rectangle
Display color: 262K color
Pin count: 40pins
Logic voltage: 3.3V~3.6V
Power: 490mW

Product views

Front and back module views.

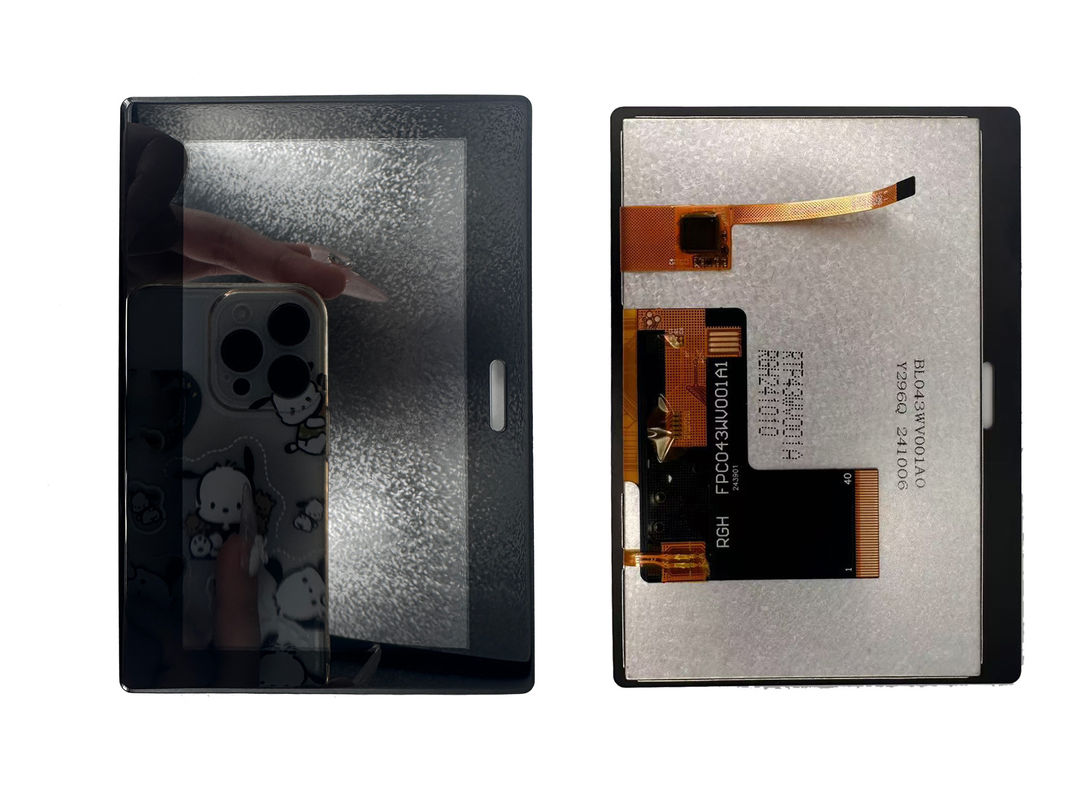

RTP43WV001A Front view

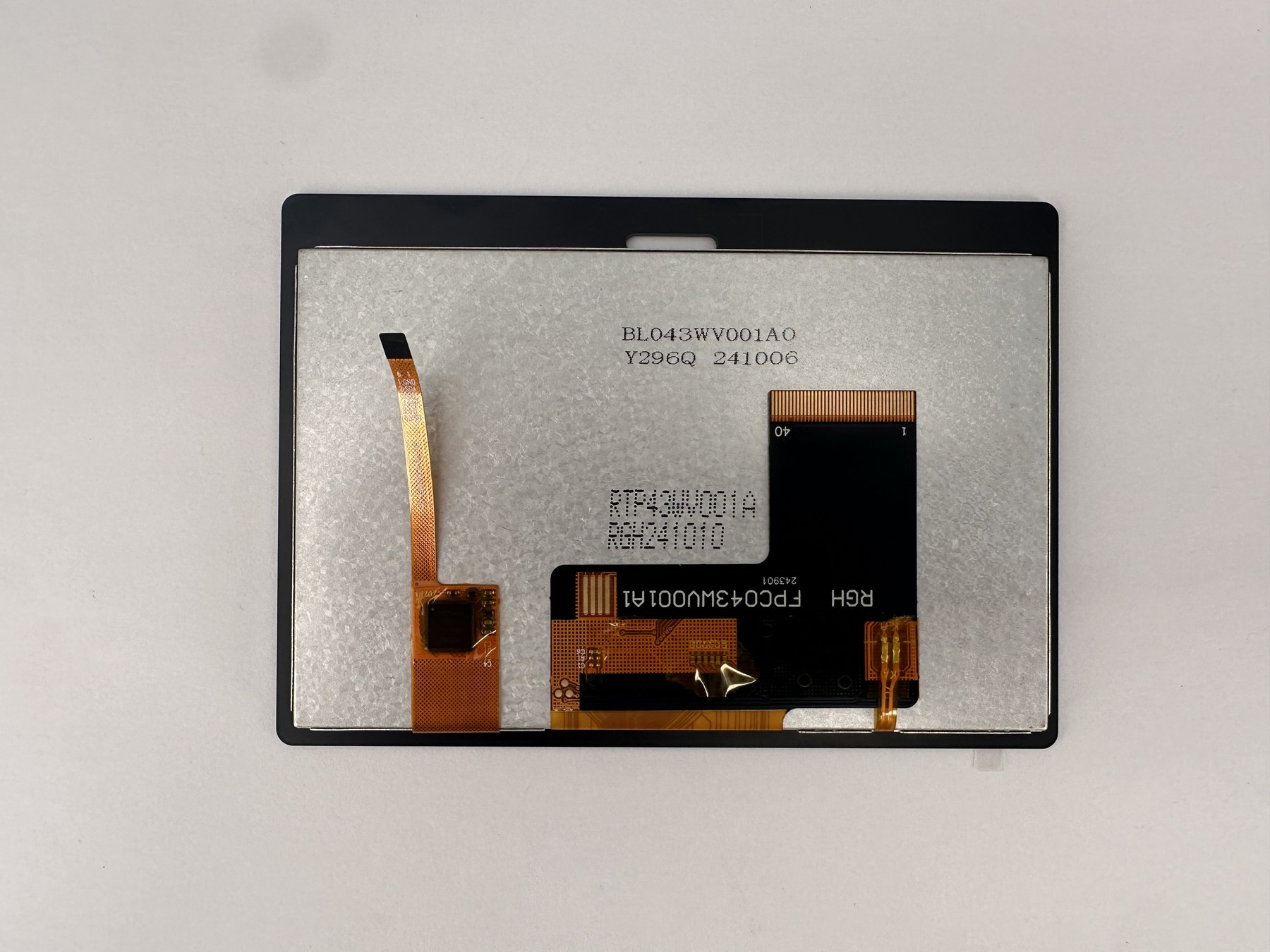

RTP43WV001A Back view

Commercial notes

Sampling, customization, and production support.

Samples: 3-5 days when in stock; mass production: 3-5 weeksLead time

Sample order available; mass-production MOQ commonly around 1KMOQ

FPC, cover lens, backlight, touch panel, logo, and bonding optionsCustomization
